Remove/Install Seat Ventilation Motors On Front Seat Backrest - AR91.30-P-1900LW
Model 238
With Code 401 (Climatised front seats)
Model 205
With Code 401 (Climatised front seats)
Model 213
With Code 401 (Climatised front seats)
Model 253, 293
With Code 401 (Climatised front seats)

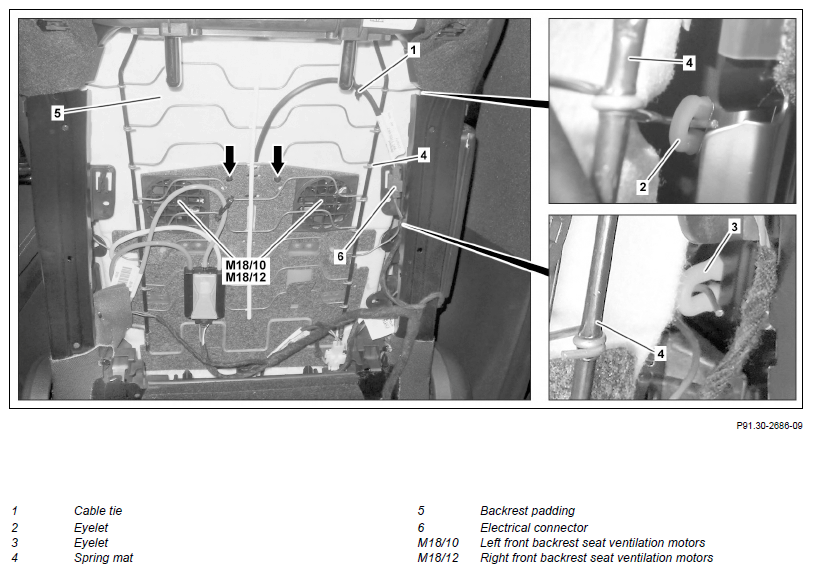

Fig 1: Seat Ventilation Motors On Front Seat Backrest Components Location - Model 238 With Code 401 (Shown On Model 205.0)
Shown on model 205.0
| Remove/install | |||
| 1 | Remove seat backrest trim at seat backrest. | Model 205.0/1/2 with code 401 (Climatised front seats) except code 555 (AMG Performance seats) Model 213 with code 401 (Climatised front seats) except code 555 (AMG Performance seats) Model 253 with code 401 (Climatised front seats) except code 555 (AMG Performance seats) Model 293 with code 401 (Climatised front seats) |
AR91.10-P-1912LW |
| Model 205.3/4 with code 401 (Climatised front seats) except code 555 (AMG Performance seats) Model 238 with code 401 (Climatised front seats) |
AR91.10-P-1912CLW | ||
| 2 | Remove cable tie (1). | ||
| 3 | Disconnect electrical connection (6). | ||
| 4 | Release plug housing of electrical connector (6) on seat backrest frame and remove. | ||
| 5 | Unhook spring mat (4) on one side from eyelets (2, 3). | ||

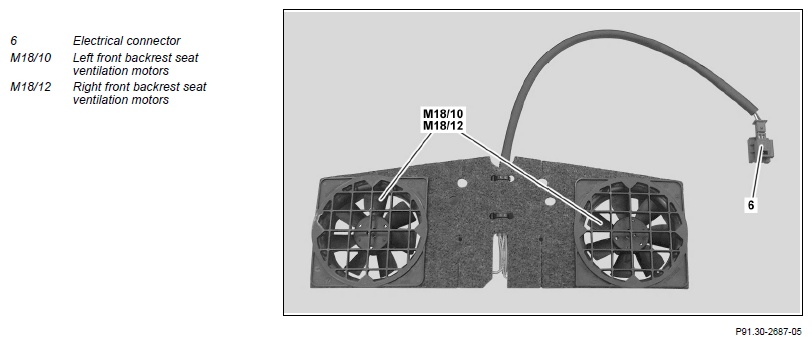

| 6 | Unclip left front seat backrest seat ventilation motors (M18/10) or right front seat backrest seat ventilation motors (M18/12) from seat backrest padding (5) (arrows). | ||
| 7 | Lift spring mat (4) and remove left front seat backrest seat ventilation motors (M18/10) or right front seat backrest seat ventilation motors (M18/12). | ||
| 8 | Install in the reverse order |
