Remove/Install Seat Side Bolster For Backrest In Rear - AR91.12-P-1711LWR

Model 205.4

Model 238.4

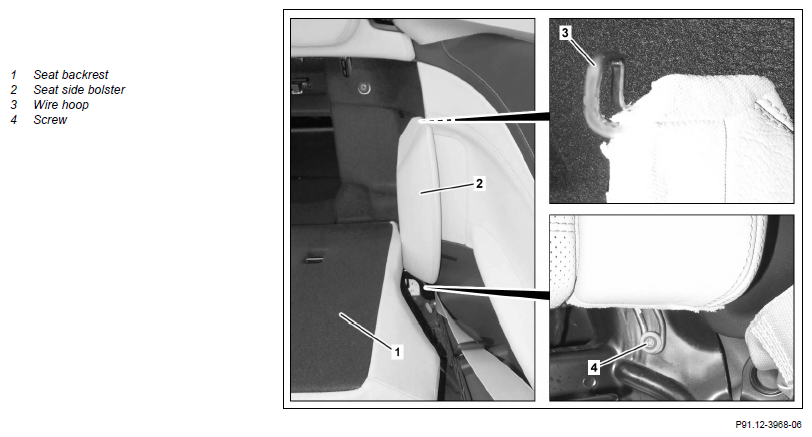

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion in rear	Model 205.4 with code 248 (Rear seat with integrated child seat) Model 205.4 with code P10 (Taxi package Germany)	AR91.12-P-1020LWA
		Model 205.4 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 238.4	AR91.12-P-1020LW
2	Release backrest (1) and fold forward
3	Hang seat belt to one side
4	Unscrew bolt (4)
5	Push backrest (1) as far down as possible, extend seat side bolster (2) at bottom and unhook from wire bracket (3) at top	: Pay attention to correct seating of the seat side bolster (2).
6	Install in the reverse order
