Remove/Install Seat Adjustment Motor For Seat Height Adjustment - AR91.29-P-0007LW

Model 205, 213, 238, 253, 293

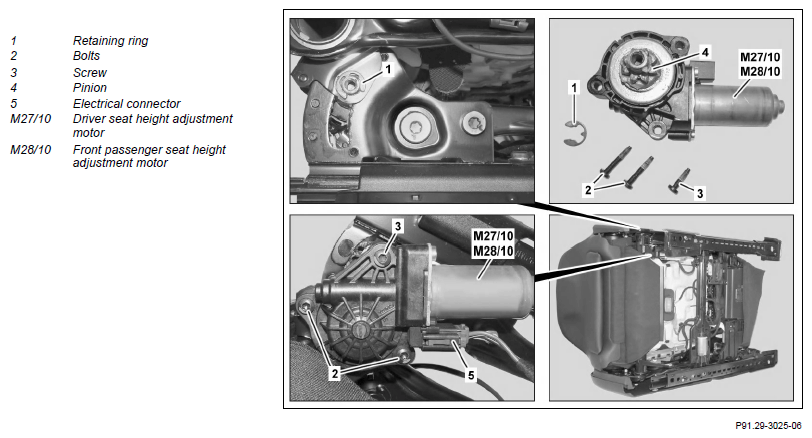

Fig 1: Seat Adjustment Motor For Seat Height Adjustment Components Location - Model 238

G15379395

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove front seat and place to one side on a suitable mat.	Model 205.4	AR91.10-P-1000LWR
		Model 205 (except 205.4), 213, 238, 253, 293	AR91.10-P-1000LW
2	Disconnect electrical connector (5).
3	Remove retaining ring (1).	: Check retaining ring (1). If there is a problem, ↓ Replace retaining ring (1).
4	Remove screw (3).	Note left-hand thread of screw/bolt (3). Bolt (3) is shorter than the bolts (2). : Replace screw/bolt(3).
		Bolt, electric motor for seat height adjustment to seat adjustment unit	*BA91.10-P-1005-01T
5	Unscrew bolts (2).	: Replace screw/bolts (2).
		Bolt, electric motor for seat height adjustment to seat adjustment unit	*BA91.10-P-1005-01T
6	Remove seat adjustment motor for seat height adjustment (M27/10, M28/10).
7	Install in the reverse order

FRONT SEATS

Number	Designation		Model 205	Model 213
BA91.10-P-1005-01T	Bolt, electric motor for seat height adjustment to seat adjustment unit	Nm	4	4

FRONT SEATS

Number	Designation		Model 238	Model 253
BA91.10-P-1005-01T	Bolt, electric motor for seat height adjustment to seat adjustment unit	Nm	4	4

FRONT SEATS

Number	Designation		Model 293
BA91.10-P-1005-01T	Bolt, electric motor for seat height adjustment to seat adjustment unit	Nm	4
