Remove/Install Perfume Generator - AR83.40-P-0200LWO
Model 238
With Code P21 (Air quality package)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove panel under passenger-side instrument panel | AR68.10-P-1502LWE | |

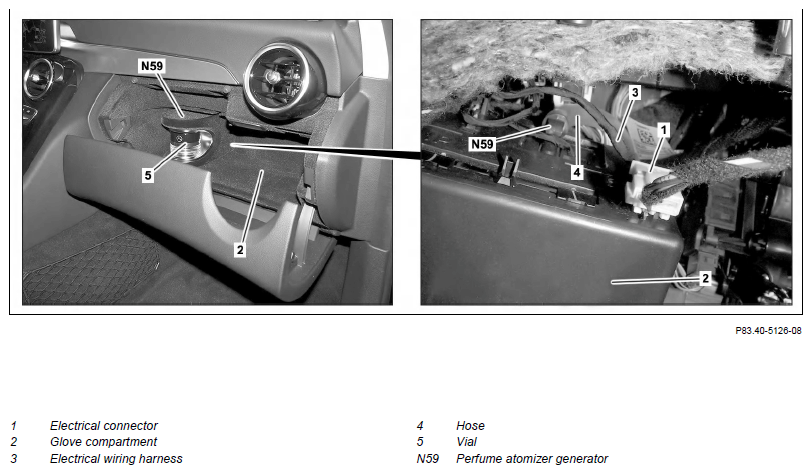

| 2 | Disconnect electrical connector (1) from glove compartment (2) and expose electrical wiring harness (3) | ||
| 3 | Disconnect electrical connection (1) | ||
| 4 | Unplug hose (4) from perfume atomizer alternator (N59) | ||
| 5 | Open flap on glove compartment (2) | ||
| 6 | Remove vial (5) | ||

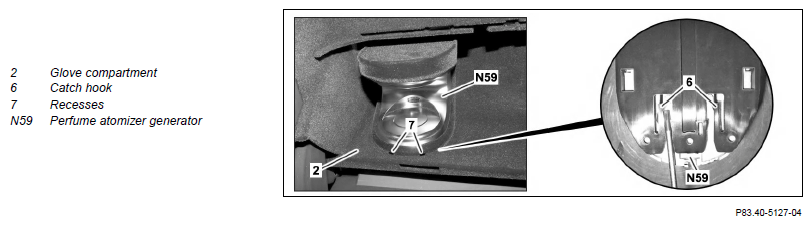

| 7 | Release catch hooks (6) by inserting an appropriate tool through cutouts (7) | ||
| 8 | Remove perfume atomizer alternator (N59) | ||
| 9 | Install in the reverse order |
