Remove/Install Left Side Air Vent - AR83.10-P-4501LWO

Model 238

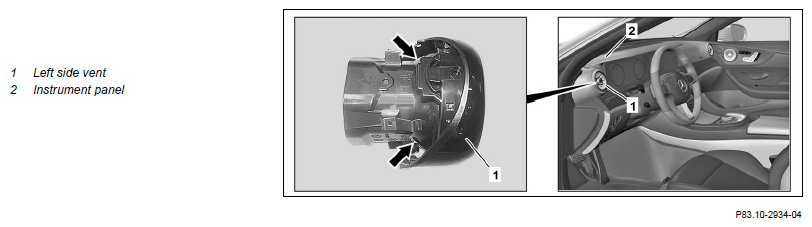

Shown On Model 238.### 1#

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Adjust the steering column backwards and downwards into its final position	Model 238.### 1#
2	Insert the extraction hooks into the side notches (arrows) of left side air vent (1) and pull left side air vent (1) out of the instrument panel (2)	: Make sure that "TOP" marking on left side air vent (1) is pointing upwards. Extraction hook	Fig 1
3	Install in the reverse order

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
