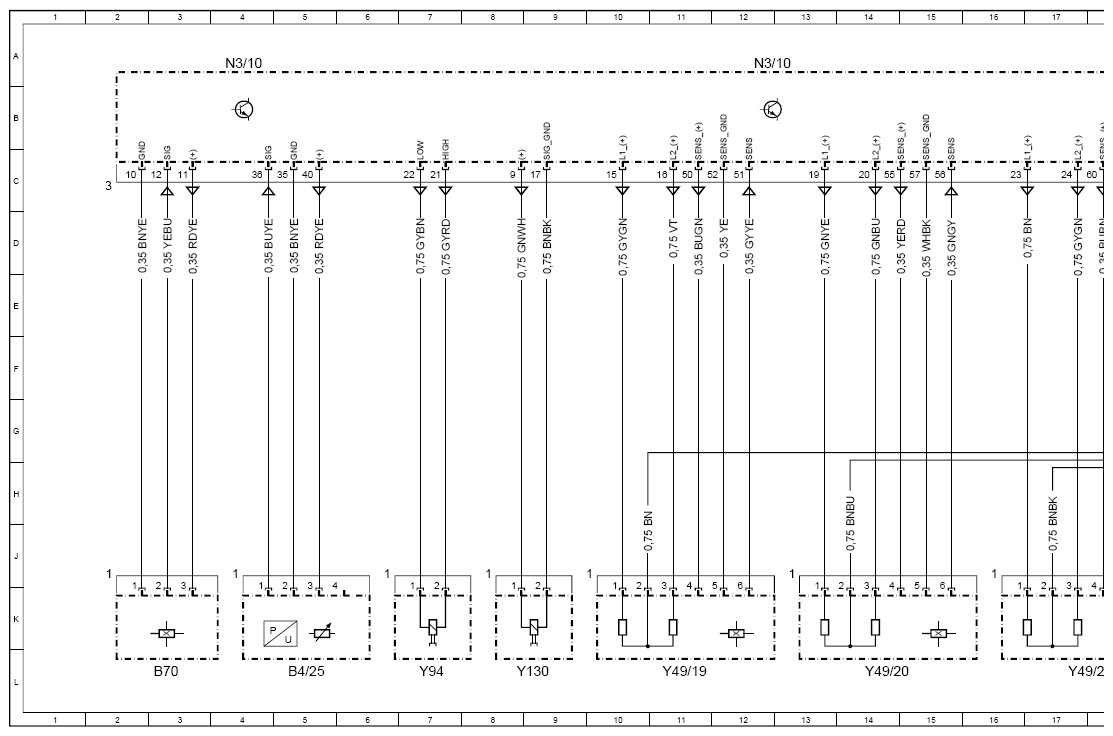

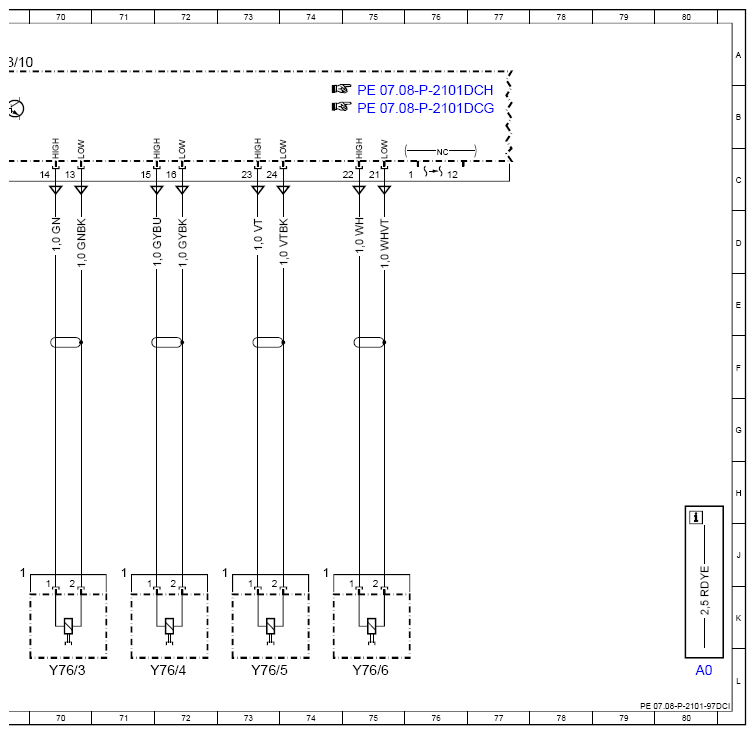

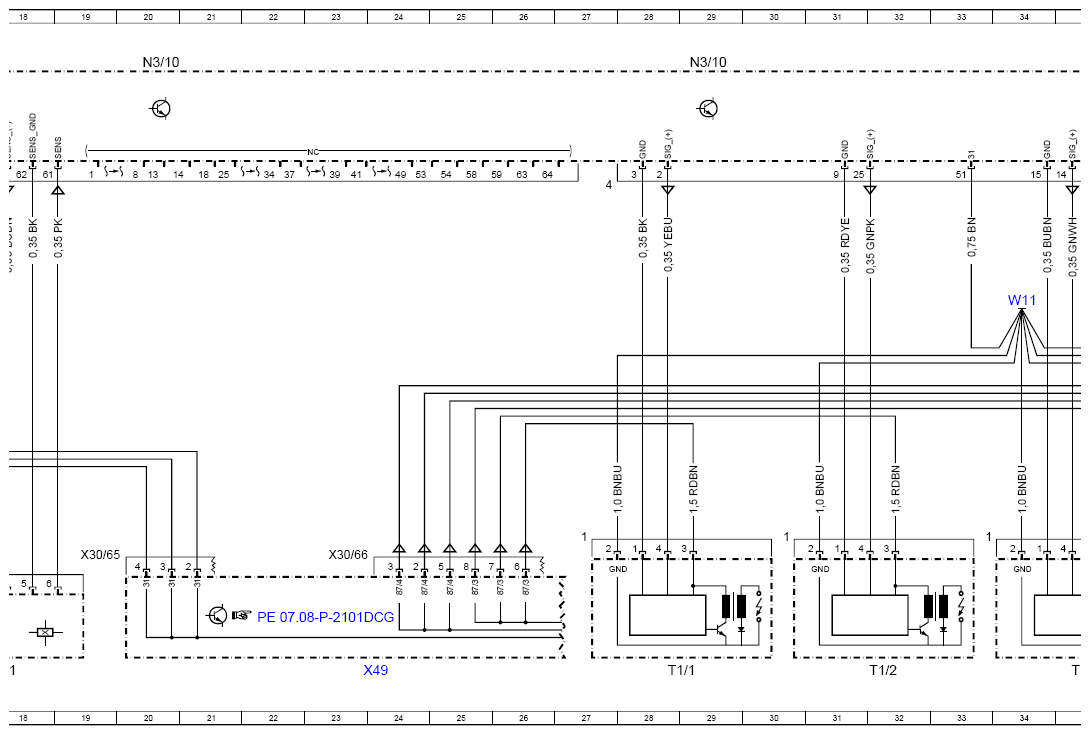

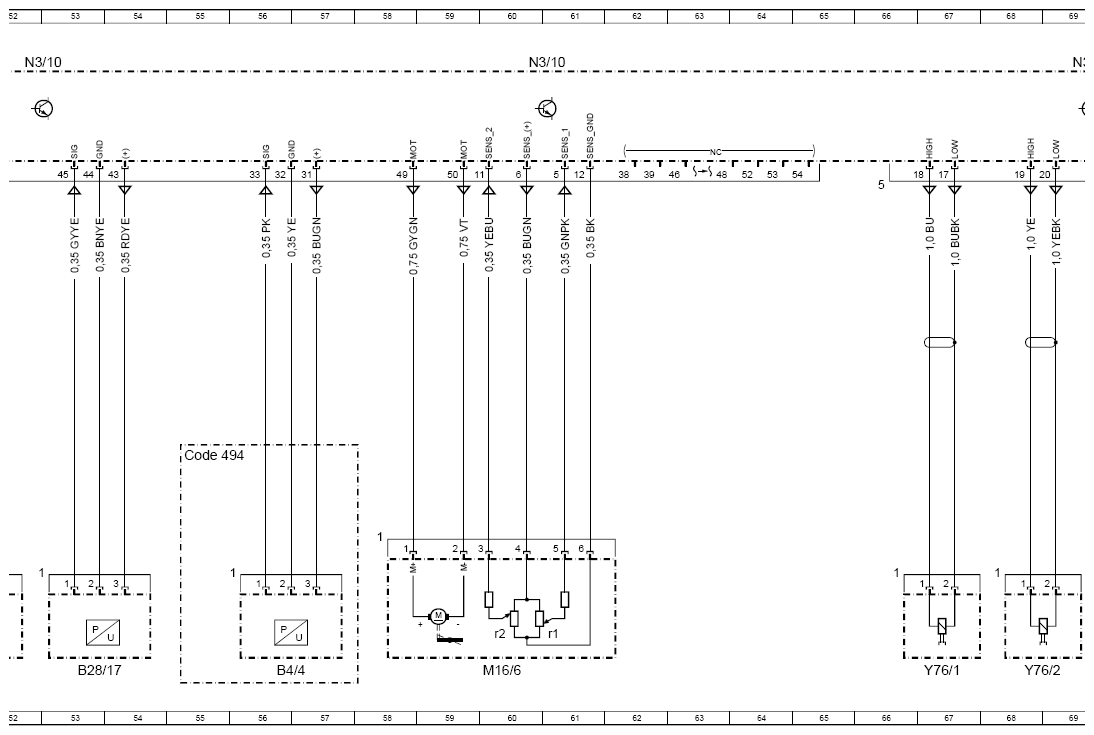

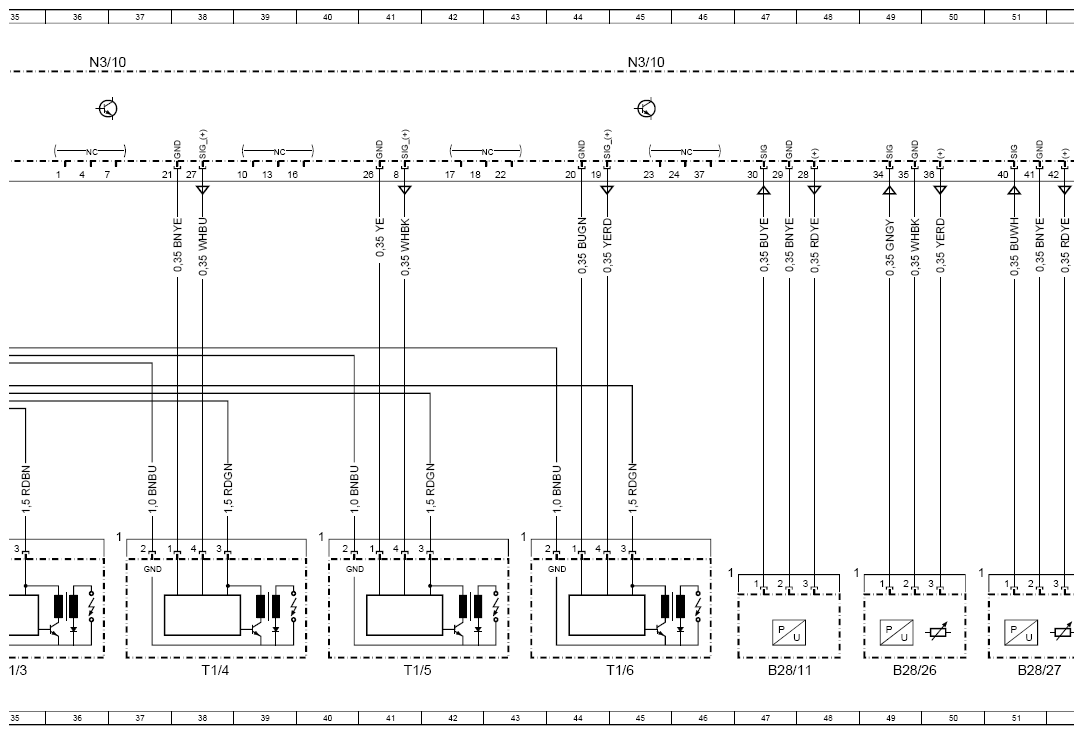

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97DCI
Engine 256.9 in model 238 up to model year 2021 Control unit N3/10, plugs 3, 4, 5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| B28/11 | Pressure sensor downstream of air filter | 47L |
| B28/17 | Pressure and temperature sensor downstream of exhaust gas turbocharger | 53L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 49L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 51L |
| B4/25 | Fuel pressure and temperature sensor | 5L |
| B4/4 | Purging pressure sensor | 56L |
| B70 | Crankshaft Hall sensor | 3L |
| Code 494 | USA version | 55G |
| M16/6 | Throttle valve actuator | 60L |
| M16/6r1 | Actual value potentiometer 1 | 61K |
| M16/6r2 | Actual value potentiometer 2 | 60K |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 29A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 45A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 69A |
| T1/1 | Cylinder 1 ignition coil | 28L |
| T1/2 | Cylinder 2 ignition coil | 32L |
| T1/3 | Cylinder 3 ignition coil | 35L |
| T1/4 | Cylinder 4 ignition coil | 38L |
| T1/5 | Cylinder 5 ignition coil | 41L |
| T1/6 | Cylinder 6 ignition coil | 45L |
| W11 | Combustion engine ground point | 34E |
| X49 | Potential distributor | 24L |
| Y130 | Engine oil pump valve | 9L |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 11L |
| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 14L |
| Y49/21 | Cylinder 5 and 6 intake CAMTRONIC actuator | 17L |
| Y76/1 | Cylinder 1 fuel injector | 67L |
| Y76/2 | Cylinder 2 fuel injector | 68L |
| Y76/3 | Cylinder 3 fuel injector | 70L |
| Y76/4 | Cylinder 4 fuel injector | 72L |
| Y76/5 | Cylinder 5 fuel injector | 73L |
| Y76/6 | Cylinder 6 fuel injector | 75L |
| Y94 | Quantity control valve | 7L |
