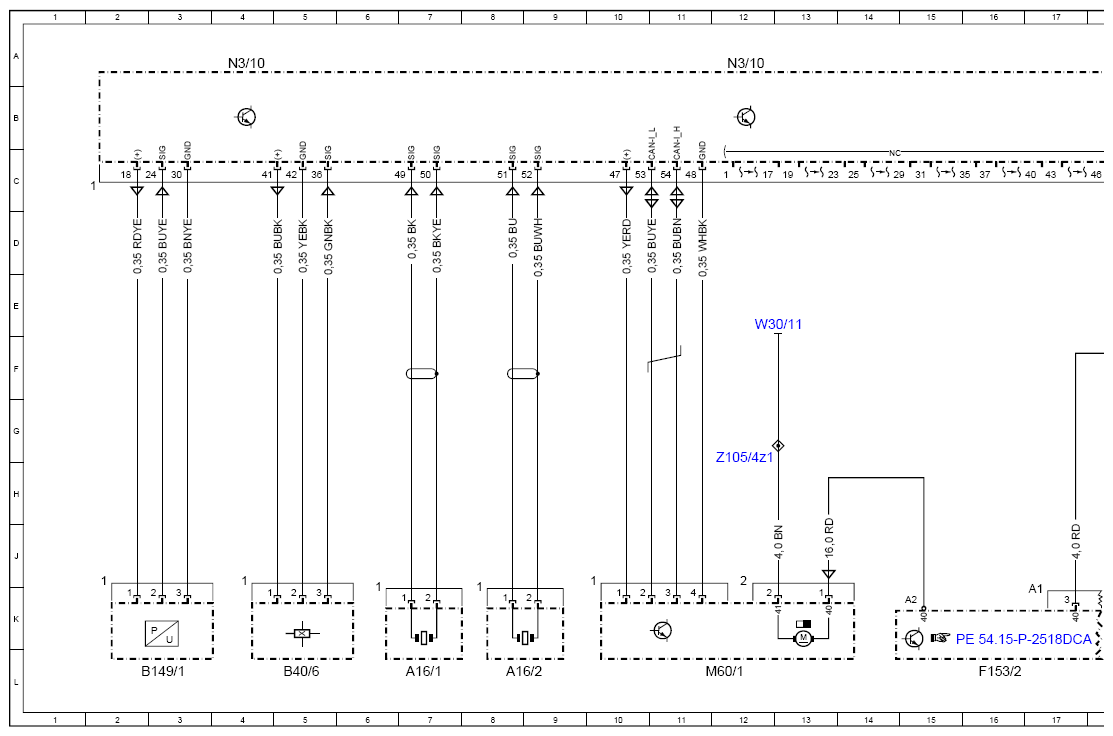

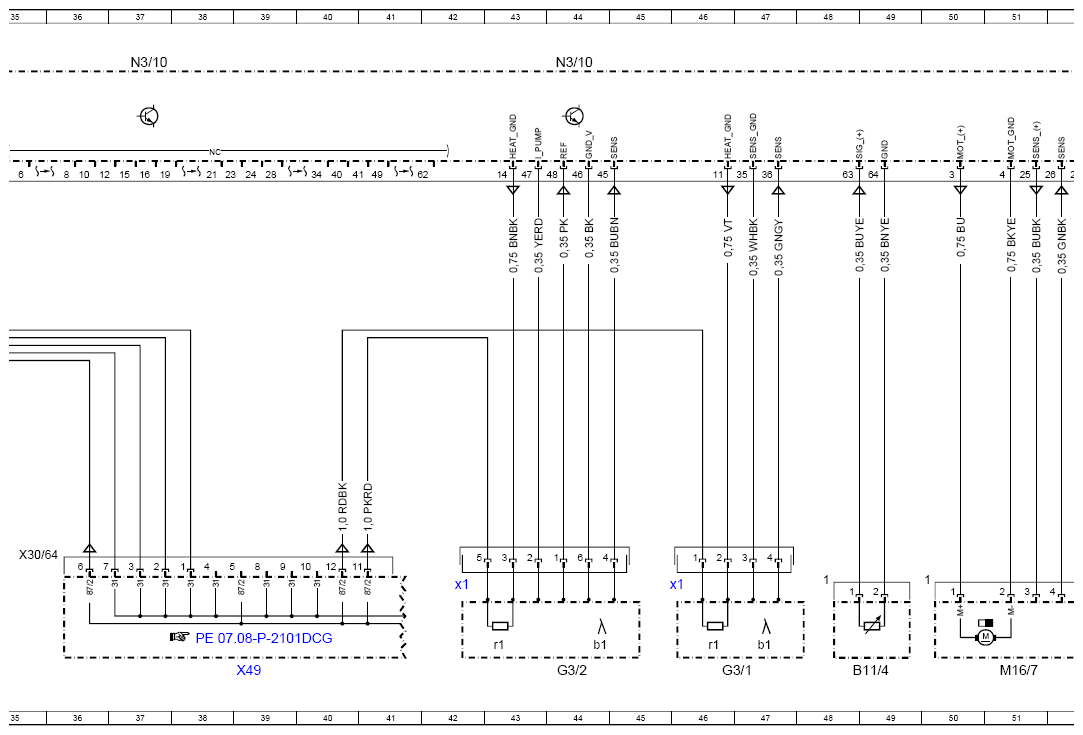

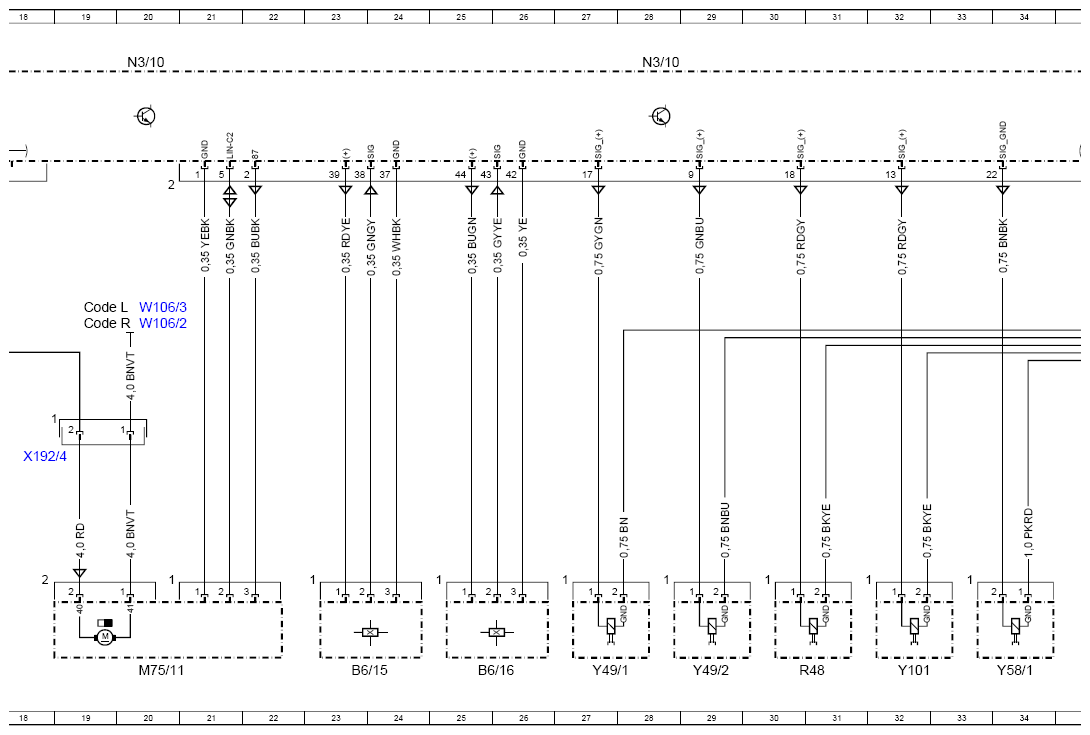

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97DCH
Engine 256.9 in model 238 up to model year 2021 Control unit N3/10, plugs 1, 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A16/1 | Knock sensor 1 | 7L |
| A16/2 | Knock sensor 2 | 8L |
| B11/4 | Coolant temperature sensor | 49L |
| B149/1 | Engine oil pressure and temperature sensor | 3L |
| B40/6 | Engine oil fill level sensor | 5L |
| B6/15 | Intake camshaft Hall sensor | 23L |
| B6/16 | Exhaust camshaft Hall sensor | 25L |
| Code L | LEFT-HAND DRIVE | 19E |
| Code R | RIGHT-HAND DRIVE | 19E |
| F153/2 | Engine compartment 48V fuse box | 16L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 46L |
| G3/1b1 | Sensor element of oxygen sensor downstream of catalytic converter | 47L |
| G3/1r1 | Heater of oxygen sensor heater downstream of catalytic converter | 46L |
| G3/1x1 | Electrical connector for oxygen sensor downstream of catalytic converter | 46K |
| G3/2 | Oxygen sensor upstream of catalytic converter | 44L |
| G3/2b1 | Sensor element of oxygen sensor upstream of catalytic converter | 44L |
| G3/2r1 | Heater of oxygen sensor upstream of catalytic converter | 43L |
| G3/2x1 | Electrical connector for oxygen sensor upstream of catalytic converter | 42K |
| M16/7 | Boost pressure control flap actuator | 51L |
| M60/1 | Electric additional compressor | 12L |
| M75/11 | Electric coolant pump | 20L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 37A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| R48 | Coolant thermostat heating element | 31L |
| W106/2 | 48 V on-board electrical system battery ground point, left | 20E |
| W106/3 | 48 V on-board electrical system battery ground point, right | 20E |
| W30/11 | Underbody tml. 41 ground point | 12E |
| X192/4 | Electric coolant pump electrical connector | 18H |
| X49 | Potential distributor | 39L |
| Y101 | Divert air switchover valve | 32L |
| Y49/1 | Intake camshaft solenoid | 27L |
| Y49/2 | Exhaust camshaft solenoid | 29L |
| Y58/1 | Purge control valve | 34L |
| Z105/4z1 | Circuit 41 connector sleeve | 12G |
