Check Engine Cooling System For Leaktightness - AR20.00-P-1011MND
Engine 276.8 in model 213, 238
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove | |||
| 1 | Unscrew cap (1) slowly on coolant expansion reservoir (2) and relieve overpressure | ||
| 2 | Check coolant level and antifreeze content of coolant; correct if necessary | *BF20.00-P-1001-02BA | |

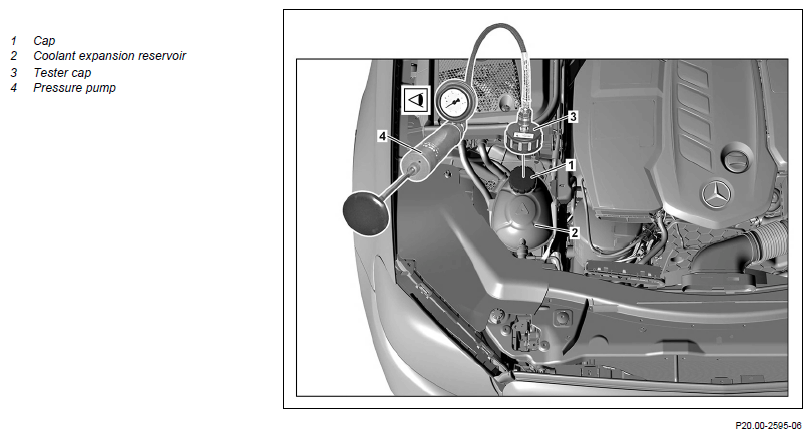

| 3 | Screw tester cap (3) onto coolant expansion reservoir (2) | Fig 1 | |
| 4 | Connect pressure pump (4) at tester cap (3) | Fig 2 | |
| Check | |||
| 5 | Apply a test pressure to the engine cooling system for 2 minutes | Do not exceed the specified test pressure. Damage can occur on the engine cooling system otherwise. Test pressure for pressure-testing the engine cooling system |
*BE20.30-P-1005-01A |
| 6 | Check condition and coolant loss for all coolant carrying assembly parts and connections and replace assembly parts if necessary | In the event of pressure loss. | |
| Install | |||
| 7 | Relieve test pressure over valve on pressure pump (4) | Fig 2 | |
| 8 | Remove pressure pump (4) from tester cap (3) | ||
| 9 | Unscrew tester cap (3) at coolant expansion reservoir (2). | Fig 1 | |
| 10 | Check coolant level and antifreeze content of coolant; correct if necessary | *BF20.00-P-1001-02BA | |
| 11 | Screw cap (1) onto coolant expansion reservoir (2) |
RADIATOR OR EXPANSION RESERVOIR CAP
| Number | Designation | 1-stage cover latch | 2-stage latch cover | ||
|---|---|---|---|---|---|
| BE20.30-P-1005-01A | Test pressure for pressure-testing the engine cooling system | Overpressure | bar | 1, 4 | 1, 4 |
COOLING SYSTEM
| Number | Designation | Engine 276 in model 213 | Engine 276 in model 238 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02BA | Cooling system | Workshop replacement amount | Main circuit | L | ≈12, 0 | ≈12, 0 |
| Low-temperature circuit | L | ≈3, 5 | ≈2, 8 | |||
| Antifreeze/water | Up to -37°C | % | 50/50 | 50/50 | ||
| As of -38 °C | % | 55/45 | 55/45 | |||
| Fluids specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
