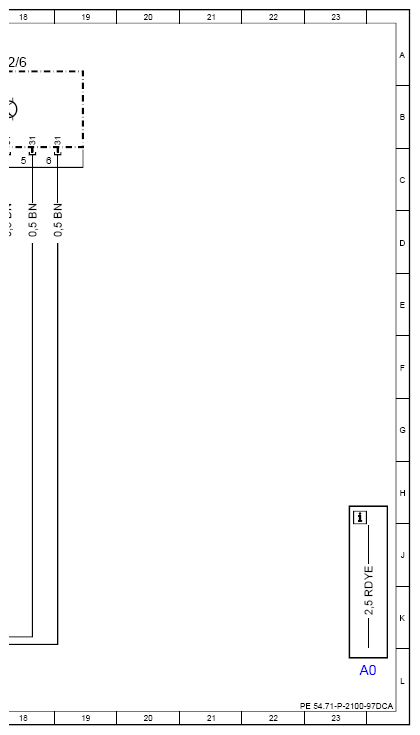

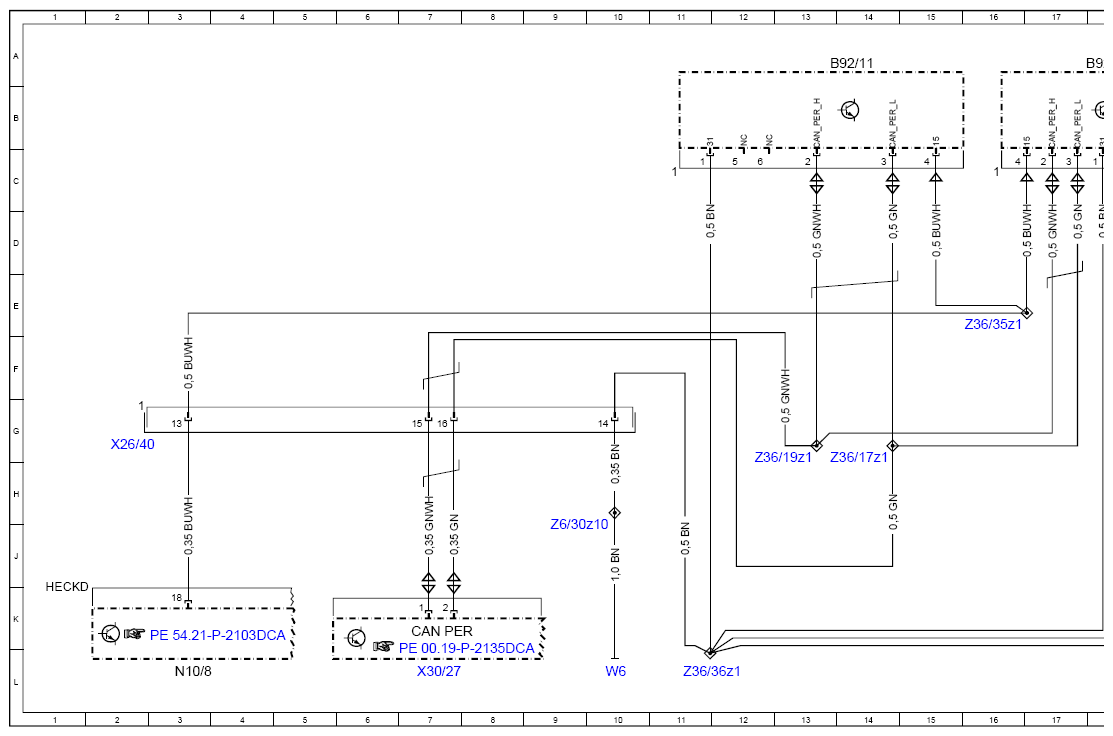

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97DCA
Model 238 up to model year 2021 with code 234 (Blind Spot Assist) Radar sensors B92/6 and B92/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| B92/11 | Left outer rear bumper integrated radar sensor | 14A |
| B92/6 | Right outer rear bumper integrated radar sensor | 18A |
| CAN PER | Peripherals CAN | 7K |
| Code 234 | Blind spot assist | - |
| N10/8 | Rear SAM control unit | 3L |
| W6 | Left wheel arch trunk ground point | 10L |
| X26/40 | Rear bumper electrical connector | 2G |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 7L |
| Z36/17z1 | Rear sensor CAN (low) connector sleeve | 14H |
| Z36/19z1 | Rear sensor CAN (high) connector sleeve | 13H |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 16E |
| Z36/36z1 | Rear bumper circuit 31 connector sleeve | 11L |
| Z6/30z10 | Circuit 31 connector sleeve | 9J |
