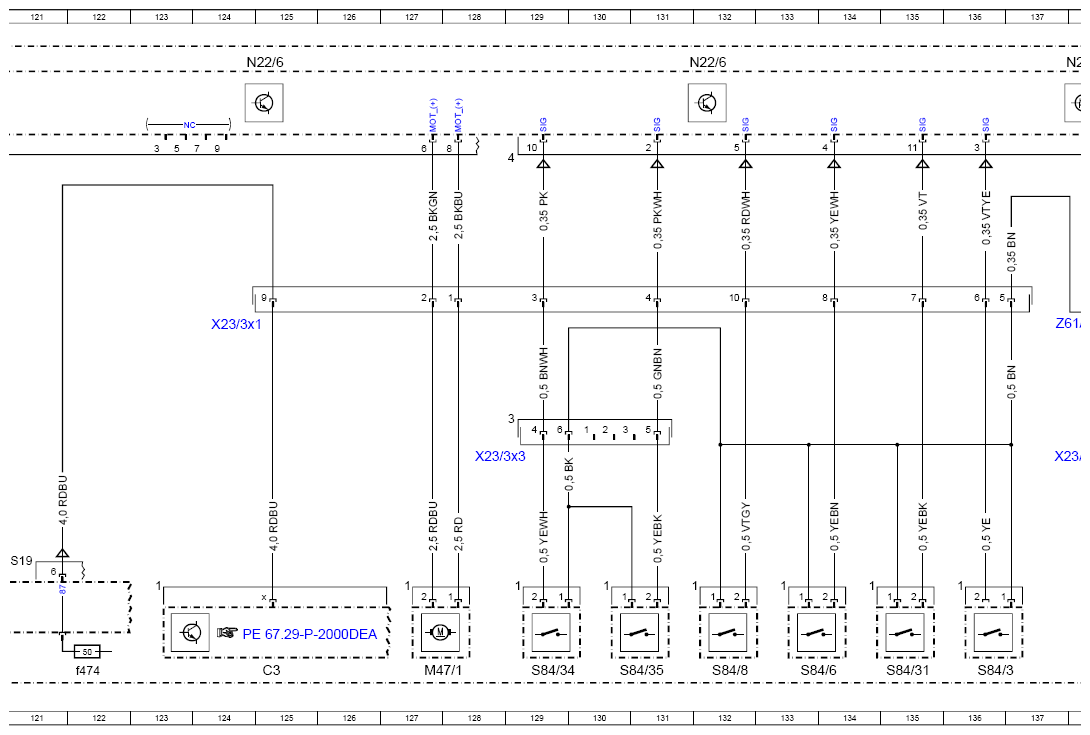

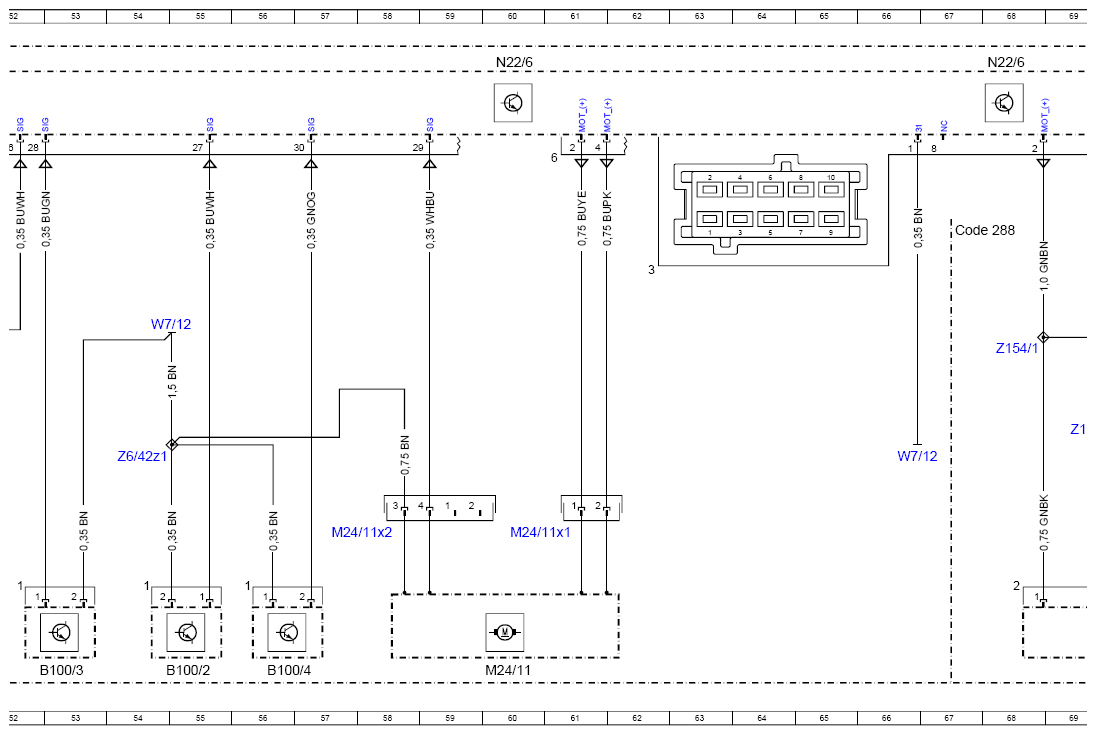

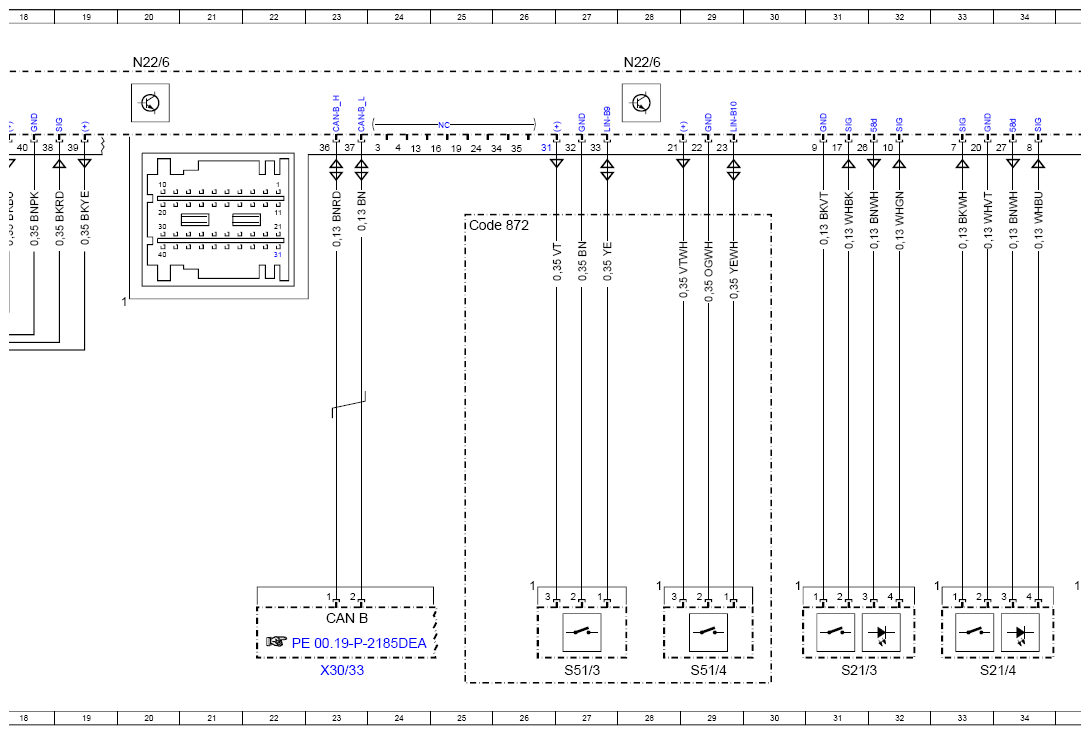

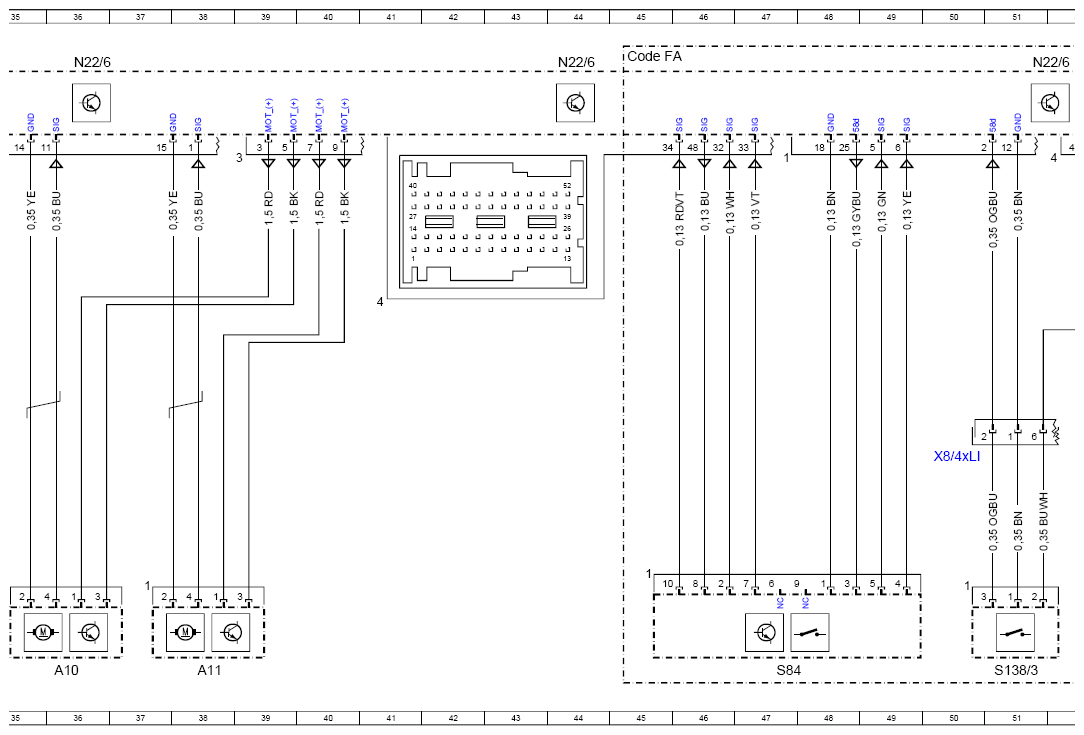

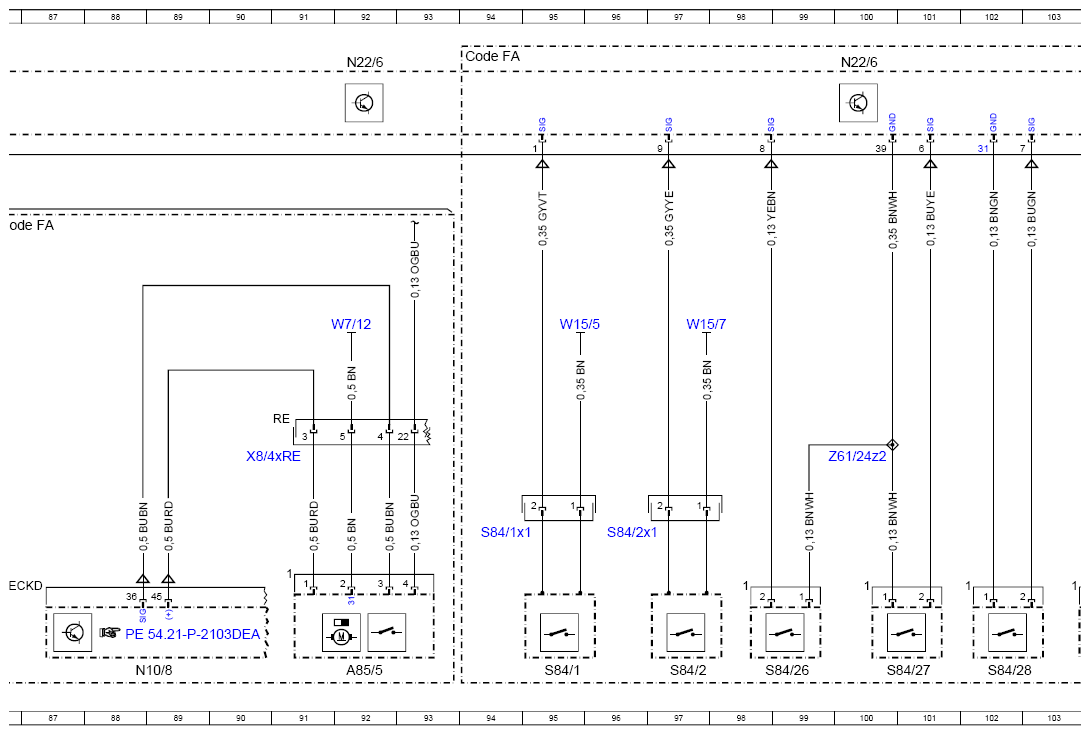

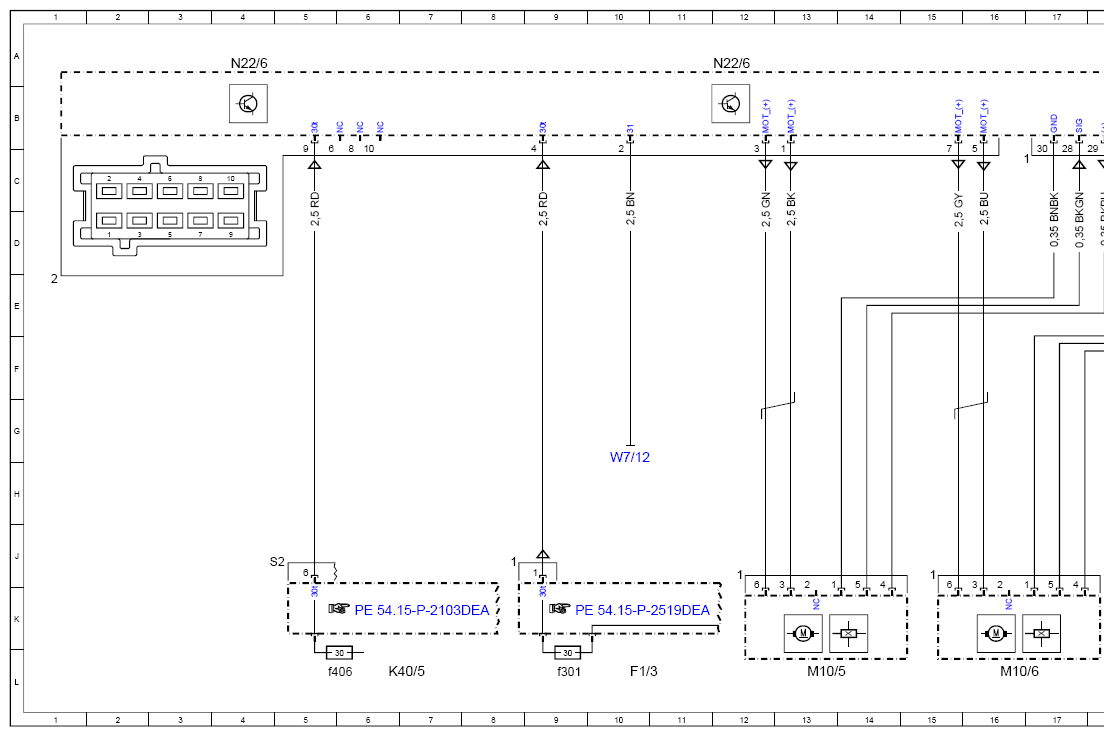

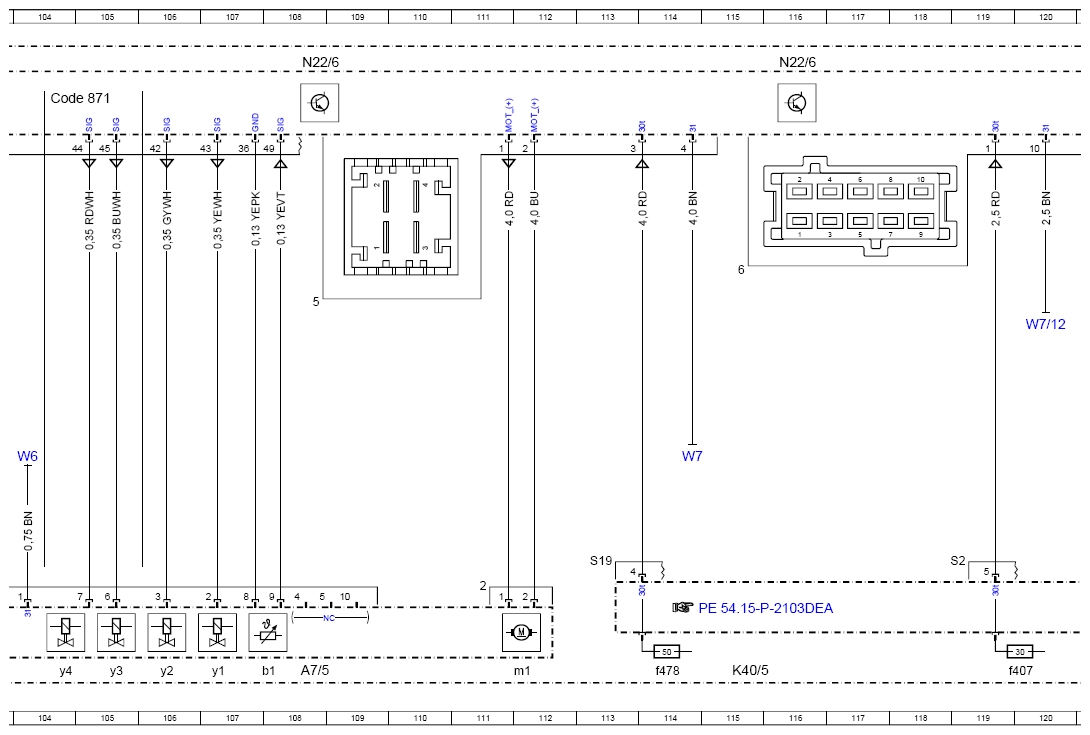

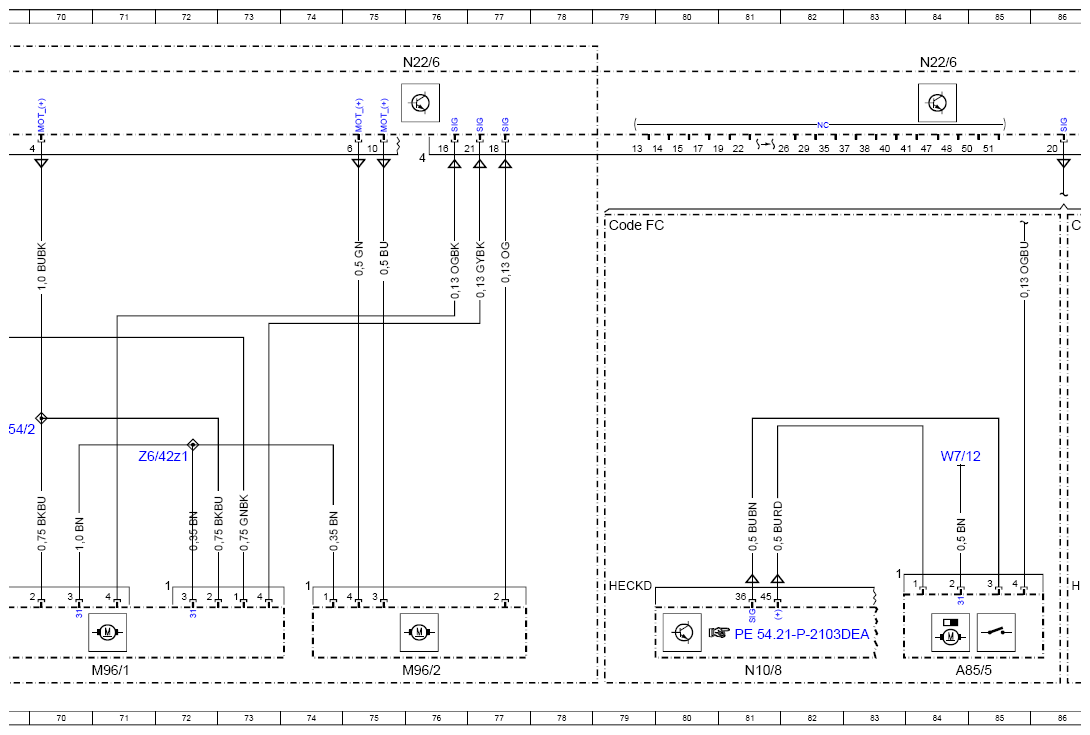

Wiring Diagram Rear Control Unit - PE54.21-P-2110-97DEA
Model 238 as of model year 2021 Control unit N22/6
| Code: | Designation: | Position: |
|---|---|---|

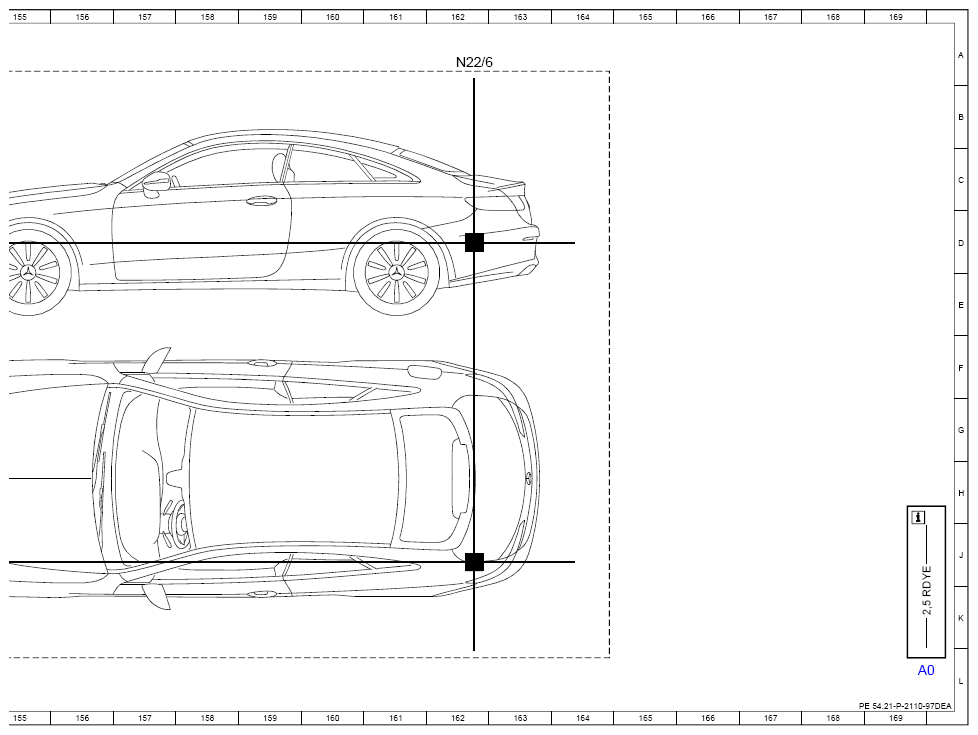

| A0 | Use of wiring diagrams | 169L |
| A10 | Seat belt extender on left | 36L |
| A11 | Seat belt extender on right | 38L |
| A7/5 | Soft top control hydraulic unit | 108L |
| A7/5b1 | Convertible top control hydraulic unit temperature sensor | 108L |
| A7/5m1 | Convertible top control hydraulic unit electric motor | 112L |
| A7/5y1 | Solenoid valve (PCS1) | 107L |
| A7/5y2 | Solenoid valve (TCC) | 106L |
| A7/5y3 | Solenoid valve 3 | 105L |
| A7/5y4 | Solenoid valve (PCS2) | 104L |
| A85/5 | Trunk lid lock | 84L |
| A85/5 | Trunk lid lock | 92L |
| B100/2 | Left trunk partition Hall sensor | 55L |
| B100/3 | Right trunk partition Hall sensor | 53L |
| B100/4 | Left trunk partition obstacle Hall sensor | 56L |
| C3 | Rear window interference suppression capacitor | 125L |
| CAN B | Interior CAN | 23K |
| Code 288 | Draft stop for convertible | 67D |
| Code 871 | HANDS-FREE ACCESS | 104B |
| Code 872 | Seat heater in rear passenger compartment | 25D |
| Code FA | CABRIOLET | 45A |
| Code FA | CABRIOLET | 86D |
| Code FA | CABRIOLET | 94A |
| Code FC | COUPE | 79D |
| F1/3 | Passenger-side A-pillar fuse box | 10L |
| F1/3f301 | Fuse 301 | 9L |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5 | Rear fuse and relay module | 115L |
| K40/5f406 | Fuse 406 | 5L |
| K40/5f407 | Fuse 407 | 119L |
| K40/5f474 | Fuse 474 | 122L |
| K40/5f478 | Fuse 478 | 114L |
| M10/5 | Left rear power window motor | 13L |
| M10/6 | Right rear power window motor | 16L |
| M24/11 | Trunk partition electric motor | 60L |
| M24/11x1 | Trunk partition electric motor electrical connector 1 | 60J |
| M24/11x2 | Trunk partition electric motor electrical connector 2 | 58J |
| M47/1 | Front soft top lock electric motor | 127L |
| M96/1 | Draft stop actuator motor | 71L |
| M96/2 | Wind deflector actuator motor | 76L |
| N10/8 | Rear SAM control unit | 81L |
| N10/8 | Rear SAM control unit | 88L |

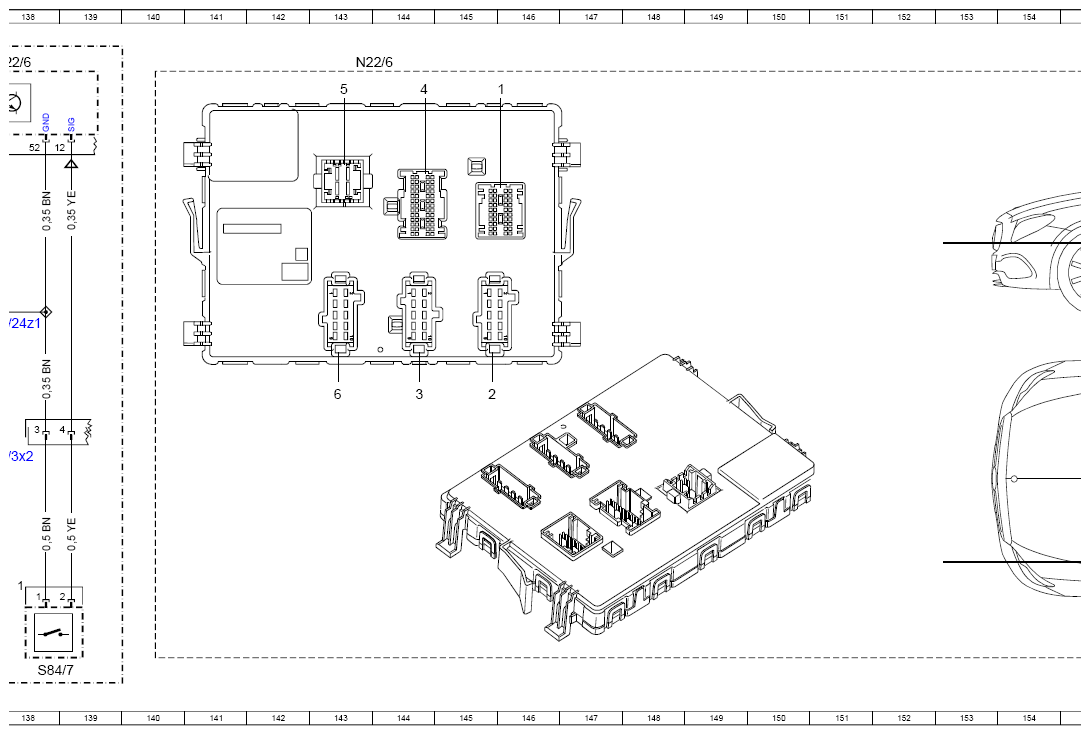

| N22/6 | Rear control unit | 4A |
| N22/6 | Rear control unit | 12A |
| N22/6 | Rear control unit | 20A |
| N22/6 | Rear control unit | 28A |
| N22/6 | Rear control unit | 36A |
| N22/6 | Rear control unit | 44A |
| N22/6 | Rear control unit | 51A |
| N22/6 | Rear control unit | 60A |
| N22/6 | Rear control unit | 68A |
| N22/6 | Rear control unit | 76A |
| N22/6 | Rear control unit | 84A |
| N22/6 | Rear control unit | 92A |
| N22/6 | Rear control unit | 100A |
| N22/6 | Rear control unit | 108A |
| N22/6 | Rear control unit | 116A |
| N22/6 | Rear control unit | 125A |
| N22/6 | Rear control unit | 132A |
| N22/6 | Rear control unit | 138A |
| N22/6 | Rear control unit | 143A |
| N22/6 | Rear control unit | 162A |
| S138/3 | Trunk partition switch | 51L |
| S21/3 | Left rear power window switch | 31L |
| S21/4 | Right rear power window switch | 33L |
| S51/3 | Left rear heated seat switch | 27L |
| S51/4 | Right rear heated seat switch | 29L |
| S84 | Soft top control switch | 47L |
| S84/1 | Left soft top "locked" limit switch | 95L |
| S84/1x1 | Left soft top "locked" switch electrical connector | 94J |
| S84/2 | Right soft top "Locked" limit switch | 97L |
| S84/26 | Left soft top compartment lid up limit switch | 99L |
| S84/27 | Left soft top compartment lid locked limit switch | 101L |
| S84/28 | Right soft top compartment lid locked limit switch | 102L |
| S84/2x1 | Right soft top "locked" switch electrical connector | 96J |
| S84/3 | Soft top "open" limit switch | 136L |
| S84/31 | Soft top closed limit switch | 135L |
| S84/34 | Soft top lock open limit switch | 129L |
| S84/35 | Soft top lock locked limit switch | 131L |
| S84/6 | Left soft top bow locked down limit switch | 133L |
| S84/7 | Right soft top bow locked down limit switch | 138L |
| S84/8 | Soft top bow up limit switch | 132L |
| W15/5 | Left front footwell ground point | 95E |
| W15/7 | Right front footwell ground point | 97E |
| W6 | Left wheel arch trunk ground point | 104H |
| W7 | Right wheel house trunk ground point | 114H |
| W7/12 | Right floor AdBlue® ground point | 10H |
| W7/12 | Right floor AdBlue® ground point | 66H |
| W7/12 | Right floor AdBlue® ground point | 84H |
| W7/12 | Right floor AdBlue® ground point | 54E |
| W7/12 | Right floor AdBlue® ground point | 92E |
| W7/12 | Right floor AdBlue® ground point | 120E |
| X23/3x1 | Soft top/vehicle interior electrical connector 1 | 124E |
| X23/3x2 | Soft top/vehicle interior electrical connector 2 | 138H |
| X23/3x3 | Soft top/vehicle interior electrical connector 3 | 128H |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 23L |
| X8/4xLI | Trunk lid electrical connector | 50H |
| X8/4xRE | Trunk lid electrical connector | 91H |
| Z154/1 | Draft stop UP connector sleeve | 68F |
| Z154/2 | Draft stop DOWN connector sleeve | 69G |
| Z6/42z1 | Ground connection connector sleeve W6 | 54G |
| Z6/42z1 | Ground connection connector sleeve W6 | 72G |
| Z61/24z1 | Hall sensor ground connection terminal block (soft top) | 138E |
| Z61/24z2 | Hall sensor ground connection terminal block (soft top) | 100G |
