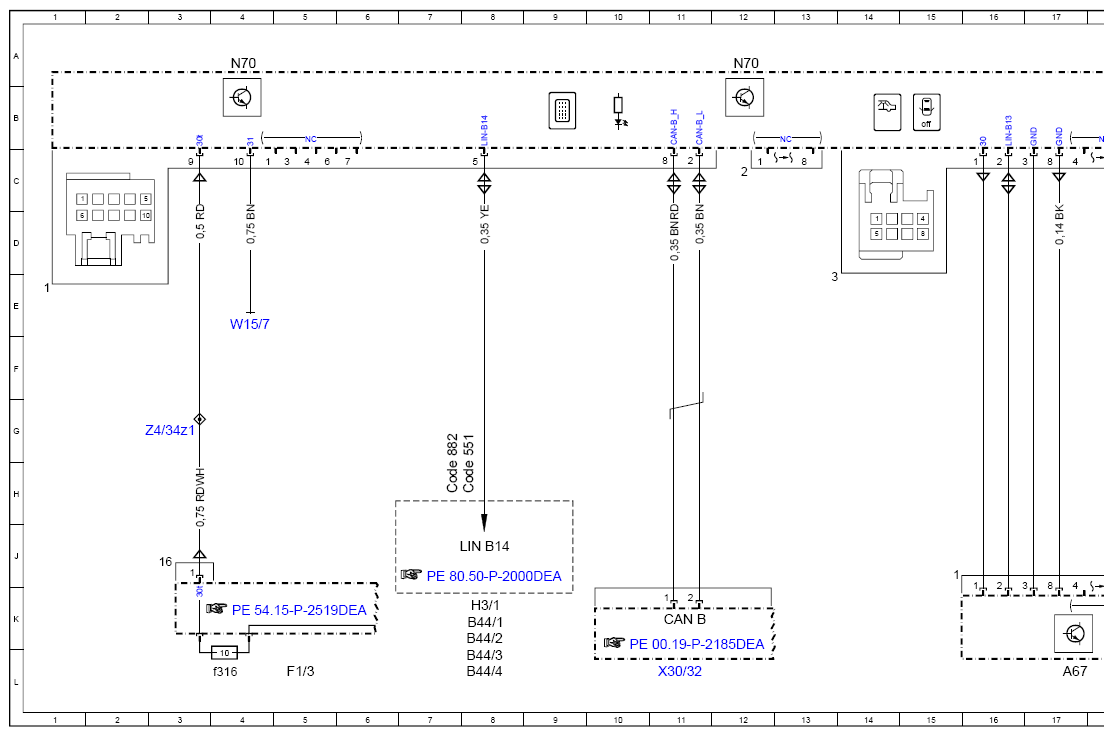

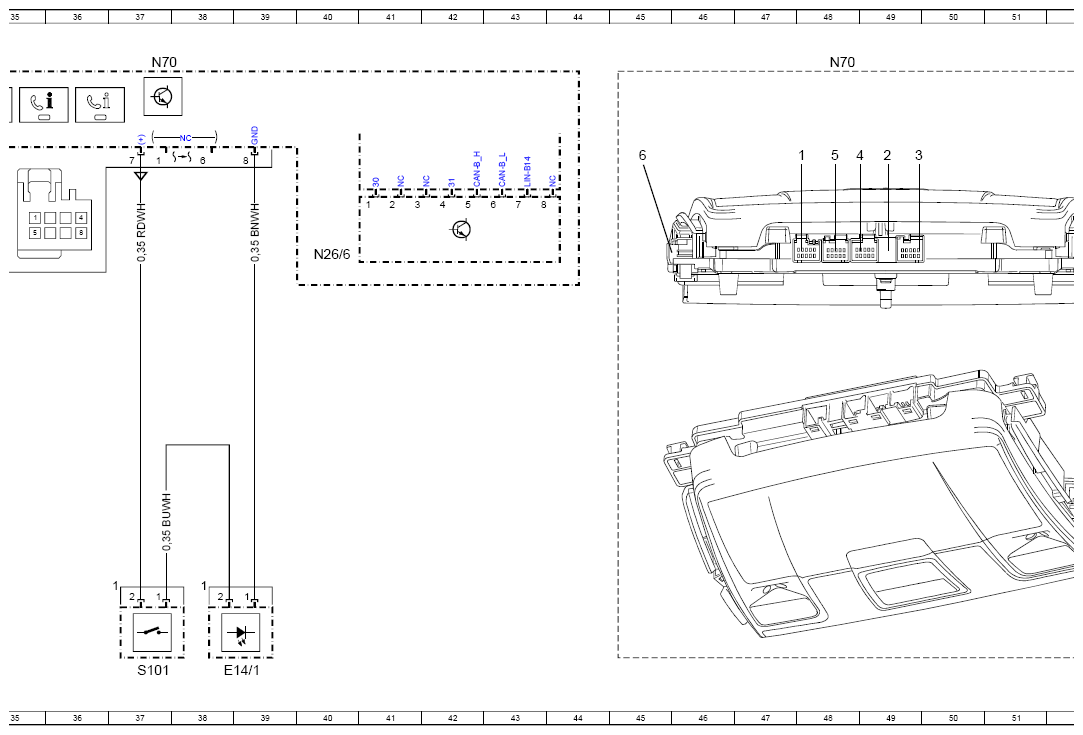

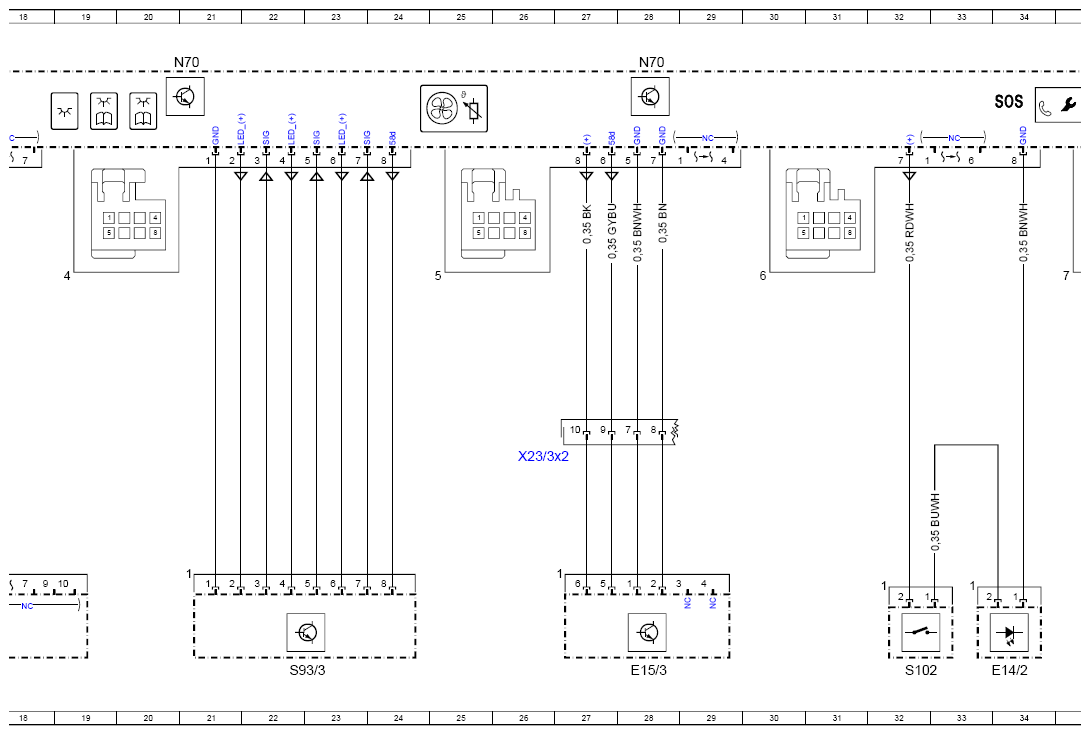

Wiring Diagram For Overhead Control Panel (OCP) Control Unit - PE54.21-P-2107-97DEB
Model 238.4 as of model year 2021 Control unit N70
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A67 | Inside rearview mirror | 17L |
| B44/1 | Left front door interior protection sensor | 8K |
| B44/2 | Right front door interior protection sensor | 8K |
| B44/3 | Left rear interior protection sensor | 8L |
| B44/4 | Right rear interior protection sensor | 8L |
| CAN B | Interior CAN | 11K |
| E14/1 | Left sun visor mirror lamp | 38L |
| E14/2 | Right sun visor mirror lamp | 34L |
| E15/3 | Rear dome lamp | 28L |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3f316 | Fuse 316 | 4L |
| H3/1 | Alarm siren | 8K |
| LIN B14 | Alarm system LIN | 8J |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 40D |

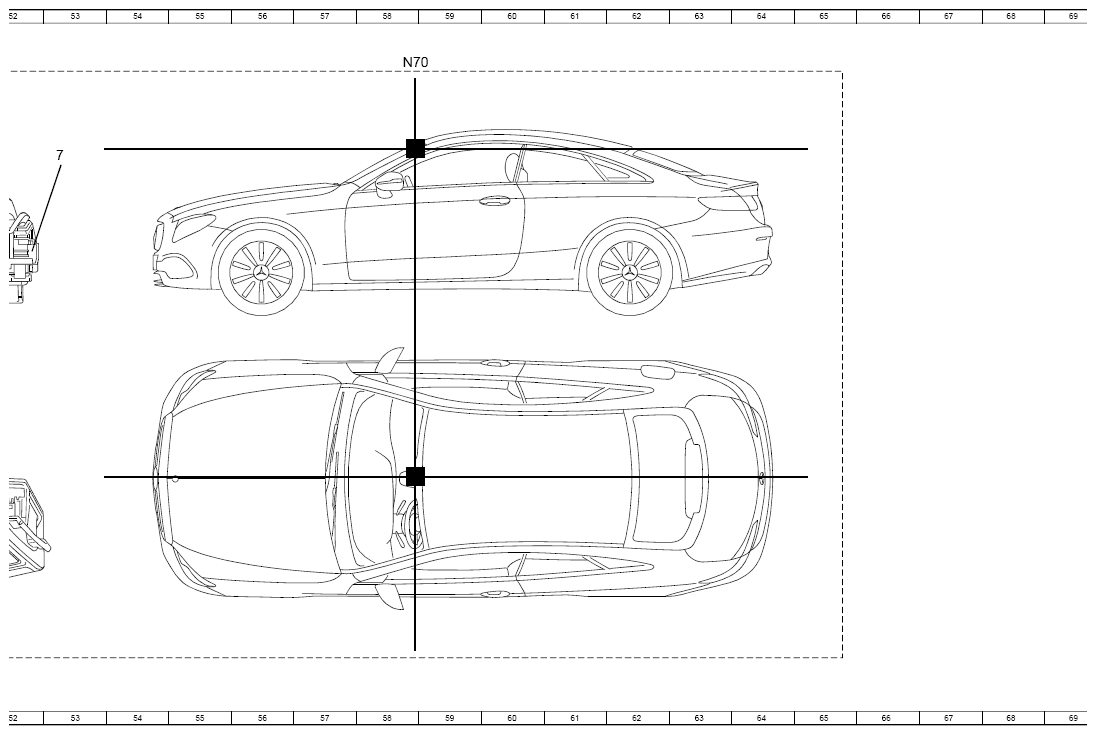

| N70 | Overhead control panel control unit | 4A |
| N70 | Overhead control panel control unit | 12A |
| N70 | Overhead control panel control unit | 21A |
| N70 | Overhead control panel control unit | 28A |
| N70 | Overhead control panel control unit | 48A |
| N70 | Overhead control panel control unit | 37A |
| N70 | Overhead control panel control unit | 58A |
| S101 | Left front mirror lamp switch | 37L |
| S102 | Right front mirror lamp switch | 32L |
| S93/3 | Emergency call system button group | 22L |
| W15/7 | Right front footwell ground point | 4E |
| X23/3x2 | Soft top/vehicle interior electrical connector 2 | 26H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 11L |
| Z4/34z1 | Interior protection sensor power supply connector sleeve | 3G |
