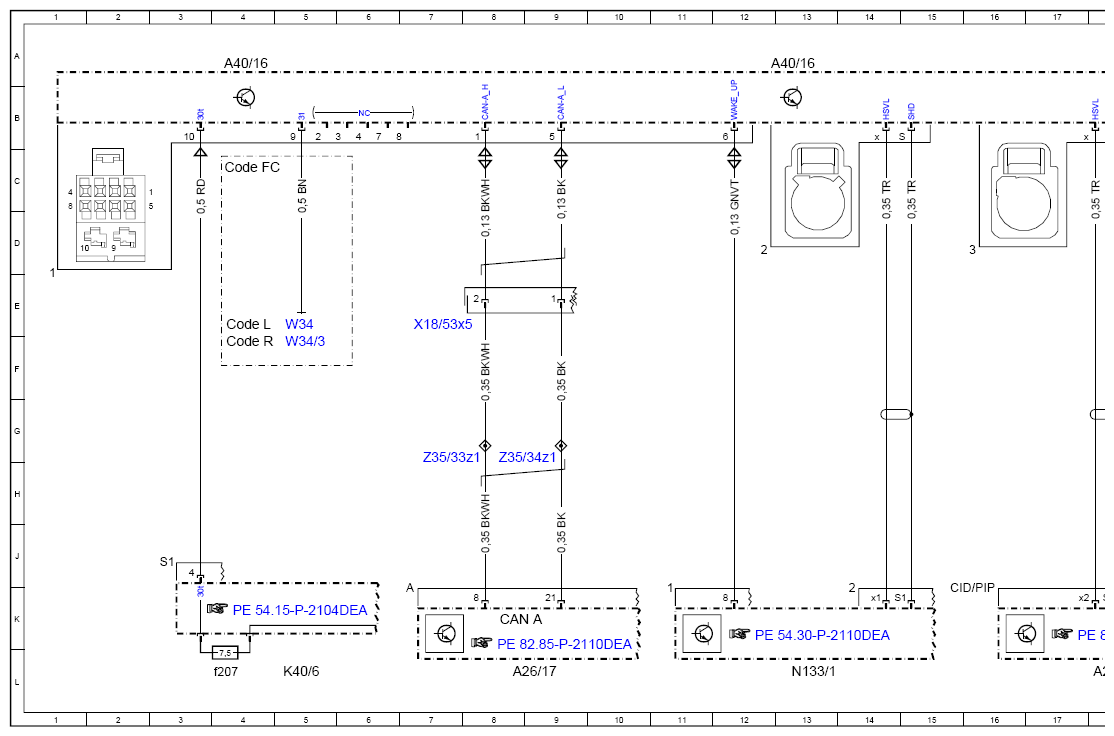

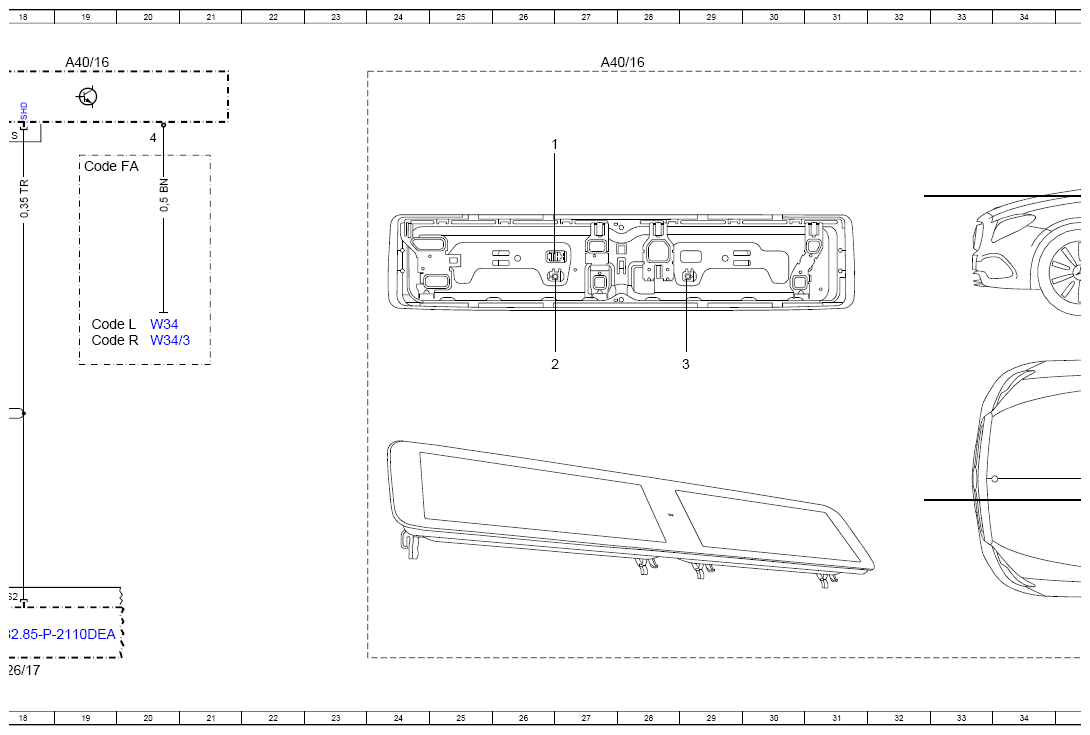

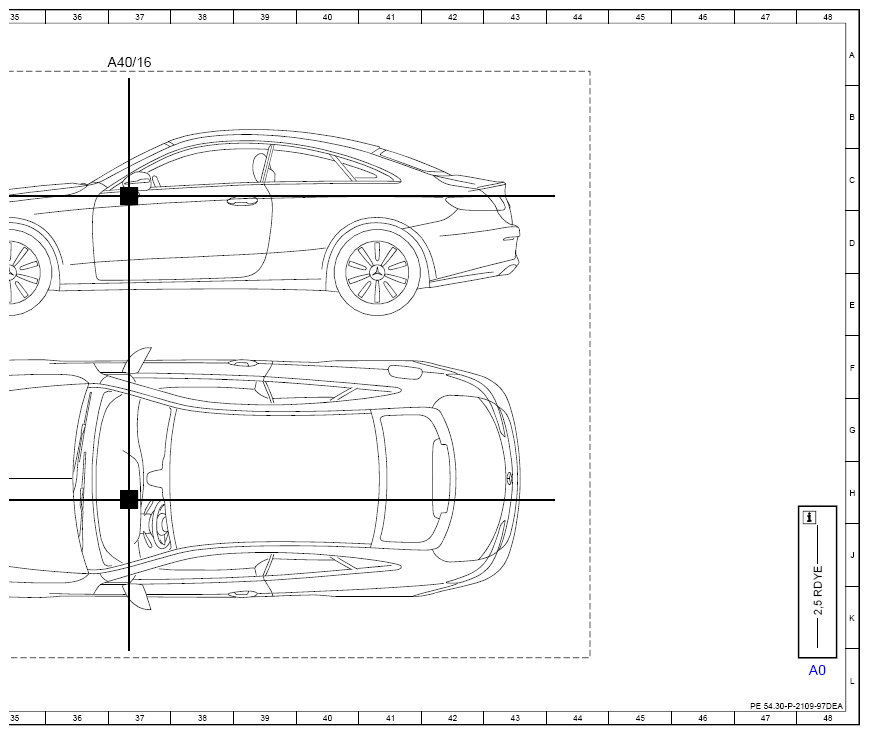

Wiring Diagram For Instrument Cluster And Head Unit Display Group - PE54.30-P-2109-97DEA
Model 238 as of model year 2021 Control unit A40/16
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A26/17 | Head unit | 8L |
| A26/17 | Head unit | 18L |
| A40/16 | Head unit/instrument cluster display cluster | 4A |
| A40/16 | Head unit/instrument cluster display cluster | 13A |
| A40/16 | Head unit/instrument cluster display cluster | 27A |
| A40/16 | Head unit/instrument cluster display cluster | 37A |
| A40/16 | Head unit/instrument cluster display cluster | 19A |
| CAN A | Telematics CAN | 8K |
| Code FA | CABRIOLET | 19C |
| Code FC | COUPE | 4C |
| Code L | LEFT-HAND DRIVE | 4E |
| Code L | LEFT-HAND DRIVE | 19E |
| Code R | RIGHT-HAND DRIVE | 4F |
| Code R | RIGHT-HAND DRIVE | 19F |
| K40/6 | Driver-side fuse and relay module | 5L |
| K40/6f207 | Fuse 207 | 4L |
| N133/1 | Instrument cluster control unit | 13L |
| W34 | Left footwell ground point | 5E |
| W34 | Left footwell ground point | 20E |
| W34/3 | Right footwell ground point | 5F |
| W34/3 | Right footwell ground point | 20F |
| X18/53x5 | Driver cockpit/interior wiring harness electrical connector 5 | 7E |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 7G |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 9G |
