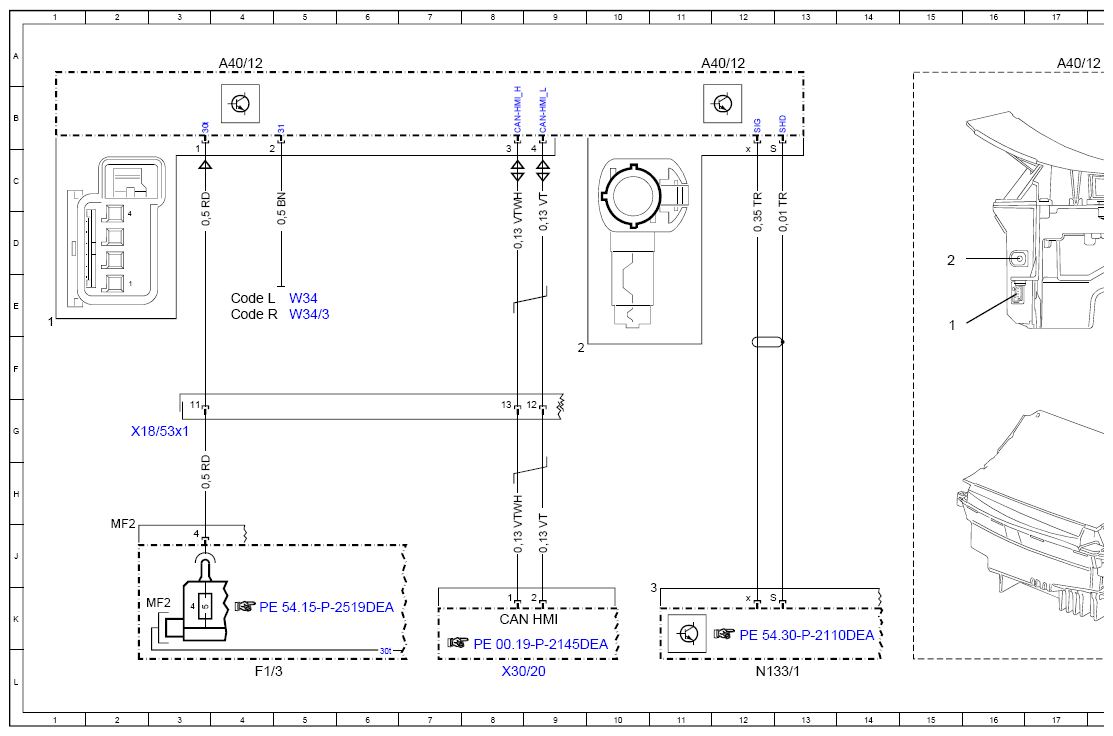

Wiring Diagram For Head-Up Display Control Unit - PE54.30-P-2104-97DEA
Model 238 as of model year 2021 with code 463 (Head-up display) Control unit A40/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |

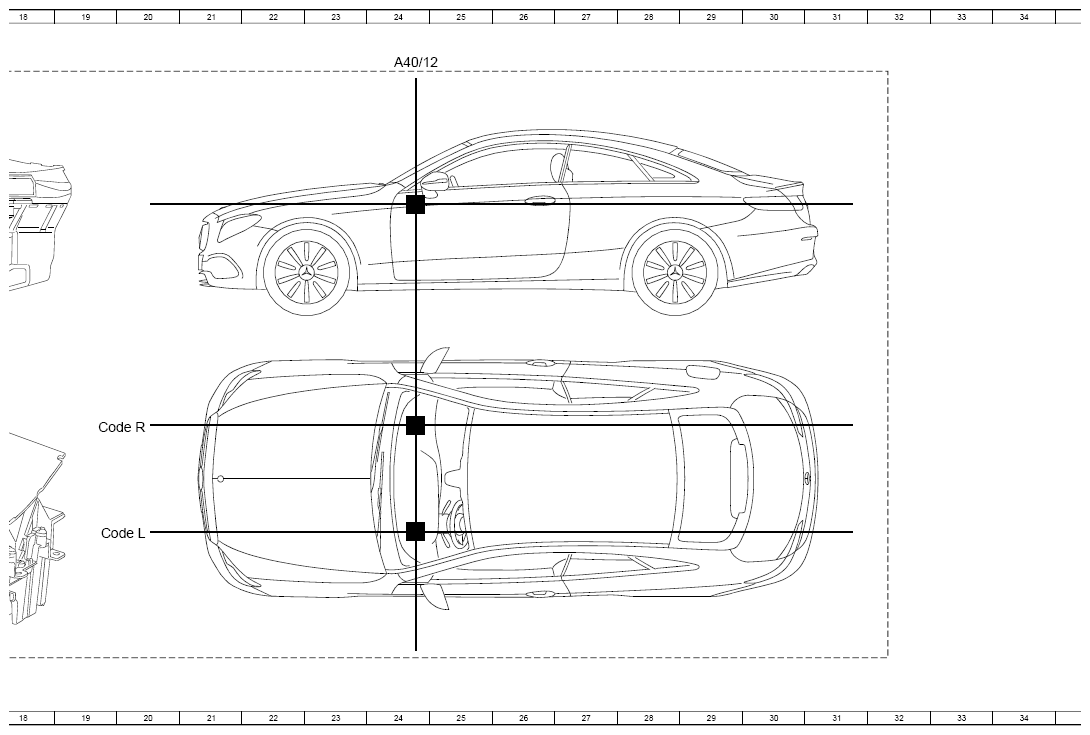

| A40/12 | Head-up display | 4A |
| A40/12 | Head-up display | 12A |
| A40/12 | Head-up display | 17A |
| A40/12 | Head-up display | 24A |
| CAN HMI | User interface CAN | 8K |
| Code L | LEFT-HAND DRIVE | 20J |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 20G |
| Code R | RIGHT-HAND DRIVE | 4E |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3MF2 | Multiple fuse 2 | 3K |
| N133/1 | Instrument cluster control unit | 12L |
| W34 | Left footwell ground point | 5E |
| W34/3 | Right footwell ground point | 5E |
| X18/53x1 | Driver cockpit/interior wiring harness electrical connector | 3G |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 8L |
