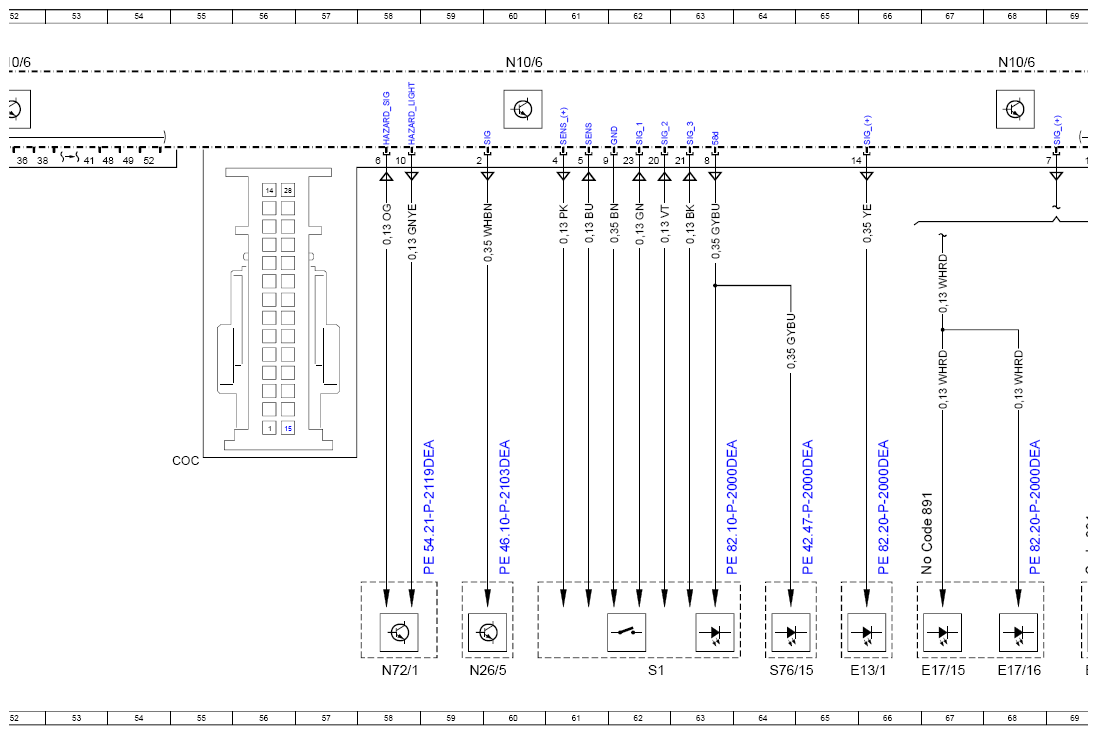

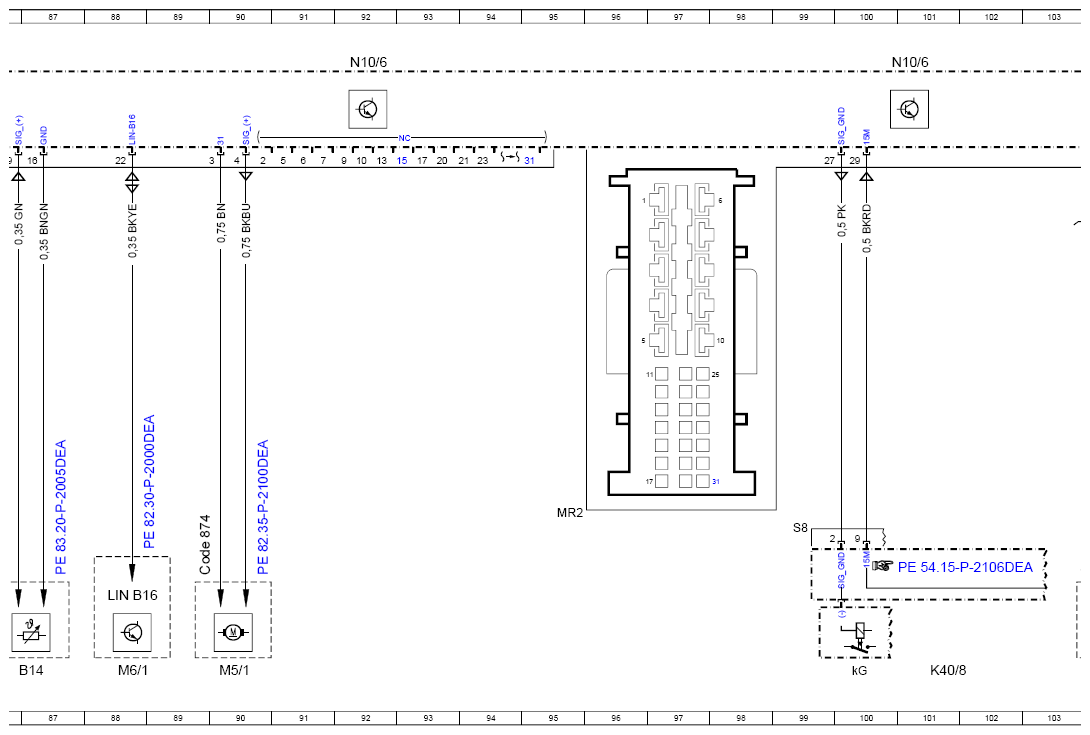

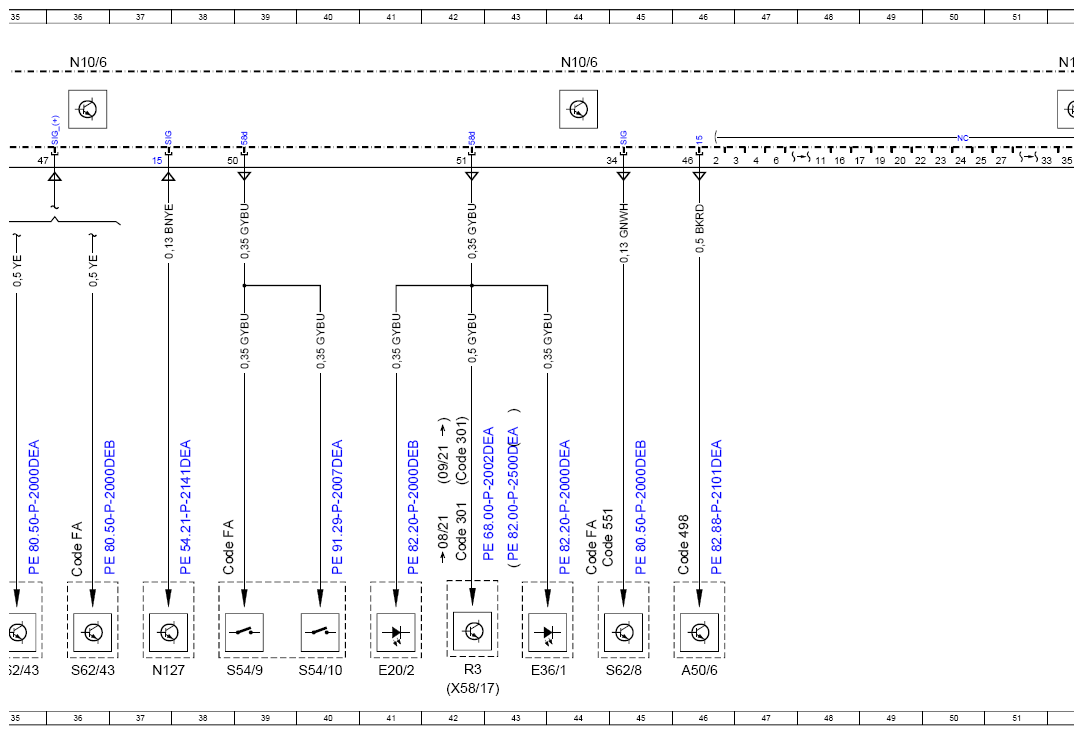

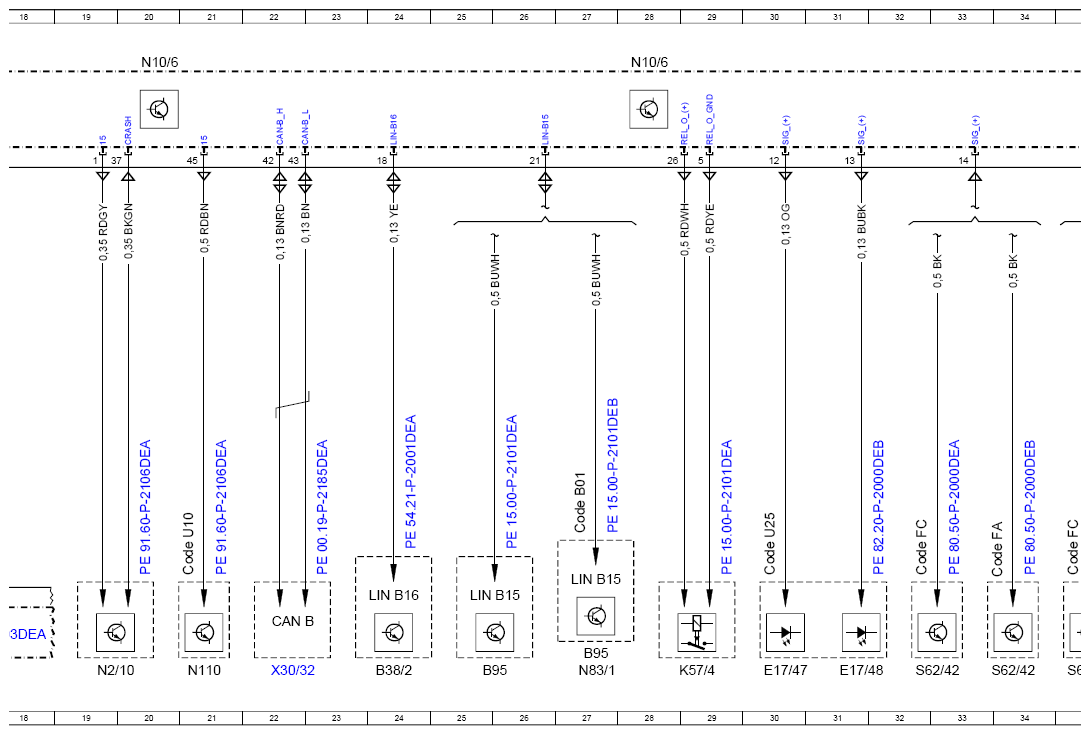

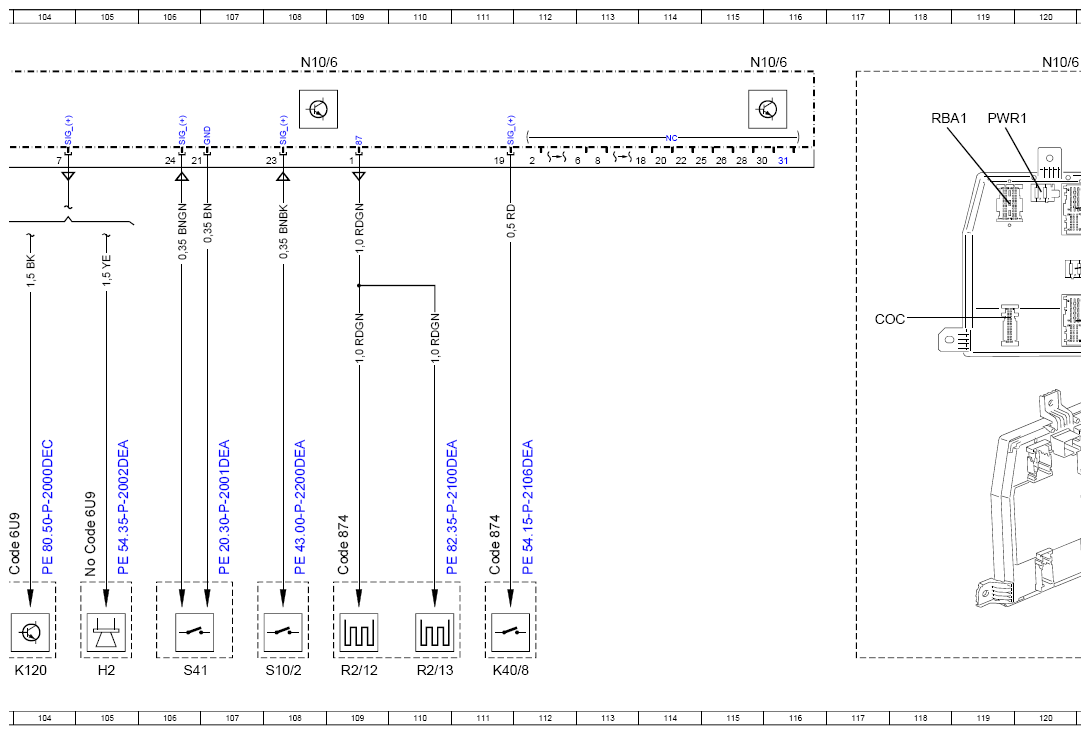

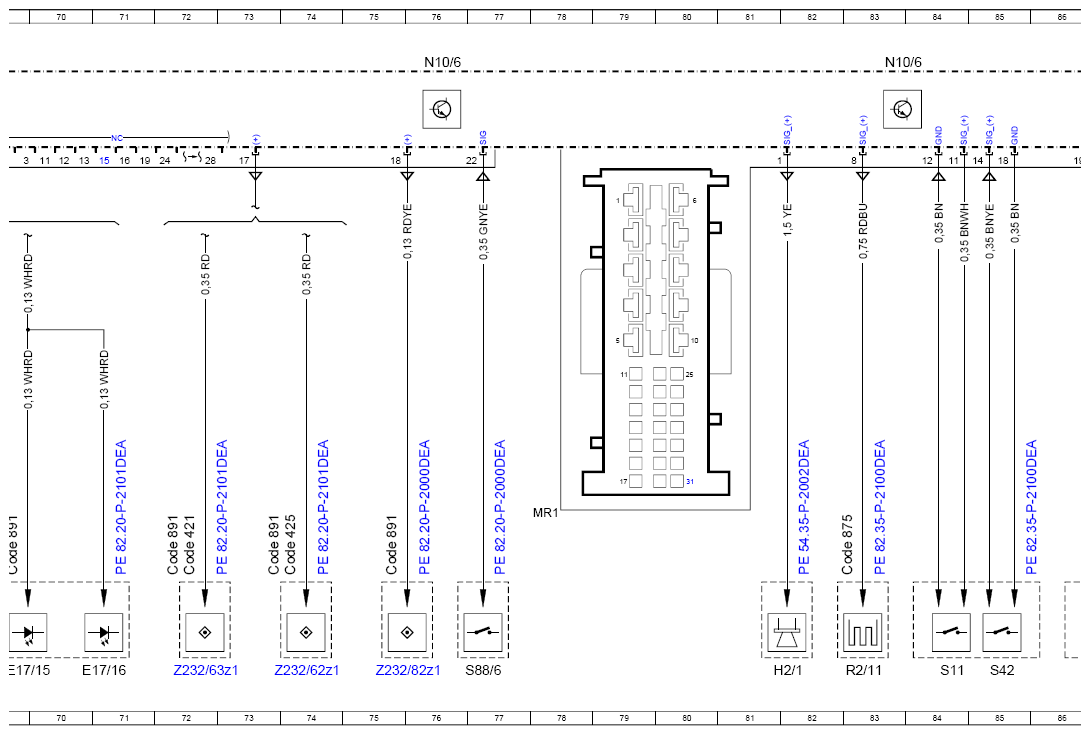

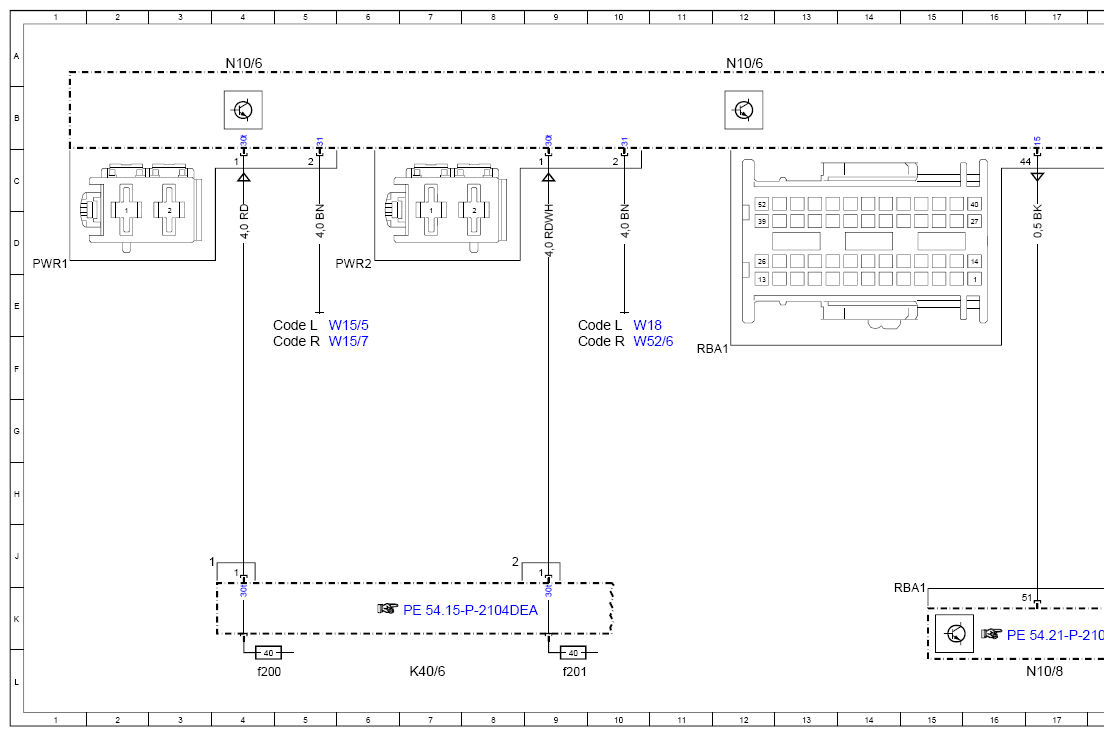

Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97DEA
Model 238 as of model year 2021 Control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|

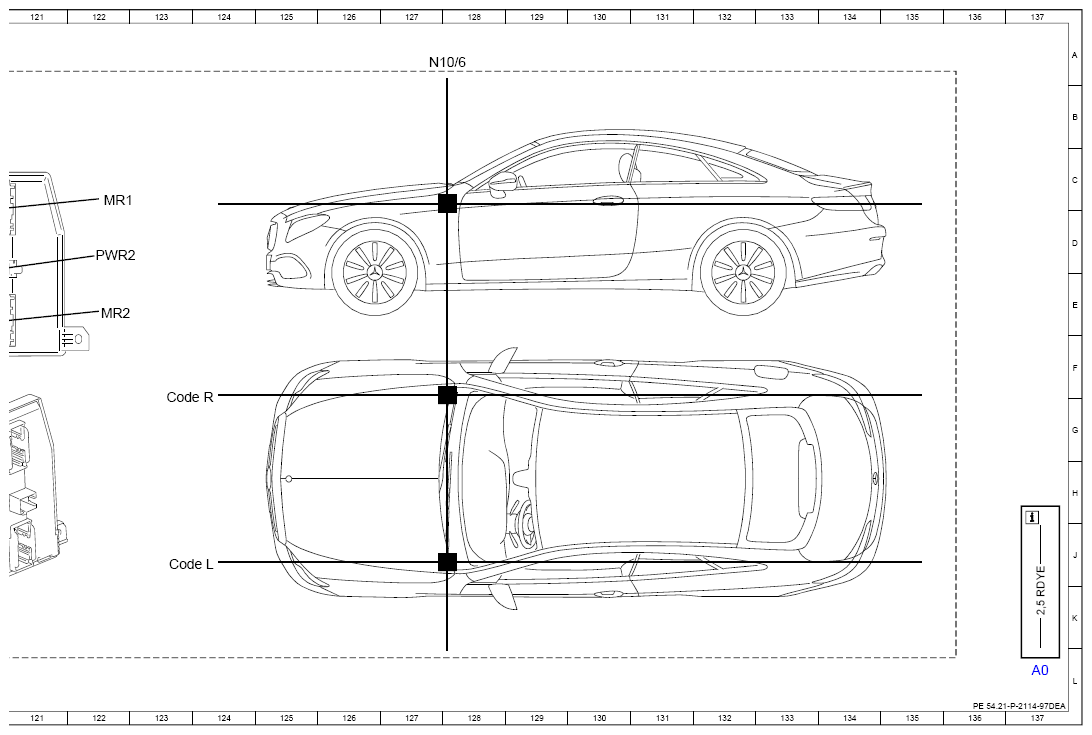

| A0 | Use of wiring diagrams | 137L |
| A50/6 | Dedicated Short-Range Communications control unit | 46L |
| B14 | Outside temperature sensor | 87L |
| B38/2 | Rain/light sensor with additional functions | 24L |
| B95 | Battery sensor | 25L |
| B95 | Battery sensor | 27L |
| CAN B | Interior CAN | 22K |
| Code 301 | Smoker's package | 42J |
| Code 301 | Smoker's package | 42H |
| Code 421 | 9G-TRONIC | 72J |
| Code 425 | 6-speed manual transmission | 74J |
| Code 498 | Japan version | 46J |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 45J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 105 J |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 104J |
| Code 874 | MAGIC VISION CONTROL | 90J |
| Code 874 | MAGIC VISION CONTROL | 109J |
| Code 874 | MAGIC VISION CONTROL | 111J |
| Code 875 | Heated windshield washer system | 83J |
| Code 891 | Premium ambient lighting | 67J |
| Code 891 | Premium ambient lighting | 69J |
| Code 891 | Premium ambient lighting | 75J |
| Code 891 | Premium ambient lighting | 72J |
| Code 891 | Premium ambient lighting | 73J |
| Code B01 | 48V technology | 27J |
| Code FA | CABRIOLET | 34J |
| Code FA | CABRIOLET | 36J |
| Code FA | CABRIOLET | 44J |
| Code FA | CABRIOLET | 39J |
| Code FC | COUPE | 32J |
| Code FC | COUPE | 35J |
| Code L | LEFT-HAND DRIVE | 9E |
| Code L | LEFT-HAND DRIVE | 4E |
| Code L | LEFT-HAND DRIVE | 123J |
| Code R | RIGHT-HAND DRIVE | 9F |
| Code R | RIGHT-HAND DRIVE | 4F |
| Code R | RIGHT-HAND DRIVE | 123G |
| Code U10 | Automatic front passenger airbag shutoff | 21J |
| Code U25 | Illuminated door sills | 30J |
| E13/1 | Glove box lamp | 65L |
| E17/15 | Right front footwell lamp | 69L |
| E17/15 | Right front footwell lamp | 67L |
| E17/16 | Left front footwell lamp | 68L |
| E17/16 | Left front footwell lamp | 71L |
| E17/47 | Left front illuminated door sill molding | 30L |
| E17/48 | Right front illuminated door sill molding | 31L |
| E20/2 | Front center console cup holder illumination | 41L |
| E36/1 | Center console armrest stowage compartment switch and controls illumination | 43L |
| H2 | Left fanfare horn | 105L |
| H2/1 | Right fanfare horn | 81L |
| K120 | Theft detection system horn relay | 104L |
| K40/6 | Driver-side fuse and relay module | 7L |
| K40/6f200 | Fuse 200 | 4L |
| K40/6f201 | Fuse 201 | 9L |
| K40/8 | Engine fuse and relay module | 101L |
| K40/8 | Engine fuse and relay module | 111L |
| K40/8kG | Engine compartment terminal 15 relay | 100L |
| K57/4 | Battery disconnect switch relay | 29L |
| LIN B15 | Battery sensor LIN | 25K |
| LIN B15 | Battery sensor LIN | 27J |
| LIN B16 | Rain and light sensor LIN | 24K |
| LIN B16 | Rain and light sensor LIN | 88K |
| M5/1 | Windshield washer system pump | 90L |
| M6/1 | Wiper motor | 88L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 52A |
| N10/6 | Front SAM control unit | 60A |
| N10/6 | Front SAM control unit | 68A |
| N10/6 | Front SAM control unit | 76A |
| N10/6 | Front SAM control unit | 83A |
| N10/6 | Front SAM control unit | 92A |
| N10/6 | Front SAM control unit | 101A |
| N10/6 | Front SAM control unit | 108A |
| N10/6 | Front SAM control unit | 115A |
| N10/6 | Front SAM control unit | 120A |
| N10/6 | Front SAM control unit | 127A |
| N10/8 | Rear SAM control unit | 17L |
| N110 | Weight Sensing System (WSS) control unit | 21L |
| N127 | Drivetrain control unit | 37L |
| N2/10 | Supplemental restraint system control unit | 19L |
| N26/5 | Electric steering lock control unit | 59L |
| N72/1 | Upper control panel control unit | 58L |
| N83/1 | DC/DC converter control unit | 27L |
| R2/11 | Spray nozzle hose heater | 83L |
| R2/12 | Driver-side wiper blade heater | 109L |
| R2/13 | Passenger-side wiper blade heater | 110L |
| R3 | Front cigarette lighter with ashtray illumination | 42L |
| S1 | Exterior lights switch | 62L |
| S10/2 | Right front brake wear sensor | 108L |
| S11 | Brake fluid level switch | 84L |
| S41 | Coolant level switch | 106L |
| S42 | Windshield washer fluid level indicator switch | 85L |
| S54/10 | Right luggage compartment rear backrest release button | 40L |
| S54/9 | Left luggage compartment rear backrest release button | 39L |
| S62/42 | Right engine hood contact switch | 32L |
| S62/42 | Right engine hood contact switch | 34L |
| S62/43 | Left engine hood contact switch | 35L |
| S62/43 | Left engine hood contact switch | 36L |
| S62/8 | Center console anti-theft alarm system switch | 45L |
| S76/15 | Electric parking brake switch | 64L |
| S88/6 | Separate trunk lid lock switch | 77L |
| W15/5 | Left front footwell ground point | 5E |
| W15/7 | Right front footwell ground point | 5F |
| W18 | Left front seat crossmember ground point | 10E |
| W52/6 | Right center longitudinal member ground point | 10F |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 22L |
| X58/17 | Front vehicle interior power outlet | 42L |
| Z232/62z1 | Cockpit ambiance illumination power supply 1 connector sleeve | 74L |
| Z232/63z1 | Cockpit ambiance illumination power supply 2 connector sleeve | 72L |
| Z232/82z1 | Voltage supply connector sleeve | 75L |
