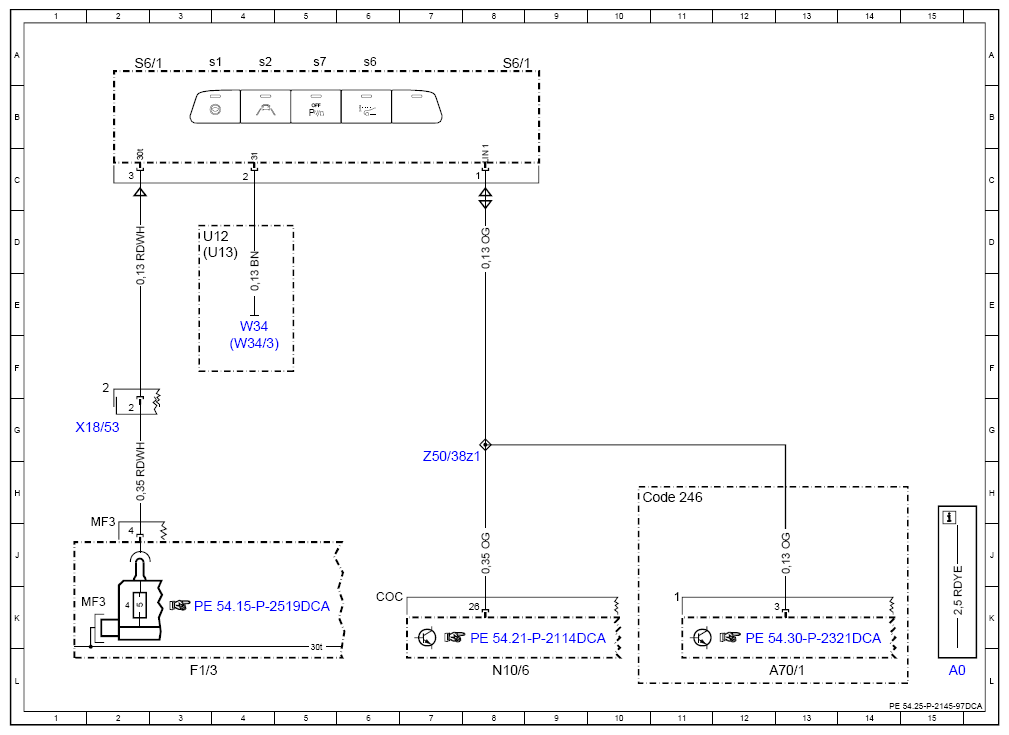

Wiring Diagram For Driver-Side Instrument Panel Button Group - PE54.25-P-2145-97DCA
Model 238 up to model year 2021 Button group S6/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A70/1 | Analog clock | 13L |
| Code 246 | Analog clock | 10H |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3MF3 | Multiple fuse 3 | 2K |
| N10/6 | Front SAM control unit | 8L |
| S6/1 | Driver-side instrument panel button group | 8A |
| S6/1 | Driver-side instrument panel button group | 2A |
| S6/1s1 | Steering-Pilot button | 3A |
| S6/1s2 | Active Lane Keeping Assist button | 4A |
| S6/1s6 | Head-up display button | 6A |
| S6/1s7 | Parking system button | 5A |
| U12 | Valid for left-hand drive vehicles | 3D |
| U13 | Valid for right-hand drive vehicles | 3D |
| W34 | Left footwell ground point | 4E |
| W34/3 | Right footwell ground point | 4F |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 2G |
| Z50/38z1 | Instrument panel LIN connector sleeve | 7G |
