Wiring Diagram For Drive Unit Control Unit - PE54.21-P-2128-97DEA
Model 238 with engine 256.9 as of model year 2021 with code M016 (Uprated engine) Control unit N145/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| CAN C1 | Drive train CAN | 15K |
| CAN HMI | User interface CAN | 19K |
| Code 547 | Connect 20 Entry (NTG6) | 17D |
| Code 548 | Connect 20 MID (NTG6) | 17D |
| Code 549 | Connect 20 HIGH (NTG6) | 17D |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4F |
| Flex E | Chassis FlexRay | 27K |
| Flex E | Chassis FlexRay | 23K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f464 | Fuse 464 | 4L |
| K40/8 | Engine fuse and relay module | 11L |
| K40/8f125 | Fuse 125 | 10L |

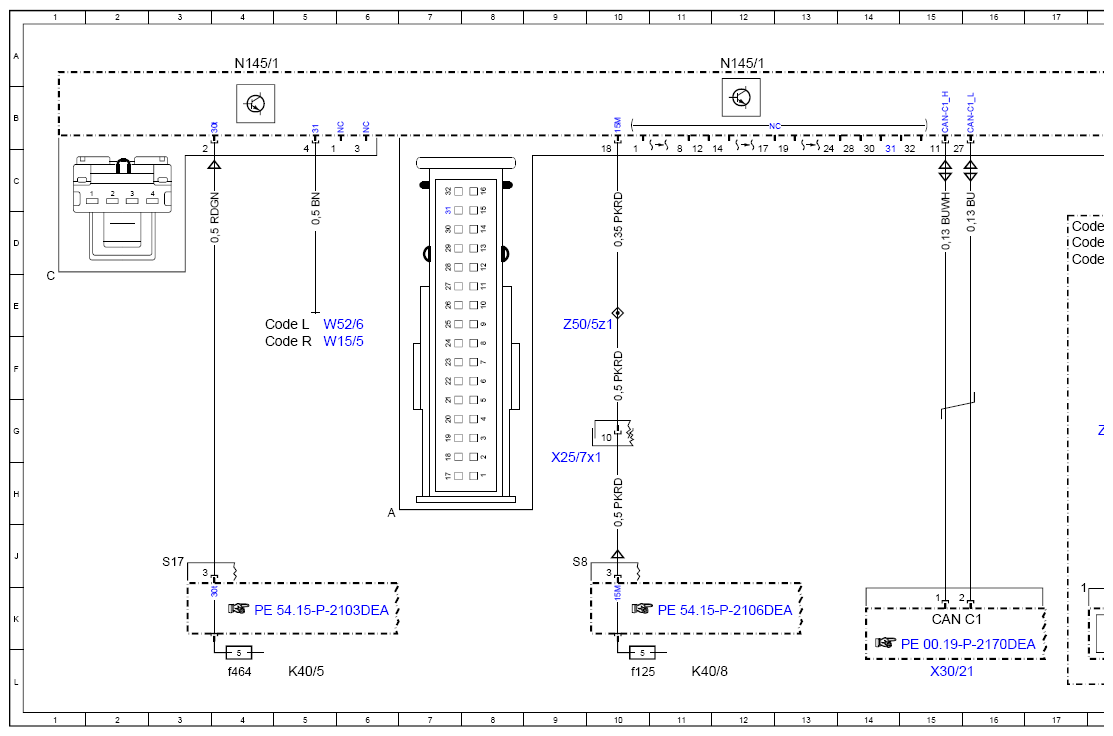

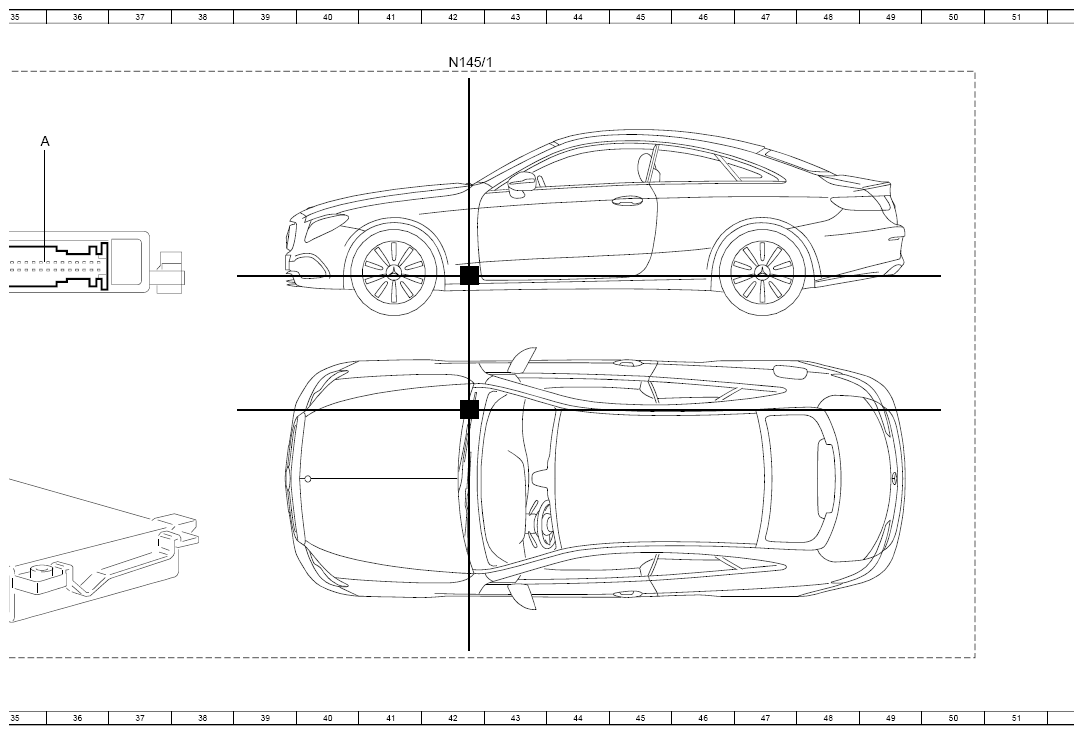

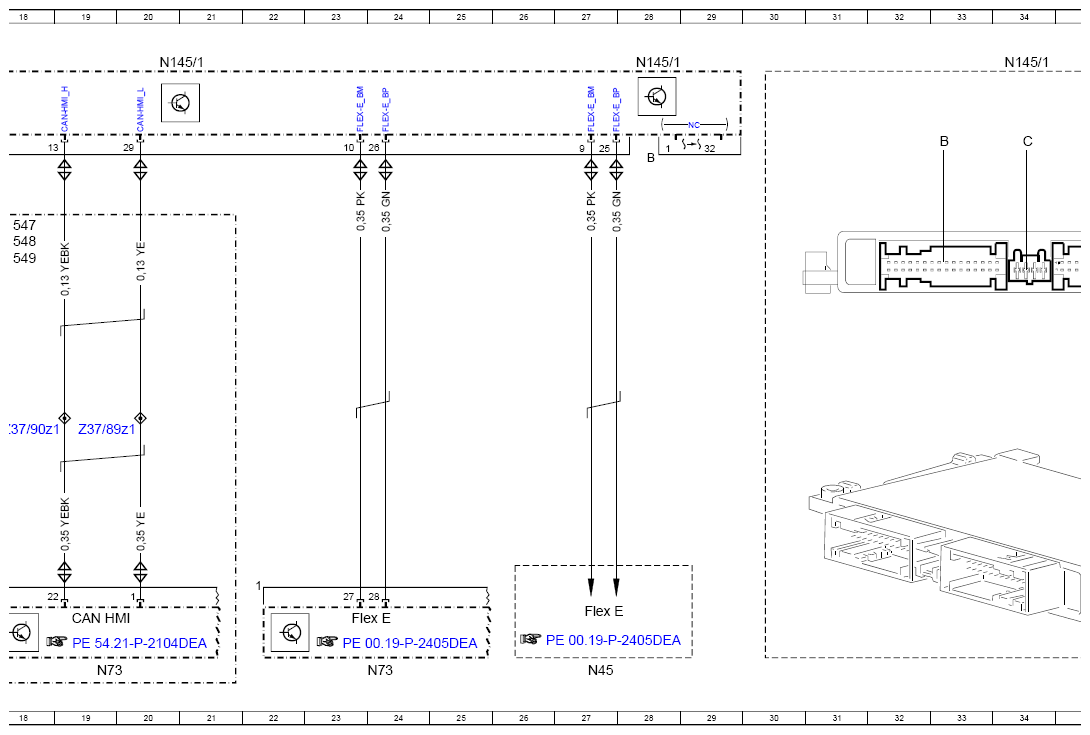

| N145/1 | Drive unit control unit | 4A |
| N145/1 | Drive unit control unit | 12A |
| N145/1 | Drive unit control unit | 20A |
| N145/1 | Drive unit control unit | 28A |
| N145/1 | Drive unit control unit | 34A |
| N145/1 | Drive unit control unit | 42A |
| N45 | All-wheel drive control unit | 27L |
| N73 | Electronic ignition switch control unit | 19L |
| N73 | Electronic ignition switch control unit | 24L |
| W15/5 | Left front footwell ground point | 5F |
| W52/6 | Right center longitudinal member ground point | 5E |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 9H |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 15L |
| Z37/89z1 | User interface CAN (CAN HMD low end sleeve | 19G |
| Z37/90z1 | User interface CAN (CAN HMD high end sleeve | 18G |
| Z50/5z1 | Tml. 15 connector sleeve | 10E |
