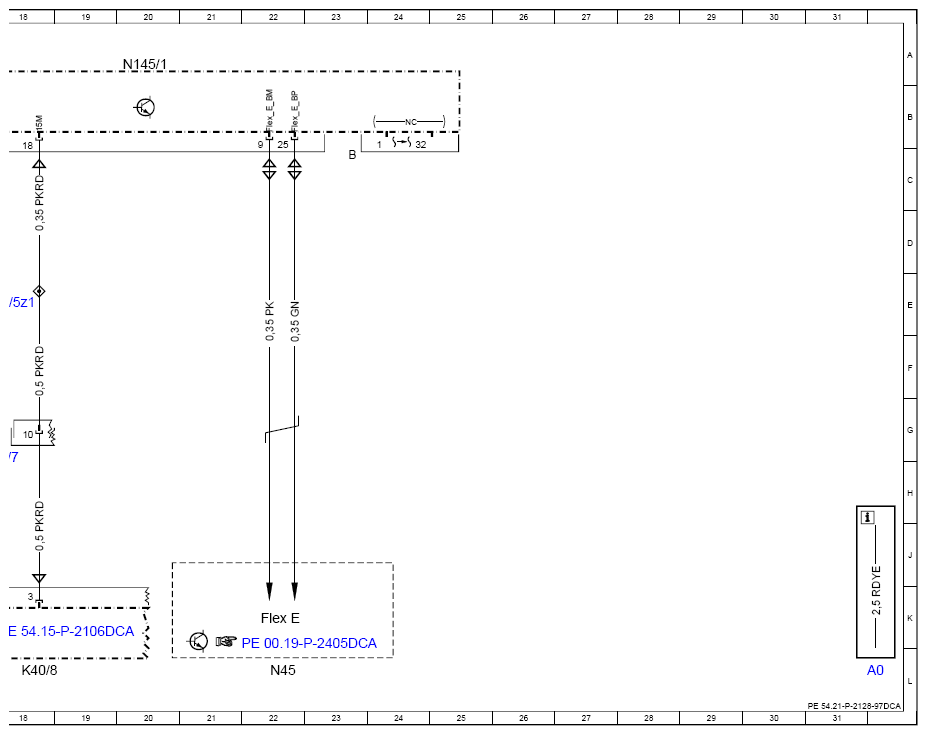

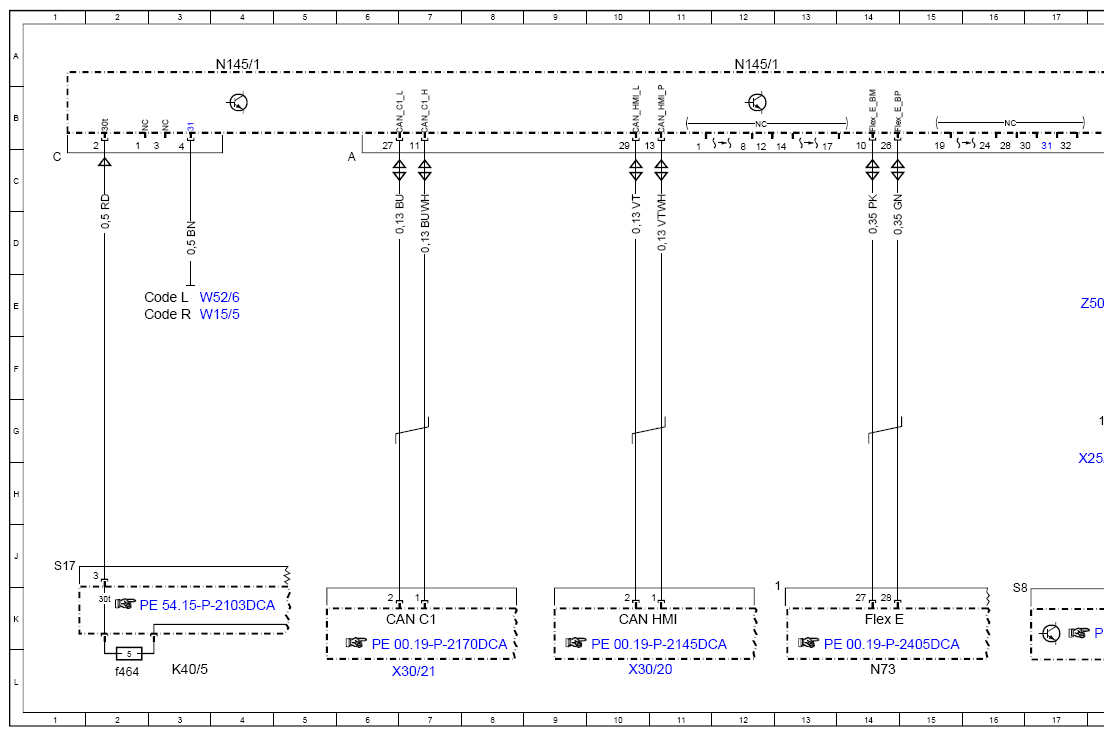

Wiring Diagram For Drive Unit Control Unit - PE54.21-P-2128-97DCA
Model 238 with engine 256.9 up to model year 2021 with code M016 (Uprated engine) Control unit N145/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| CAN C1 | Drive train CAN | 7K |
| CAN HMI | User interface CAN | 10K |
| Code L | LEFT-HAND DRIVE | 2E |
| Code R | RIGHT-HAND DRIVE | 2E |
| Flex E | Chassis FlexRay | 14K |
| Flex E | Chassis FlexRay | 22K |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f464 | Fuse 464 | 2L |
| K40/8 | Engine fuse and relay module | 18L |
| N145/1 | 4A | |
| N145/1 | 12A | |
| N145/1 | 20A | |
| N45 | All-wheel drive control unit | 22L |
| N73 | Electronic ignition switch control unit | 14L |
| W15/5 | Left front footwell ground point | 3E |
| W52/6 | Right center longitudinal member ground point | 3E |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 18H |
| X30/20 | User interface CAN (CAN HMD potential distributor electrical connector | 10L |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 7L |
| Z50/5z1 | Tml. 15 connector sleeve | 18E |
