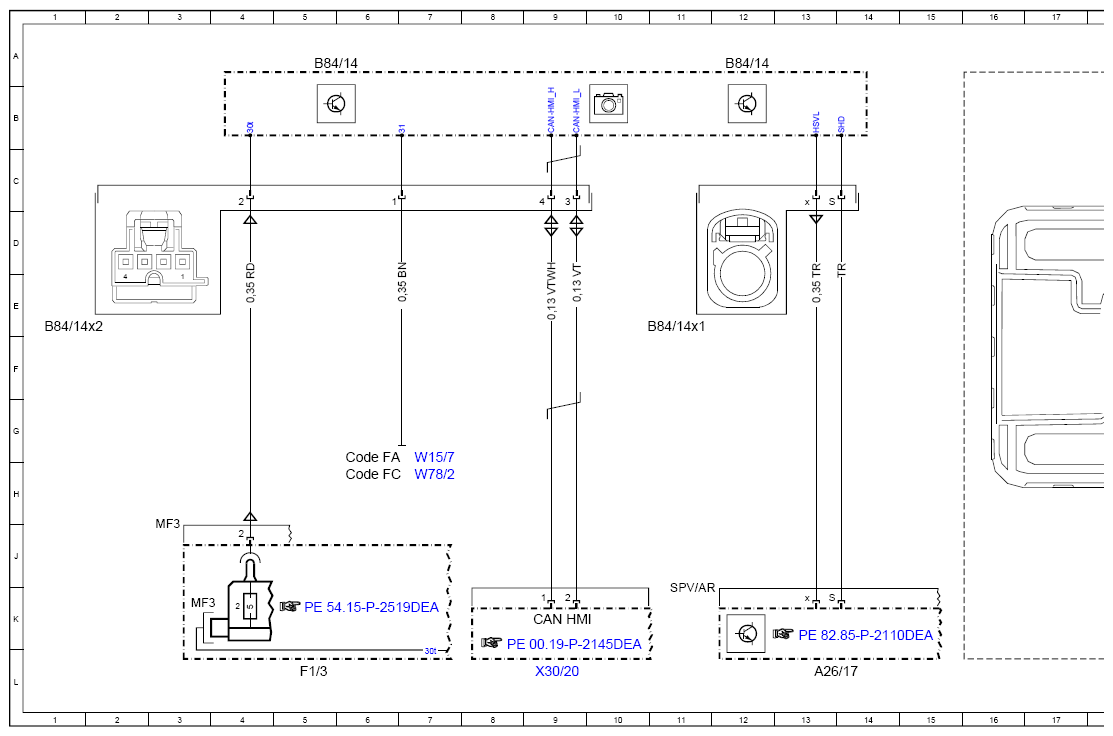

Wiring Diagram For Augmented Reality Camera - PE54.21-P-2159-97DEA
Model 238 as of model year 2021 with code U19 (Augmented reality video)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A26/17 | Head unit | 13L |

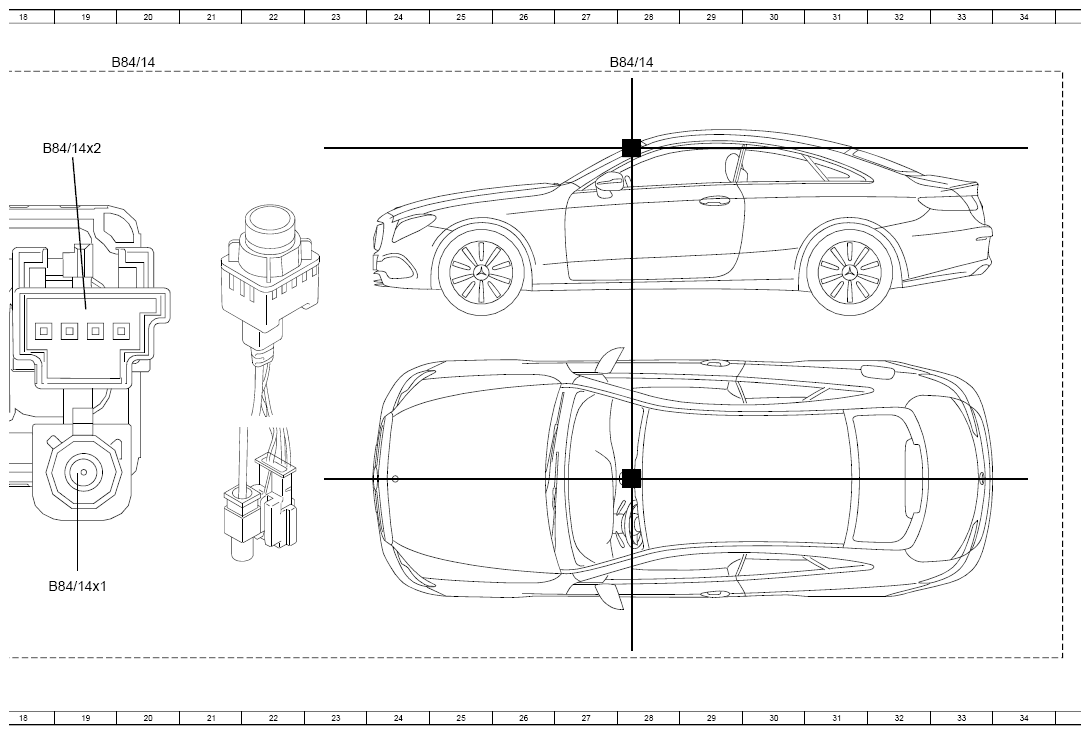

| B84/14 | Augmented reality camera | 5A |
| B84/14 | Augmented reality camera | 12A |
| B84/14 | Augmented reality camera | 20A |
| B84/14 | Augmented reality camera | 28A |
| CAN HM1 | User interface CAN | 9K |
| Code FA | CABRIOLET | 6H |
| Code FC | COUPE | 6H |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF3 | Multiple fuse 3 | 3K |
| W15/7 | Right front footwell ground point | 7H |
| W78/2 | Roof ground point 2 | 7H |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 9L |
