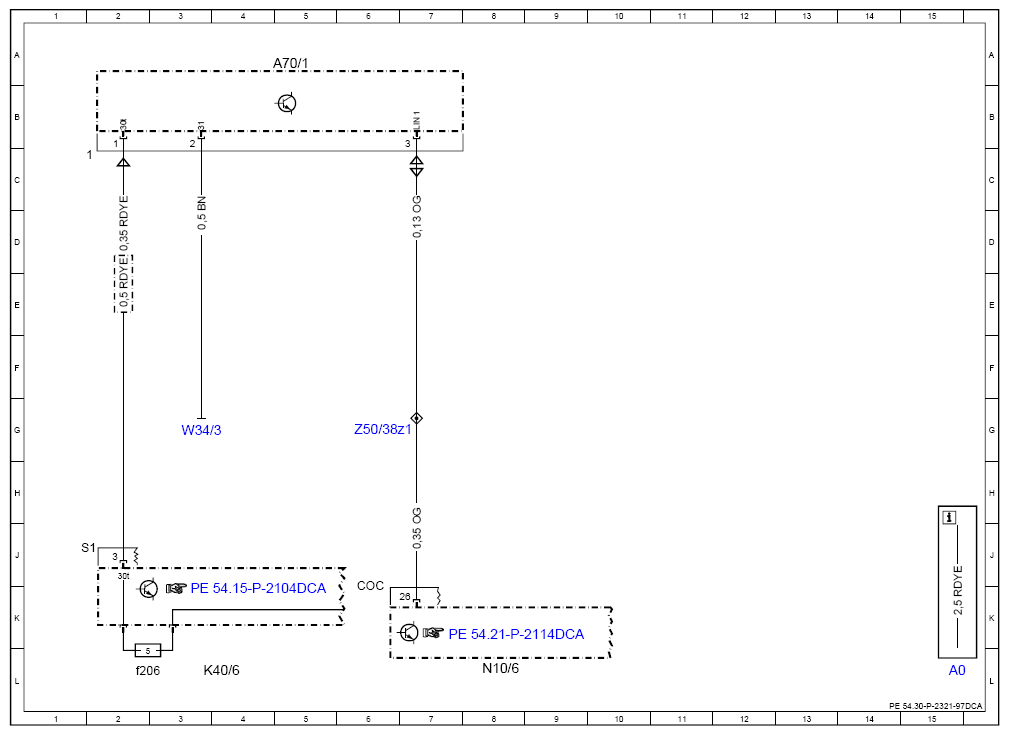

Wiring Diagram For Analog Clock - PE54.30-P-2321-97DCA
Model 238 up to model year 2021 with code 246 (Analogue clock) Analog clock A70/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| A70/1 | Analog clock | 5A |
| Code 246 | Analog clock | - |
| K40/6 | Driver-side fuse and relay module | 4L |
| K40/6f206 | Fuse 206 | 2L |
| N10/6 | Front SAM control unit | 8L |
| W34/3 | Right footwell ground point | 3G |
| Z50/38z1 | Instrument panel LIN connector sleeve | 6G |
