Hand Motion Sensor Wiring Diagram - PE54.21-P-2166-97DEA
Model 238.3 as of model year 2021 with code 77B (Contactless gesture control at front) B84/15
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |

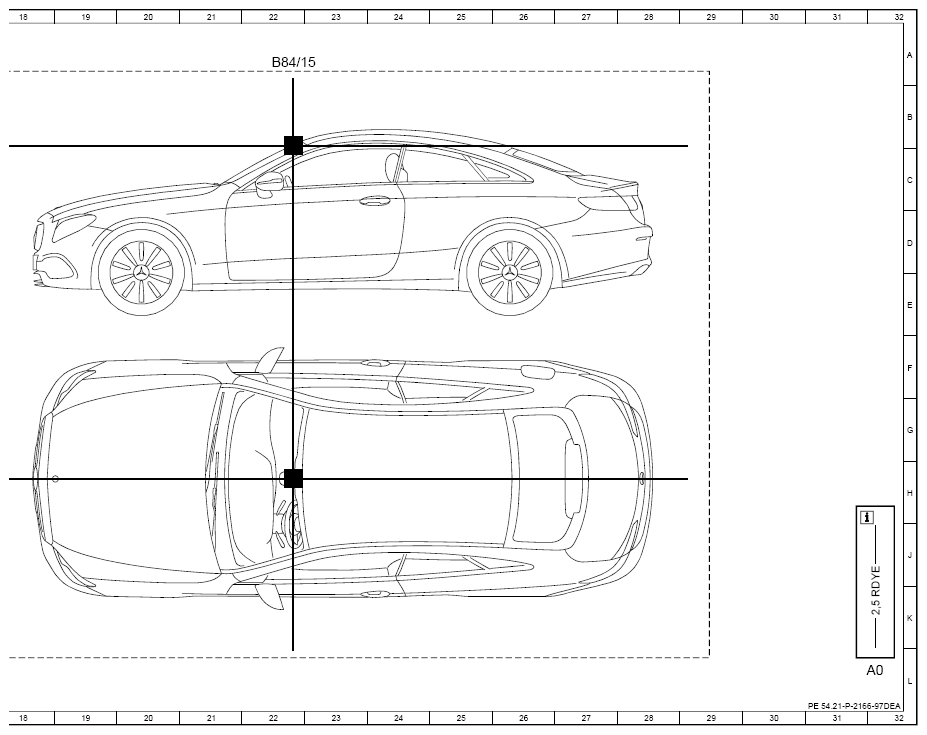

| B84/15 | Hand motion sensor | 6A |
| B84/15 | Hand motion sensor | 22A |

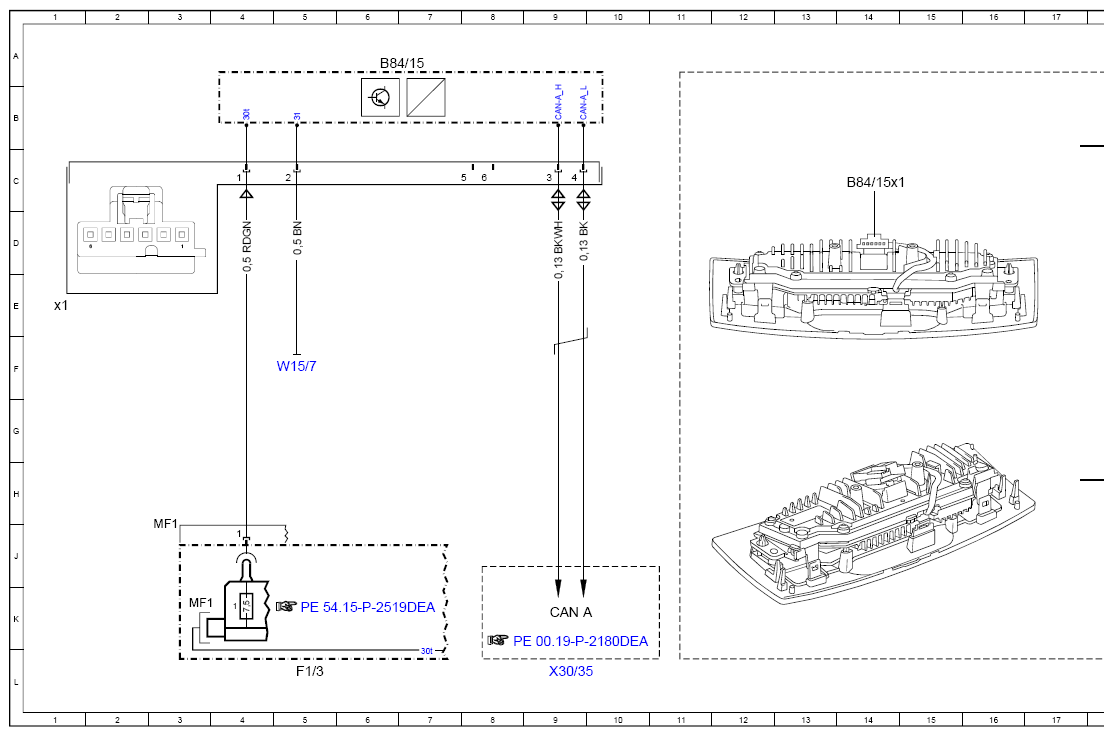

| B84/15x1 | Hand motion sensor electrical connector | 1E |
| CAN A | Telematics CAN | 9K |
| F1/3 | Passenger-side A-pillar fuse box | 5L |
| F1/3MF1 | Multiple fuse 1 | 3K |
| W15/7 | Right front footwell ground point | 5F |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 9L |
