Remove/Install Short And Long-Range Radar Sensor - AR54.21-P-0702LWE
Model 213, 238
With Code 233 (Adaptive cruise control Plus (DISTRONIC PLUS))

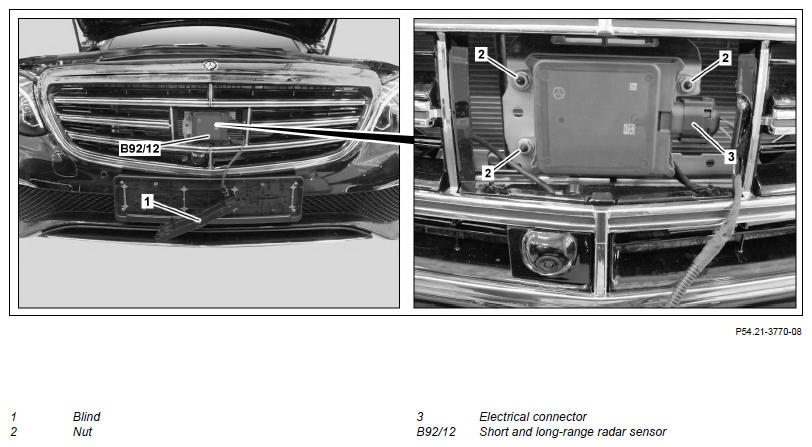

Fig 1: Short And Long-Range Radar Sensor Components Location - Model 238 With Code 233 (Shown On Model 213)
Shown On Model 213 without Mercedes star in the radiator grille
| Topical note | Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Unclip and remove cover (1) from radiator trim. | Model 213 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) If cover (1) is installed. |
Fig 2 |
| 1.2 | Remove Mercedes star from radiator grille. | If a Mercedes star is installed. |
AR88.40-P-4050LW |
| 2 | Unscrew nuts (2). | ||
| 3 | Remove short and long range radar sensor (B92/12) and disconnect electrical connector (3). | ||
| 4 | Install in the reverse order | ||
| 5 | Commission the short-and long-range radar sensor (B92/12). | When short and long range radar sensor (B92/12) is being replaced. | |
| Model 213 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) | AD00.00-P-2000-04B | ||
| Model 238 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) | AD00.00-P-2000-06LWO | ||
| 6 | Calibrate short and long-range radar sensor (B92/12). | ||
| Model 213 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) | AD00.00-P-2000-04B | ||
| Model 238 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) | AD00.00-P-2000-06LWO |
