Remove/Install Pyrofuse - AR54.10-P-1180LWO
Model 238
With Code B01 (48V technology)

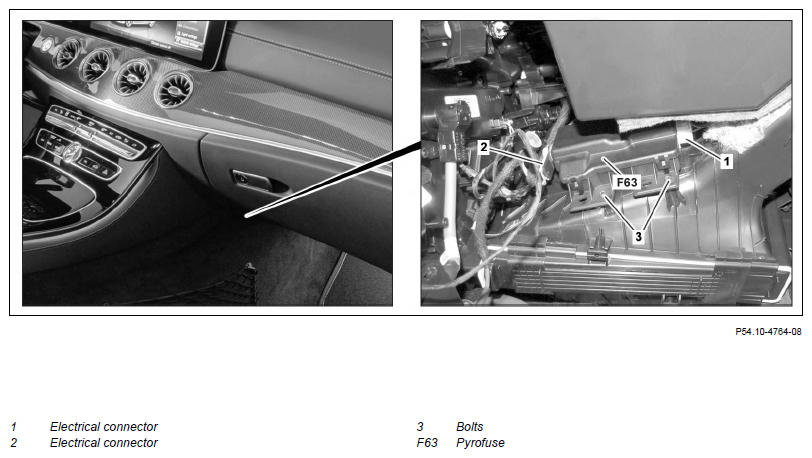

Shown On Model 238.### 1#
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove paneling below instrument panel on passenger side | AR68.10-P-1502LWE | |
| 2 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LWO | |
| 3 | Remove bolts (3) | ||
| 4 | Pull pyrofuse (F63) in downward direction until electrical connections (1, 2) are accessible | ||
| 5 | Disconnect electrical connection (1) | ||
| 6 | Release and disconnect electrical connector (2) | ||
| 7 | Remove pyrofuse (F63) | ||
| 8 | Install in the reverse order | ||
| 9 | Connect diagnostic system and erase all fault memories | ||
| AD00.00-P-2000-06LWO |
