Remove/Install PARKTRONIC Warning Buzzer - AR54.65-P-0023LWP

Model 238.4

With Code 235 (Active Parking Assist)

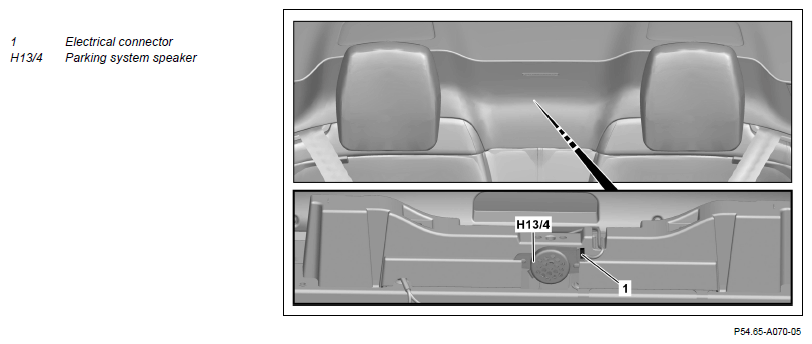

Fig 1: PARKTRONIC Warning Buzzer Components Location - Model 238.4 With Code 235

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove vehicle interior trim from roll bar.		AR68.30-P-1380LWR
2	Release parking system speaker (H13/4) from trim on crossmember.	Replace double-sided adhesive tape. Mounting wedge	Fig 2
3	Disconnect electrical connector (1) and remove parking system speaker (H13/4).
4	Install in the reverse order.

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
