Remove/Install PARKTRONIC Warning Buzzer - AR54.65-P-0023LWO

Model 238.3

With Code 235 (Active Parking Assist)

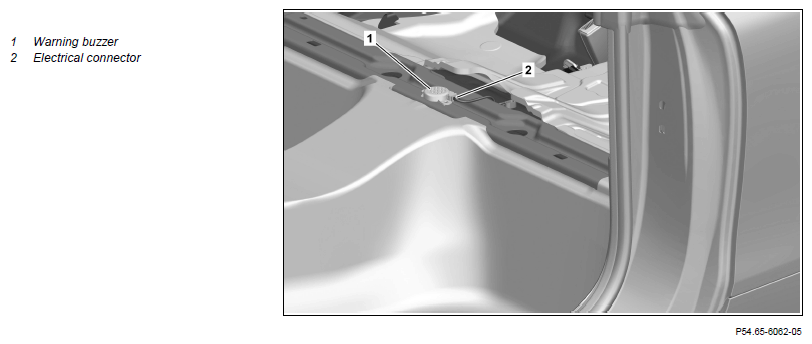

Fig 1: PARKTRONIC Warning Buzzer Components Location - Model 238.3 With Code 235

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion in rear passenger compartment.		AR91.12-P-1020LW
2	Release parking system speaker (H13/4) from body.	Replace double-sided adhesive tape.
3	Disconnect electrical connector (2) and remove parking system speaker (H13/4).
4	Install in the reverse order.
