Remove/Install PARKTRONIC System (PTS) Sensors In Rear Bumper - AR54.65-P-0002LWO
Model 238
With Code 220 (PARKTRONIC system (PTS))
Model 238
With Code 235 (Active Parking Assist)

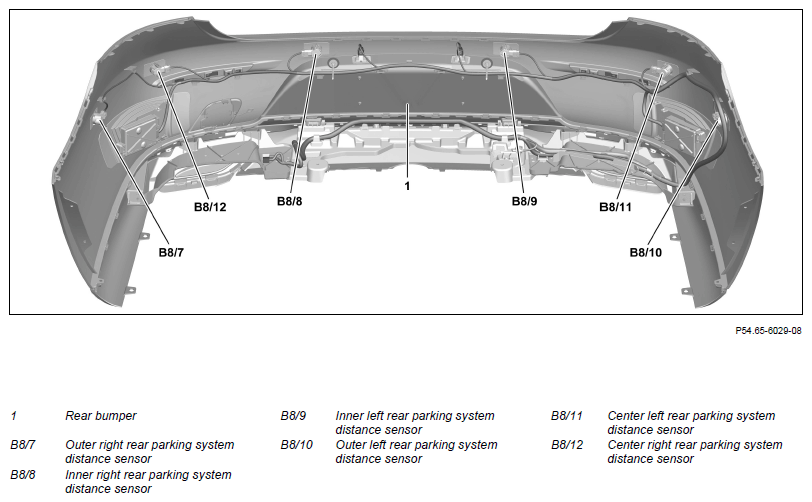

Fig 1: PARKTRONIC System (PTS) Sensors In Rear Bumper Components Location - Model 238 With Code 220, 235
Shown on removed rear bumper (1)
| Notice | Information on painting PARKTRONIC system sensors | AH98.00-P-9019-02A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear bumper (1). | AR88.20-P-2200LWO | |
| 2 | Disconnect electrical connector from rear parking system distance sensor (B8/7, B8/8, B8/9, B8/10, B8/11 or B8/12). | ||
| 3 | Unclip rear parking system distance sensor (B8/7, B8/8, B8/9, B8/10, B8/11 or B8/12) from holder and remove. | ||
| 4 | Install in the reverse order. |
