Remove/Install PARKTRONIC System (PTS) Sensors In Front Bumper - AR54.65-P-0001LWE
Model 213, 238
With Code 220 (PARKTRONIC system (PTS))
Model 213, 238
With Code 235 (Active Parking Assist)
Shown on removed front bumper

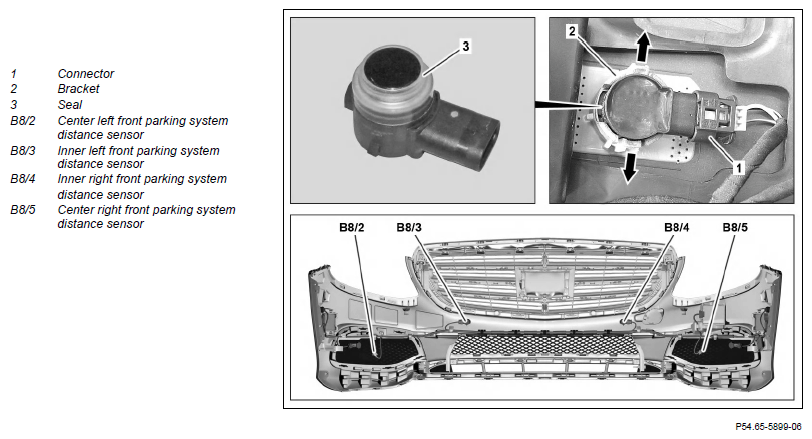

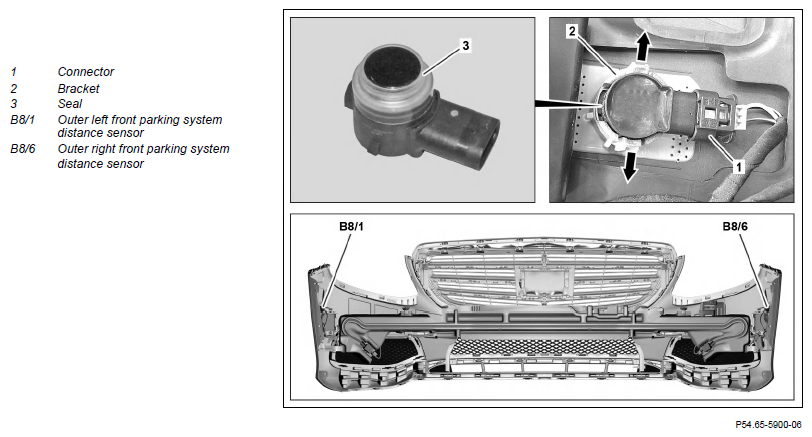

Fig 1: PARKTRONIC System (PTS) Sensors In Front Bumper Components Location - Model 238 With Code 220, 235
Shown on removed front bumper
| Notice | Information on painting PARKTRONIC system sensors | AH98.00-P-9019-02A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove front bumper. | With removed distance sensor (B8/2, B8/3, B8/4 or B8/5). | AR88.20-P-2000LWE |
| 2 | Detach fender liner in front area of fender until distance sensor (B8/1 or B8/6) is accessible. | With removed distance sensor (B8/1 or B8/6). | AR88.10-P-1300LWE |
| 3 | Remove impact absorber. | With removed distance sensor (B8/2, B8/3, B8/4 or B8/5). | |
| Notice | General information on the impact absorber | AH88.20-P-1000-01A | |
| Notice | Notes on pedestrian protection sensor | Model 213, 238 with code 220 (PARKTRONIC system (PTS)) with code U60 (Pedestrian protection - Active hood) Model 213, 238 with code 235 (Active Parking Assist) with code U60 (Pedestrian protection - Active hood) |
AH91.60-P-0001-01A |
| 4 | Disconnect plugs (1) from distance sensor (B8/1, B8/2, B8/3, B8/4, B8/5 or B8/6). | ||
| 5 | Release catch hooks of corresponding holder (2) in direction of arrow and remove distance sensor (B8/1, B8/2, B8/3, B8/4, B8/5 or B8/6) from holder (2). | If problems exist, ↓ Replace relevant seal (3). |
|
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check function of Parking Pilot. |
