Remove/Install DC/AC Converter Control Unit - AR54.21-P-1600LWP
Model 238.4
With Code U67 (230V socket in interior compartment)
Model 238.4
With Code U80 (115V socket)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Detach ground line of on-board electrical system battery | AR54.10-P-0003LWO | |
| 2 | Remove side paneling in left side of trunk | AR68.30-P-4800LWR | |

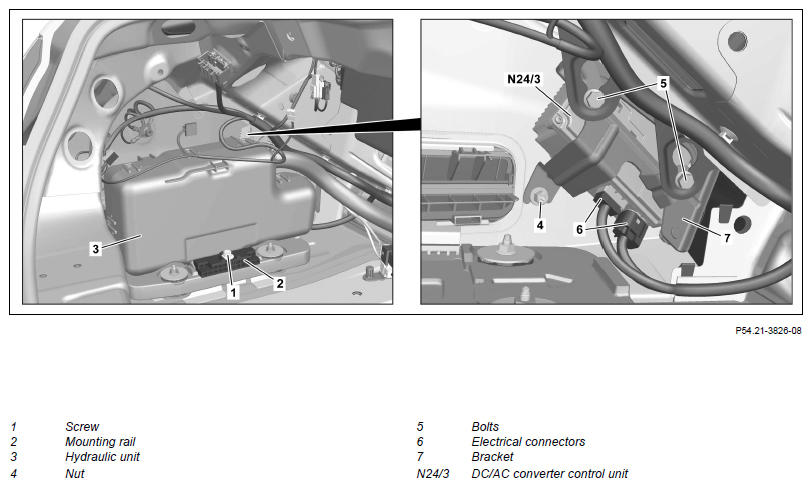

| 3 | Remove bolt (1) and remove mounting rail (2) | *BA77.37-P-1001-01E | |
| 4 | Place hydraulic unit (3) with connected lines to one side | ||
| 5 | Separate electrical connections (6) | ||
| 6 | Unscrew nut (4) | ||
| 7 | Loosen bolts (5) | ||
| 8 | Unhook DC/AC converter control unit (N24/3) with bracket (7) from side wall and remove | ||
| 9 | Detach DC/AC converter control unit (N24/3) from bracket (7) | When replacing DC/AC converter control unit (N24/3). | |
| 10 | Install in the reverse order |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA77.37-P-1001-01E | Bolt, mounting rail for hydraulic unit to vibration damper | Nm | 23 |
