Remove/Install Augmented Reality Camera - AR54.30-P-0004LW
Model 213, 238
As Of Model Year 2021
With Code 21U (Video recording function (Dashcam))
Model 213, 238
As Of Model Year 2021
With Code U19 (Augmented reality video)
Shown On Model 213.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

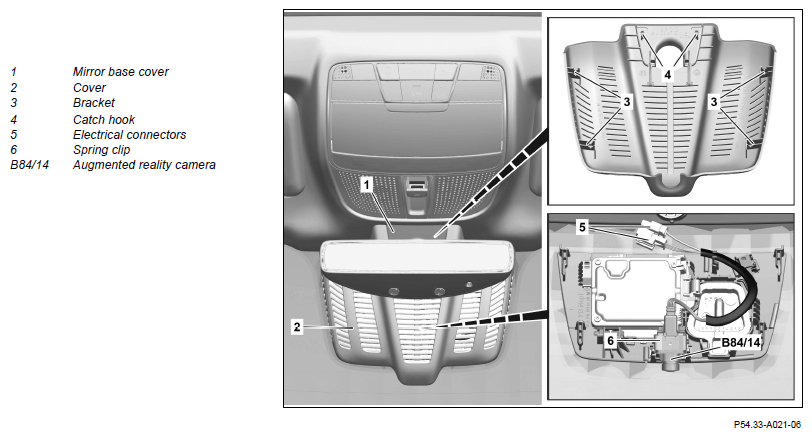

| 2 | Release catch hooks (4) and remove mirror base cover (1). | Fig 2 | |
| 3 | Unclip cover (2) from holders (3) and remove. | Fig 2 | |
| 4 | Release electrical connections (5) and disconnect. | ||
| 5 | Remove spring clip (6) and remove augmented reality camera (B84/14). | Do not touch the lens of the augmented reality camera (B84/14). Otherwise, soiling could lead to an augmented reality camera (B84/14) malfunction. |
|
| 6 | Install in the reverse order. | ||
| 7.1 | Perform commissioning of augmented reality camera (B84/14). | If the augmented reality camera (B84/14) was replaced. | |
| Model 213 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 213 as of model year 2021 with code U19 (Augmented reality video) |
AD00.00-P-2000-04B | ||
| Model 238 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 238 as of model year 2021 with code U19 (Augmented reality video) |
AD00.00-P-2000-06LWO | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B | ||
| 7.2 | Calibrate augmented reality camera (B84/14). | If the head unit (A26/17) has been replaced or if the camera position has been changed (e.g. lens replacement, removal of augmented reality camera (B84/14)). | |
| Model 213 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 213 as of model year 2021 with code U19 (Augmented reality video) |
AD00.00-P-2000-04B | ||
| Model 238 as of model year 2021 with code 21U (Video recording function (Dashcam)) Model 238 as of model year 2021 with code U19 (Augmented reality video) |
AD00.00-P-2000-06LWO | ||
| 000 588 00 23 00 Adjusting gauge | WS82.00-P-0028B | ||
| 000 588 11 21 00 Adjustment device | WS82.00-P-0151B |
