(Disconnect/Connect Battery Ground Line - AR54.10-P-0003G)
Model 461.217/219/227/229/238/239/249/266/267/321/322/323/326/327/328/329/335/336/337/338/341/365/366/367/368/401/402/403/404/405/450/451/452/454/455/456/458/459
Model 463.202/237/346
up to model year 2013
Model 463.204/206/207/208/209/220/221/222/224/225/227/228/230/231/232/233/240/243/244/245/246/247/249/250/254/270/271/300/303/304/306/307/308/309/320/321/322/323/324/325/327/328/330/331/332/333/336/340/341
up to model year 2013
Model 463.236
up to model year 2013
Except Code 979 (Special protection MB Guard)
Model 463.241/248
up to model year 2008
Except Code 979 (Special protection MB Guard)
MODIFICATION NOTES
| 19.03.2004 | Step "mount/detach quiescent current retention unit" removed. Step "Release radio, set time, set time for stationary heater" added. |
Shown On Model 460, 461 except 461.302/332/342/345, model 463 up to December 2000
Shown On Model 463 as of December 2000
| Remove/install | |||
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Activate service mode in Tele-Aid emergency call system | Model 463.243/244/245/250/309/322/323/332/333, 463.247/254/270 up to 4/1/07 up to model year 2013 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) Model 463.248 up to 4/1/07 up to model year 2008 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) except code 979 (Special protection MB Guard) |
AR82.95-P-0005-03GR |
| Information on Tele Aid emergency call system | Model 463.243/244/245/250/309/322/323/332/333, 463.247/254/270 up to 4/1/07 up to model year 2013 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) Model 463.248 up to 4/1/07 up to model year 2008 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) except code 979 (Special protection MB Guard) |
AH82.95-P-0001-01GA | |
| 2 | Remove cupholder | ||
| 3 | Open hood | Model 461.217/219/227/229/238/239/249/266/267/321/322/323/326/327/328/329/335/336/337/338/341/365/366/367/368/401/402/403/404/405/450/451/452/454/455/456/458/459 |
AR88.40-P-1000GG |
| 4 | Remove cover (1) on wheel well | ||

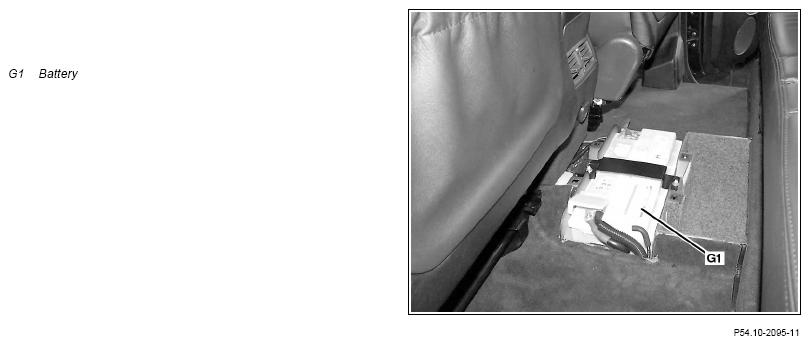

| 5 | Remove cover of battery (G1) in rear footwell | ||

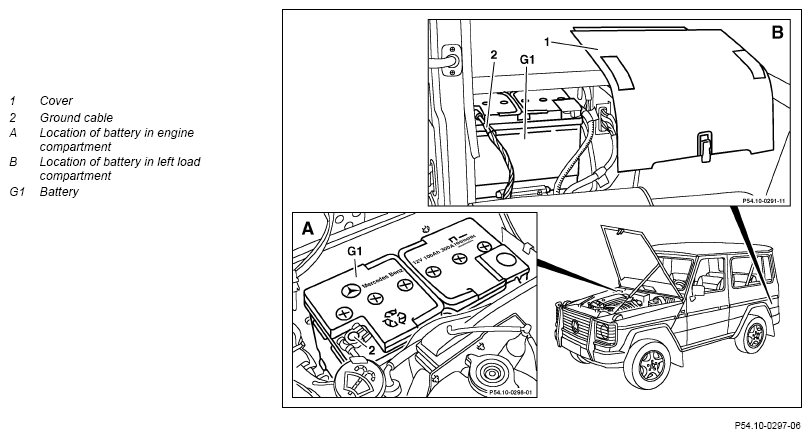

| 6 | Disconnect ground line (2) from battery (G1) | ||
| Topical note | Notes on battery |
|
AH54.10-P-0001-01A |
| 7 | Install in the reverse order | ||
| 8 | Deactivate service mode in Tele-Aid emergency call system | Model 463.243/244/245/250/309/322/323/332/333, 463.247/254/270 up to 4/1/07 up to model year 2013 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) Model 463.248 up to 4/1/07 up to model year 2008 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) except code 979 (Special protection MB Guard) |
AR82.95-P-0005-03GR |
| Information on Tele Aid emergency call system | Model 463.243/244/245/250/309/322/323/332/333, 463.247/254/270 up to 4/1/07 up to model year 2013 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) Model 463.248 up to 4/1/07 up to model year 2008 with code ET2 (MB phone with integr. Tele Aid emergency call sys.) except code 979 (Special protection MB Guard) |
AH82.95-P-0001-01GA | |
| 9 | Perform basic programming | Model 463.202/237/346 up to model year 2013 Model 463.236 up to model year 2013 except code 979 (Special protection MB Guard) Model 463.243/244/245/246/247/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341 up to model year 2013 |
AR00.19-P-0200P |
| 10 | Release radio | ||
| 11 | Set time on instrument cluster (A1) | ||
| 12 | Set time on timer of stationary heater |
