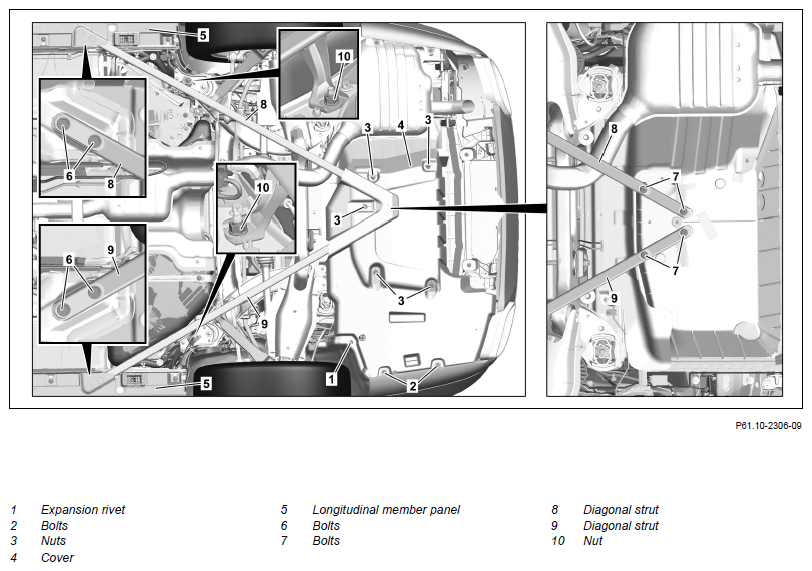

Remove/Install Rear Diagonal Struts - Ar61.10-P-5142LWP
Model 205.4, 213.2, 238.4
Shown on model 238.442
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove left and right underfloor paneling. | Model 205.4 | AR61.30-P-1001LW |
| Model 213.2, 238.4 | AR61.30-P-1001LWE | ||
| 2 | Release longitudinal member panels (5) in the area of the diagonal struts (8, 9). | Model 205.4 | AR88.80-P-6000LW |
| Model 213.2 | AR88.80-P-6000LWE | ||
| Model 238.4 | AR88.80-P-6000LWO | ||
| 3 | Remove expansion rivet (1). | Model 205.4 with engine 264, 274, 651, 654 Model 213.2 with engine 264, 274, 642, 654, 656 Model 238.4 with engine 264, 274, 276, 654 |
|
| 4 | Unscrew bolts (2). | Model 205.4 with engine 264, 274, 651, 654 Model 213.2 with engine 264, 274, 642, 654, 656 Model 238.4 with engine 264, 274, 276, 654 |
|
| 5 | Unscrew nuts (3) and remove cover (4). | ||
| 6 | Unscrew nuts (10). | *BA61.10-P-1009-01L | |
| 7 | Remove screws (6, 7) and remove diagonal struts (8, 9). | Do not use an impact wrench. Otherwise the threads can be damaged. |
*BA61.10-P-1008-01L |
| 8 | Install in the reverse order |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 205 | Model 213 | |
|---|---|---|---|---|
| BA61.10-P-1008-01L | Bolt, rear diagonal strut to spare wheel well/body | Nm | 70 | 50 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA61.10-P-1008-01L | Bolt, rear diagonal strut to spare wheel well/body | Nm | 70 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA61.10-P-1009-01L | Nut, rear diagonal strut bracket to stop plate | M10 | Nm | 50 | 50 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 238 | ||
|---|---|---|---|---|
| BA61.10-P-1009-01L | Nut, rear diagonal strut bracket to stop plate | M10 | Nm | 50 |
