Sealing Seam After Repairing Roof - Ar97.10-P-4000-05LWO
Model 238.3
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
When sealing seams we differentiate between:
- smoothing/wiping (A)
- sealing/spreading (B)

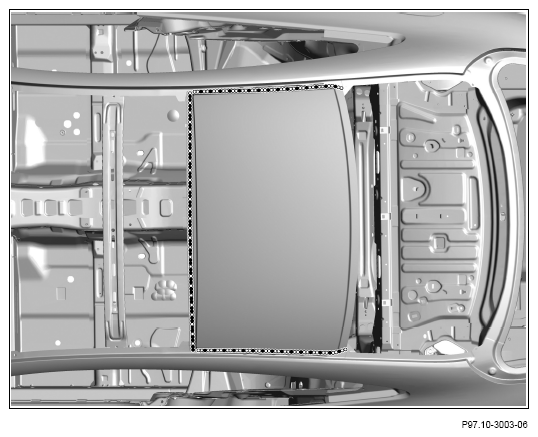

Area of center roof paneling, model 238 except code 413 (Panoramic sliding roof)

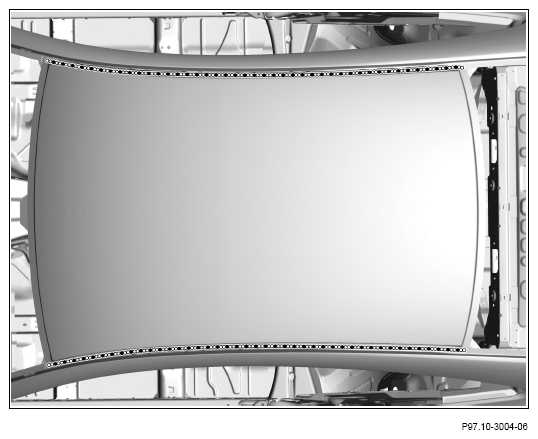

Area of roof paneling rear section, model 238 with code 413 (Panoramic sliding roof)
- Seal connecting flange spot welds and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Keep seam sealant material away from windows or detachable parts.
It is necessary to seal accessible spot weld flanges on both sides.
