Rear End Damage Seam Sealing Following Repair - Ar97.10-P-4000-02LWO
Model 238
MODIFICATION NOTES
| 25.06.2021 | Picture changed. | P97.10-3014-09 | |
| 25.06.2021 | Picture added. | P97.10-A052-06 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
A differentiation is made between the following during the processing of seam seals:
- smoothing/wiping (A)
- Sealing/spreading (B).

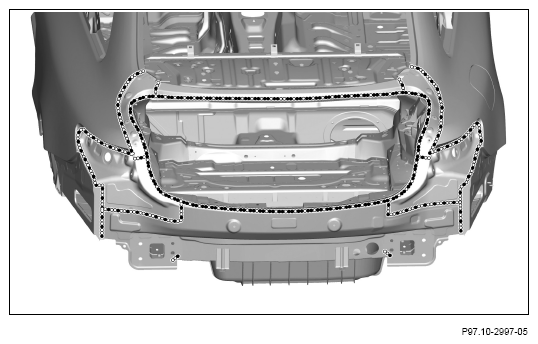

Rear area, shown on model 238.3

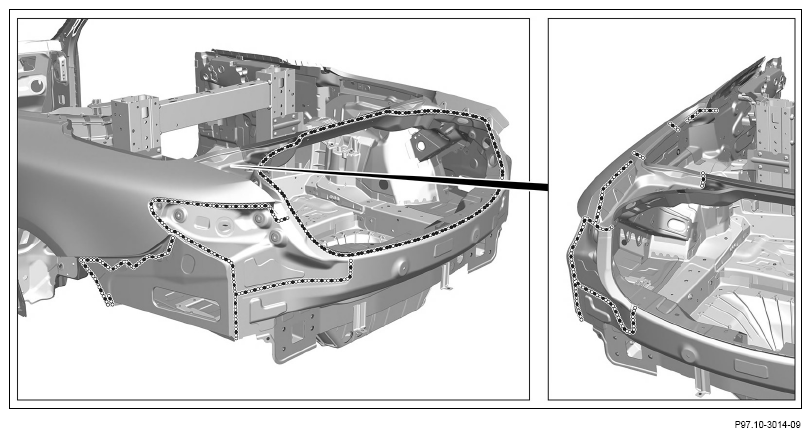

Rear area, area of rear fender and rear wheel arch, shown on model 238.3 on left side of vehicle

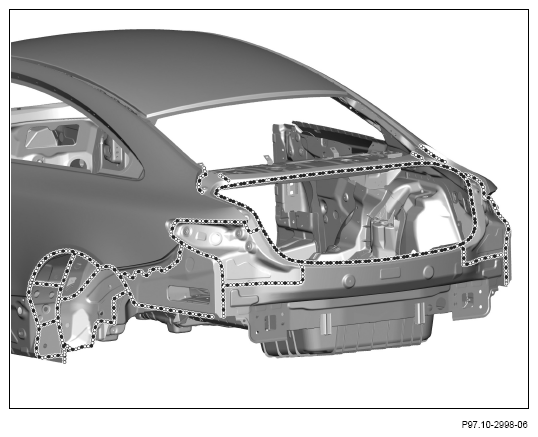

Rear area, shown on model 238.4 on left side of vehicle

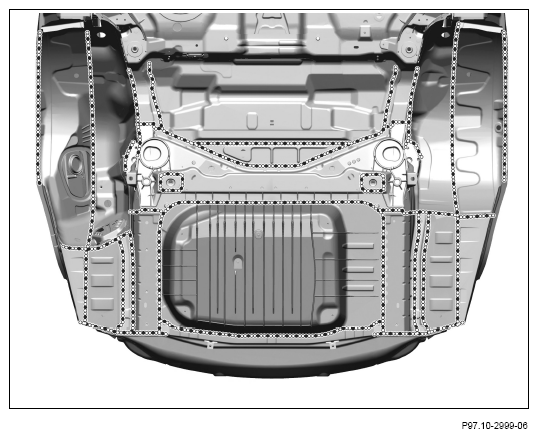

Rear area underbody, shown on model 238.3

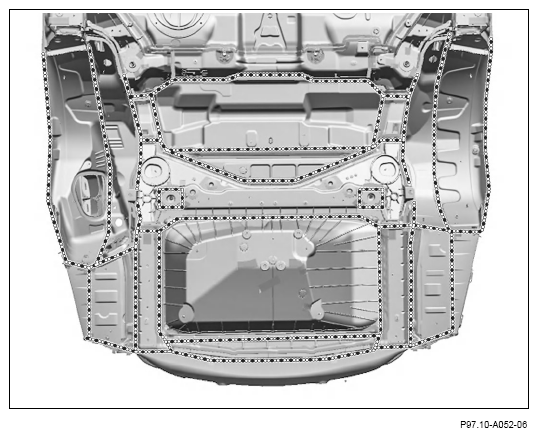

Underbody rear area, shown on model 238.4
- Seal connecting flange spot welds and riveted joints of repaired area with seam sealing material.
Observe standard sealing.
Seal only primed body parts.
Do not seal thread of weld nuts and threaded pins as well as drain openings and contact surfaces of axle attachments washers or detachable parts with seam sealant material.
Seal accessible spot weld flanges on both sides.
- Insert grommets and feed-through grommets with seam sealant material.
