Separate TAILLAMP Reinforcement - Ar63.20-P-2011-01LWO

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

Model 238

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

The following repair materials must be used:

• Zinc dust paint

Courtesy of MERCEDES-BENZ USA

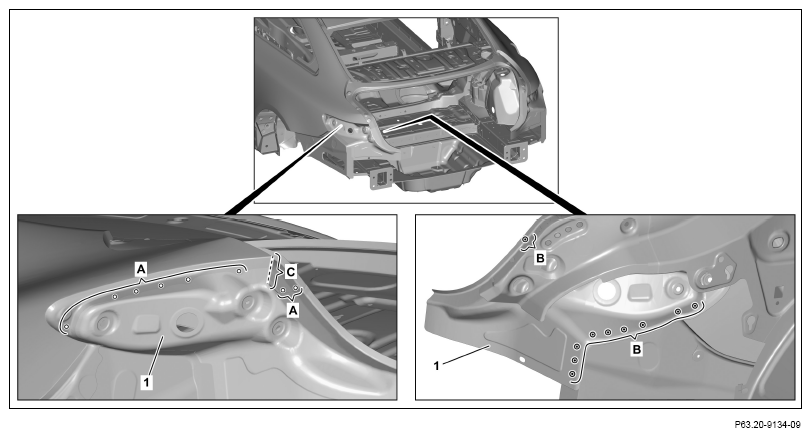

1. Expose spot welds on rear lamp reinforcement (1) and drill with Ø 6.5 mm bit (areas A).
2. Expose spot welds on rear lamp reinforcement (1) and cut off from inside (areas B).
3. Expose and cut MIG solder seam on rear lamp reinforcement (1) (area C).
4. Remove rear lamp reinforcement (1).

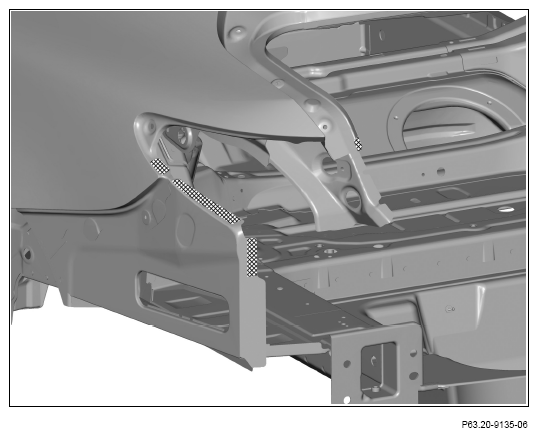

5. Grind mating surfaces down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove grinding dust and drill chips.
7. Coat insides of spot weld flanges with zinc dust paint.

Courtesy of MERCEDES-BENZ USA
