Remove Rear Fender Complete - Ar63.50-P-1401-01LWO

Model 238.3

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

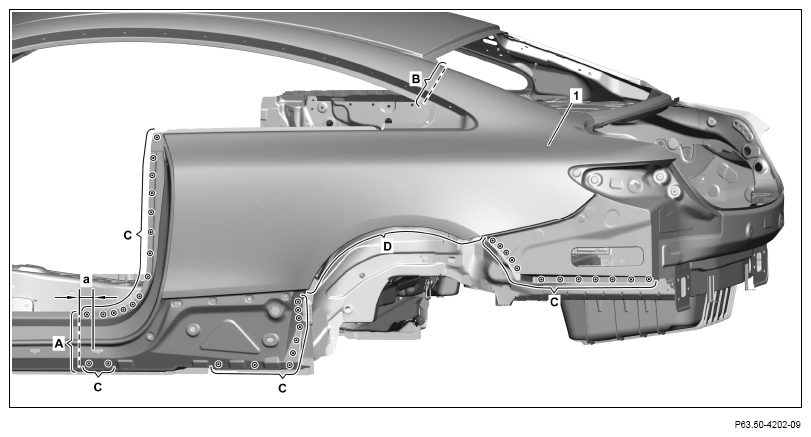

1. Mark separating points on rear fender (1) and cut (areas A and B).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

   Dimensions  :

   a approx. 60 mm

   Mark separating point along Y-markings (area B).

   The Y-marking is designed as a half-round disengagement shift tube in the are of the side window.

2. Expose spot welds on rear fender (1) and cut out (areas C).
3. Separate adhesive bead between outer rear wheel well and rear fender (1) (area D).

   The rear fender is bonded to the outer rear wheel well (1).

   Courtesy of MERCEDES-BENZ USA

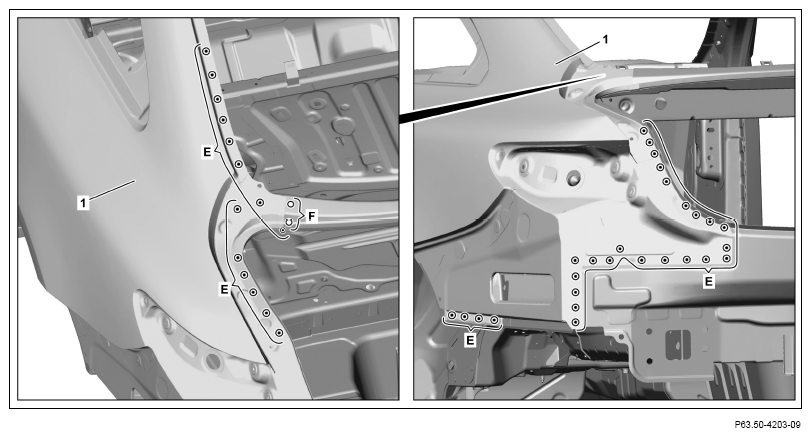

4. Expose spot welds on rear fender (1) and cut out (areas E).
5. Expose spot welds on rear fender (1) and drill with Ø 6.5 mm bit (area F).

   Courtesy of MERCEDES-BENZ USA

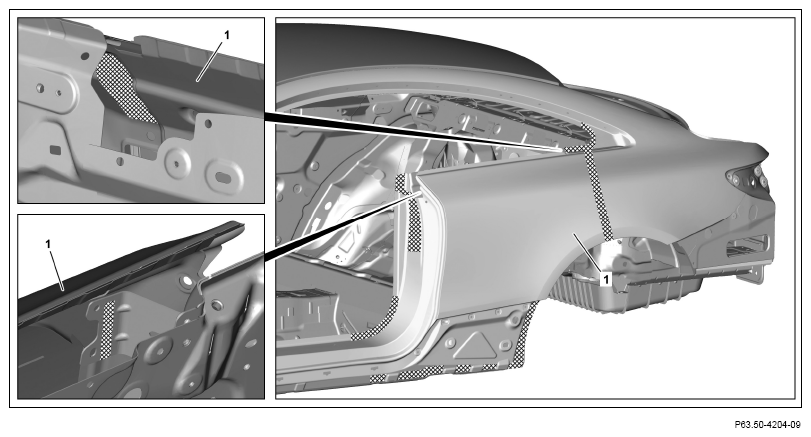

6. Heat rear fender (1) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

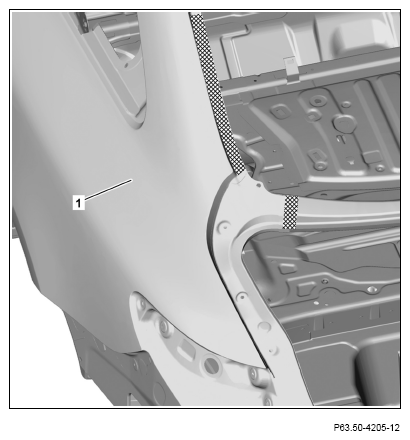

7. Heat rear fender (1) in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

8. Remove rear fender (1).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

9. Remove remaining adhesive in area of outer rear wheel well.

   The height of the remaining adhesive should be max. 2 mm Always remove loose adhesive.

10. Repair bare points in area of outer rear wheel well with primer stick.

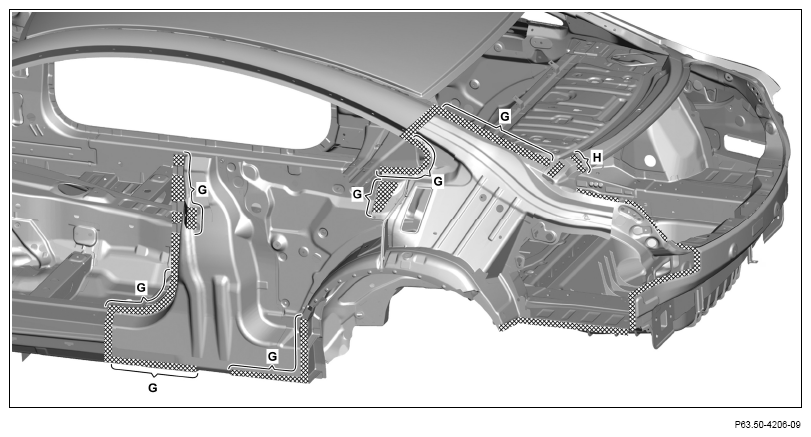

11. Sand down mating surfaces to bare metal in cross-hatched areas.

    Grind mating surfaces down to bare metal on inside (area H).

    Sand down spot weld flanges to bare metal on both sides.

12. Remove grinding dust and drill chips.
13. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas G and F).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.
