Preparing TAILLAMP Reinforcement - Ar63.20-P-2011-02LWO
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA |
Model 238
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.
The following repair materials must be used:
- Zinc dust paint

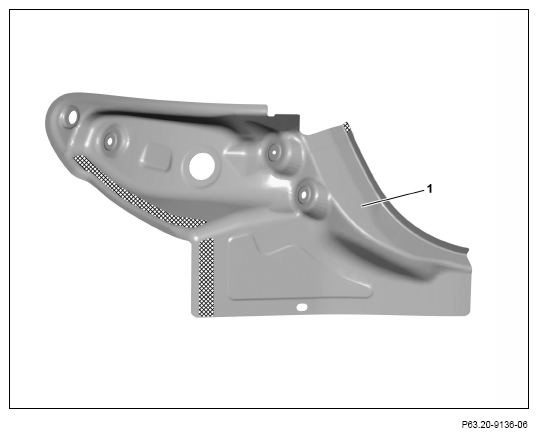

- Grind mating surfaces on rear lamp reinforcement (1) down to bare metal on both sides in the cross-hatched areas.
- Coat insides of spot weld flanges with zinc dust paint.
