Install C-Pillar - Ar63.20-P-0500-03LWO
Model 238
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-01A | White sealing compound, 310 ml, DBL 6069.20 | A 001 989 63 20 |
| BR00.45-Z-1012-13A | Blind rivet Y2 6.5 x 12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) | A 004 990 16 97 |
| BR00.45-Z-1035-13A | Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) | A 000 991 76 32 |
| BR00.45-Z-1043-13A | Countersunk-head blind rivet Z1 6.4 x 14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) | A 000 991 82 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
The next steps are shown on the left side of the vehicle and must be performed in a similar manner on the right side of the vehicle in the event of damage.
- Install C-pillar (1), fit, and fix in place.

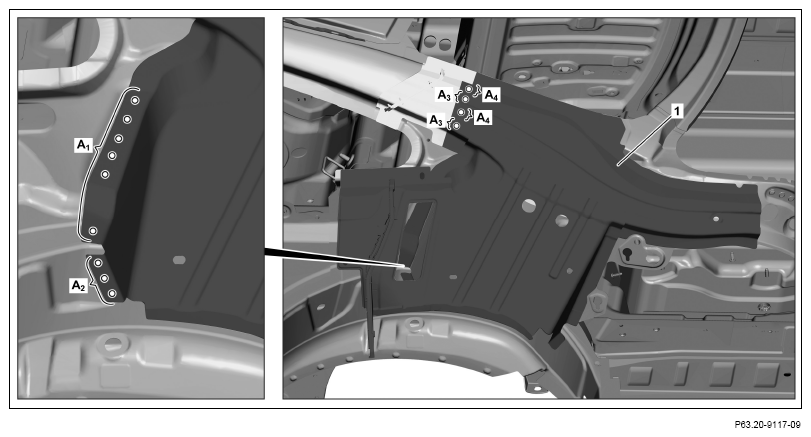

- Drill rivet holes in C-pillar (1) with Ø 6.7 mm bit (areas A1
, A2
and A4
).
Drill rivet holes from inside through present holes in body (area A1).
Drill rivet holes from bottom through present holes in body (area A2 ).
- Drill rivet holes in C-pillar (1) with Ø 6.7 mm bit and countersink (areas A3 ).
- Remove C-pillar (1).
- Drill rivet holes in C-pillar (1) and deburr on body on both sides.
- Remove drill chips.
- Coat insides of riveted joints with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint (areas A3 and A4 ).
Otherwise adhesion problems may occur.

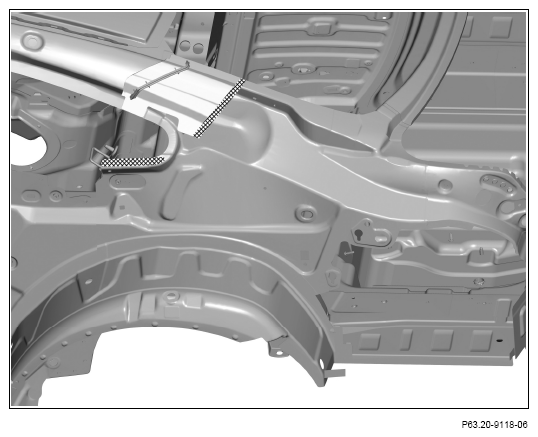

- Apply 2-component adhesive to body in cross-hatched areas.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

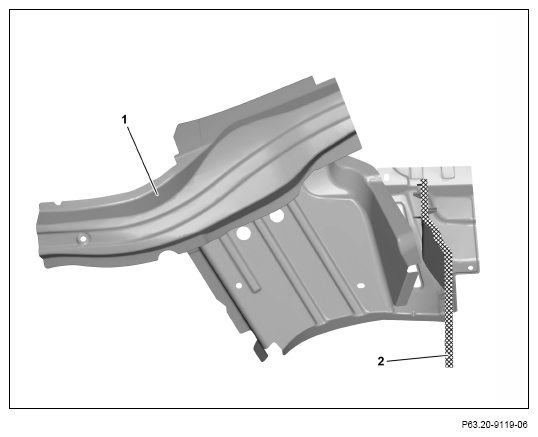

- Clean contact surfaces of foam part (2) on C-pillar (1), apply sealant and insert foam part (2).
- Apply sealant to foam part (2) of C-pillar (1) in crosshatched area.
- Install C-pillar (1) and fix in place.
- Rivet C-pillar (1) with rivet Ø 6.4x12 (area B3
).
Clamping range 1.50 mm
- Rivet C-pillar (1) with Ø 6.5x12.5 rivet (areas B1
, B2
and B4
).
Clamping range 2.72 mm to 3.31 mm

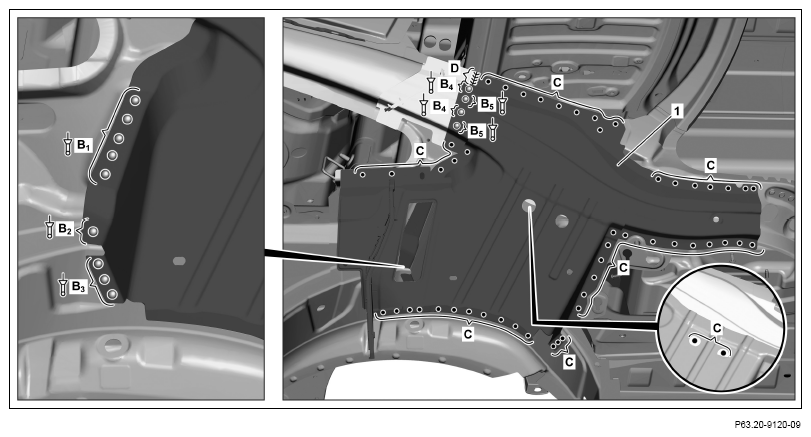

- Rivet C-pillar (1) with countersunk-heat rivet Ø 6.4x14 (areas B5
).
Clamping range 3.00 mm
- C-pillar (1)
(areas C).
- C-pillar (1)
(area D).
Perform inert gas welding at intervals and allow welding areas to cool down in between. This reduces heat distortion.
- Grind inert gas welds on C-pillar (1) down flat (area D).
- Clean weld joints that are no longer accessible after rear fender is installed, and coat with zinc dust paint.
