Install And Weld In B-Pillar - Ar63.20-P-1350-06LWO

Model 238.3

Fig 1: Side Portal Frame (210 589 17 23 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	White sealing compound, 310 ml, DBL 6069.20	A 001 989 63 20
BR00.45-Z-1162-02A	Parts kit for 2-component adhesive for body	A 012 989 17 71

The following operation steps are shown on the left side of the vehicle. This must be similarly performed for damage to the right side of the vehicle.

Courtesy of MERCEDES-BENZ USA

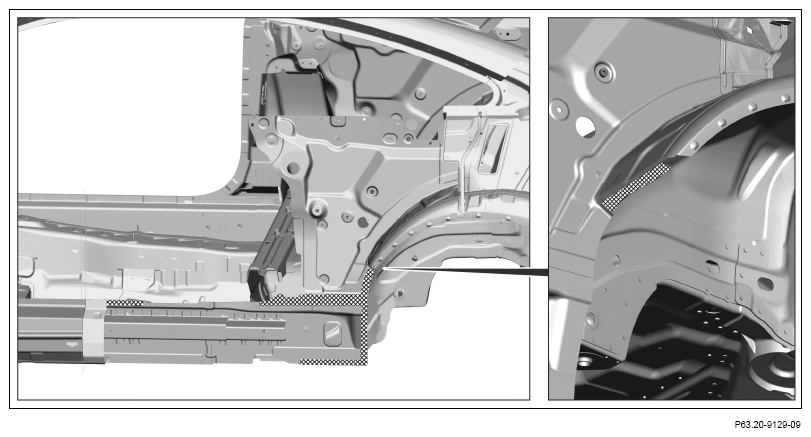

Apply 2-component adhesive to body in crosshatched areas.
Observe pretreatment of bonding surfaces and the manufacturer's specifications for the curing and processing time of 2-component adhesive.

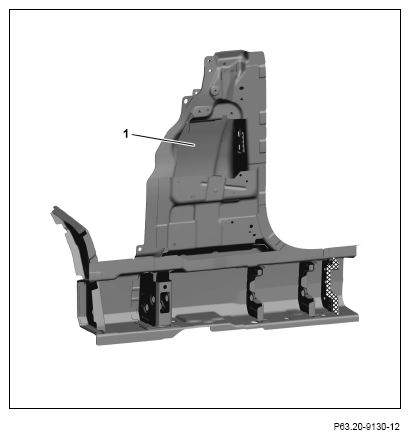

Apply sealant to B-pillar (1) in crosshatched area.

Courtesy of MERCEDES-BENZ USA
Install fit and fix in place B-pillar (1) using portal straightener.
Use spacers.

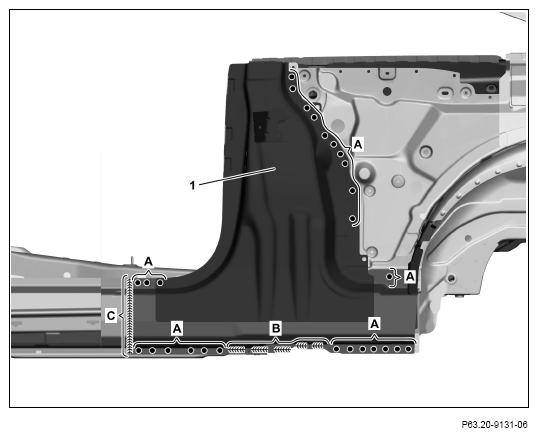

B-pillar (1) (area A).
B-pillar (1) (areas B and C).
Perform inert gas welding at intervals and allow welding area to cool down in between. Heat distortion can thus be reduced.
Surface-grind inert gas weld (area C).
Only surface-grind at bead areas and contact surfaces of rear fender.

Courtesy of MERCEDES-BENZ USA

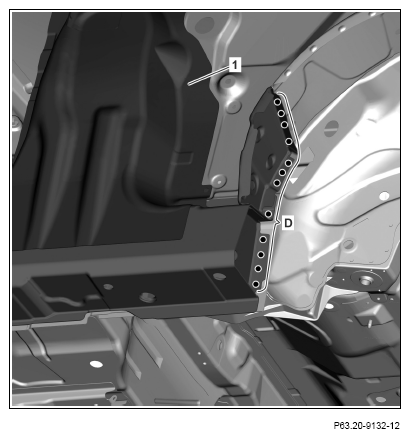

B-pillar (1) (area D).

Courtesy of MERCEDES-BENZ USA
B-pillar (1) (area E).
Perform inert gas welding at intervals and allow welding area to cool down in between. Heat distortion can thus be reduced.
Remove portal bracket.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
Install, fit and fix in place support (3).
Support (3) (area F).
Perform inert gas welding at intervals and allow welding area to cool down in between. Heat distortion can thus be reduced.
