Preparing Rear Part Of Roof Paneling For Installation - Ar65.10-P-5760-02LWO
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | General information on body repair | AH60.00-P-0001-01KOA | |
| Notice | Pretreatment of bonding surfaces | AH60.00-P-0008-01SX |
Model 238.3
with code 413 (Panoramic sliding sunroof/glass roof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
The following repair materials must be used:
- Zinc dust paint

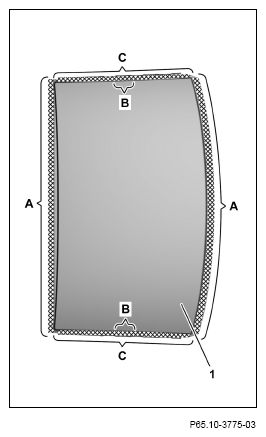

- Grind mating surfaces down to bare metal in cross-hatched areas on both sides (areas A and B).
- Grind mating surfaces on underside down to bare metal in cross-hatched areas (areas C).
- Remove grinding dust.
- Coat insides of spot weld flanges with zinc dust paint.
Do not coat bonding surfaces with zinc dust paint (areas C).
Otherwise adhesion problems may occur.
Observe pretreatment of bonding surfaces.
