Installing Rear Section Of Roof Paneling - Ar65.10-P-5760-03LWO

	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	General information on body repair		AH60.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Measures for preventing damage to components when performing electric welding and soldering work		AH60.00-P-0001-02A
Notice	Pretreatment of bonding surfaces		AH60.00-P-0008-01SX

Model 238.3

with code 413 (Panoramic sliding sunroof/glass roof)

Fig 1: Set Of Spacer Blocks (216 589 02 23 00)

Courtesy of MERCEDES-BENZ USA

The following repair materials and special tools must be used:

• Antiflutter adhesive
• Spacers
• Apply 2-component adhesive

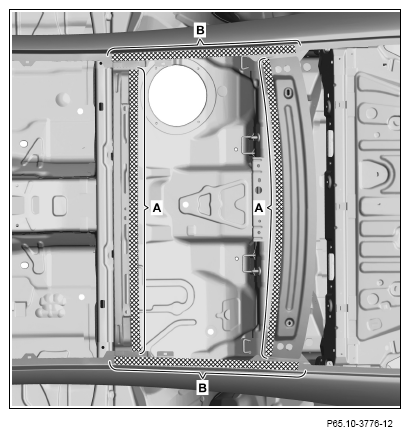

1. Apply anti flutter adhesive on body in cross-hatched areas (areas A).

   Observe processing specification for relining adhesive.

2. Apply 2-component adhesive to body in crosshatched areas (areas B).

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

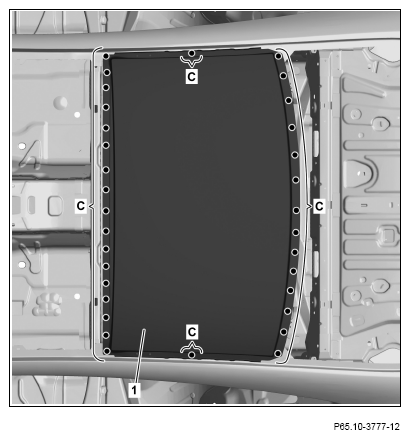

3. Install roof paneling rear section (1), fit with spacer blocks and fix in place.

   When removing, observe specified dimensions and positions of spacer blocks.

4. Roof paneling rear section (1) (areas C).

Courtesy of MERCEDES-BENZ USA
