Prepare Upper Front Longitudinal Member - Ar62.20-P-1286-02LWO

Model 238

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

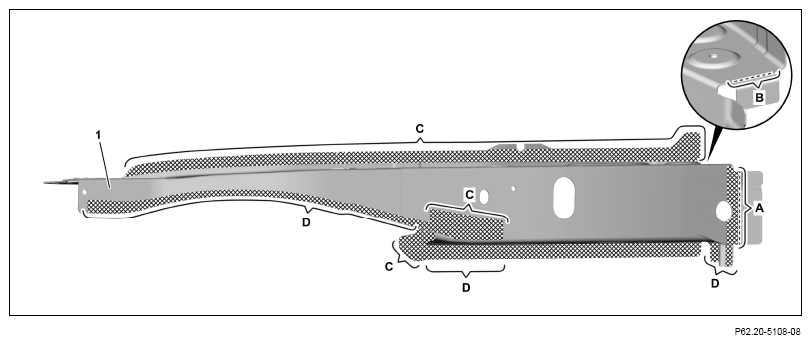

1. Mark separating point on upper front longitudinal member (1) and cut (area A).

   Transfer separation point from vehicle (area A).

2. Mark separating point on upper front longitudinal member (1) and cut (area B).

   Separate sheet metal flange flush with upper front longitudinal member (1) (area B) for overlapping.

3. Grind mating surfaces on upper front longitudinal member (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

   Grind upper front longitudinal member (1) down to bare metal at inside (area D).

4. Remove grinding dust.
5. Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas C and D).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

6. Mark separating point on reinforcement (3) and cut (area E).

   Transfer separation point from vehicle.

7. Grind mating surfaces on reinforcement (3) down to bare metal in the crosshatched areas.
8. Remove grinding dust.

   Observe pretreatment of bonding surfaces (areas F).

   Courtesy of MERCEDES-BENZ USA

9. Grind mating surfaces on reinforcement (3) down to bare metal in the crosshatched areas.
10. Remove grinding dust.

    Observe pretreatment of bonding surfaces.

    Reinforcement (3), inside

    Courtesy of MERCEDES-BENZ USA

11. Sand down mating surfaces on strut (2) to bare metal in crosshatched areas.
12. Remove grinding dust.

    Observe pretreatment of bonding surfaces.

    Inside of strut (2)

    Courtesy of MERCEDES-BENZ USA

13. Grind bracket (4) down to bare metal in crosshatched area.
14. Remove grinding dust.

    Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
