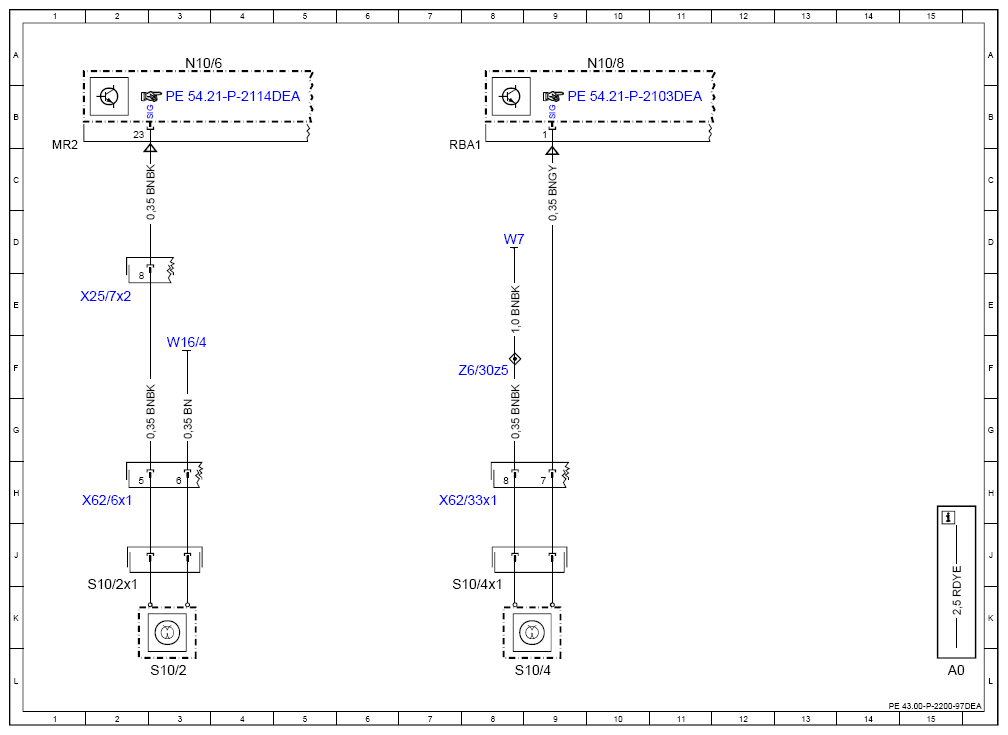

Wiring Diagram Brake Wear Indicator - PE43.00-P-2200-97DEA
Model 238 as of model year 2021 S10/2 (Front right brake wear sensor), S10/4 (Rear right brake wear sensor)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| N10/6 | Front SAM control unit | 3A |
| N10/8 | Rear SAM control unit | 10A |
| S10/2 | Right front brake wear sensor | 3L |
| S10/2x1 | Right front brake wear sensor electrical connector | 2K |
| S10/4 | Right rear brake wear sensor | 9L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 8K |
| W16/4 | Right major assembly compartment ground point | 3F |
| W7 | Right wheel house trunk ground point | 8D |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 2E |
| X62/33x1 | Rear axle electrical connector, right distributor | 8H |
| X62/6x1 | Front axle electrical connector, right distributor | 2H |
| Z6/30z5 | Circuit 31 connector sleeve | 8F |
