Remove/Install Brake Light Switch - AR42.10-P-0045LWO
Model 238
| Remove | |||
| 1 | Remove cover under the instrument panel on the driver-side | AR68.10-P-1501LWE | |
| 2 | Detach electrical connector from brake light switch (S91) | ||
| 3 | Pull out brake light switch (S9/1) | ||

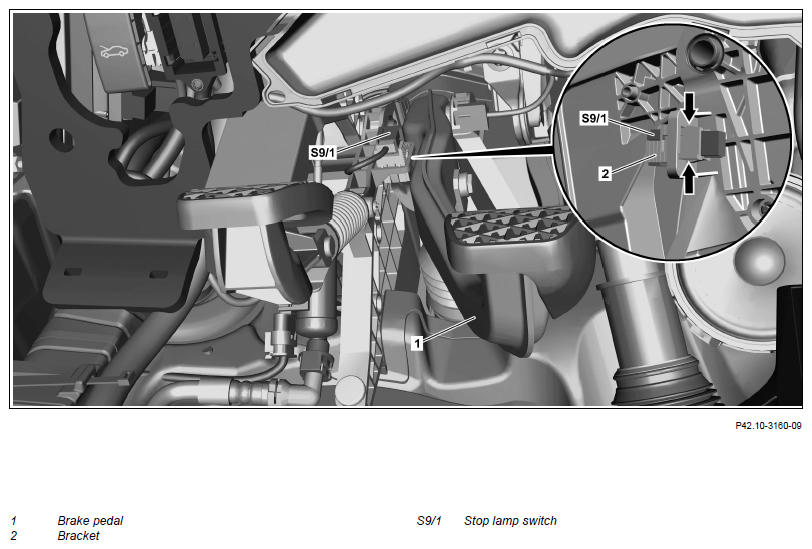

| 4 | Press catches together (arrows) and remove bracket (2) | ||
| Install | |||
| 5 | Operate brake pedal (1) and insert brake light switch (S9/1) with bracket (2) | ||
| 6 | Release brake pedal (1) and pull back | ||
| 7 | Connect electrical connector at brake light switch (S9/1) | ||
| 8 | Install cover below driver-side instrument panel | AR68.10-P-1501LWE |
