Remove/Install Brake Fluid Reservoir - AR42.10-P-0301LWO
Model 238
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Topical note | Brake fluid notes | AH42.50-P-0001-01A | |
| Topical note | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Remove/install | |||
| 1 | Remove cover above brake fluid reservoir (1) | ||
| 2 | Release and detach electrical connection (2) from brake fluid level switch | ||
| 3 | Unscrew cap (3) and remove sieve from brake fluid reservoir (1) | ||
| 4 | Suction off brake fluid from brake fluid reservoir (1) | ||
| 5 | Detach hose from brake fluid reservoir (1) and seal openings using suitable stop plugs | Model 238 with transmission 716 Protect painted surfaces from brake fluid. Otherwise the vehicle paint can be damaged. |

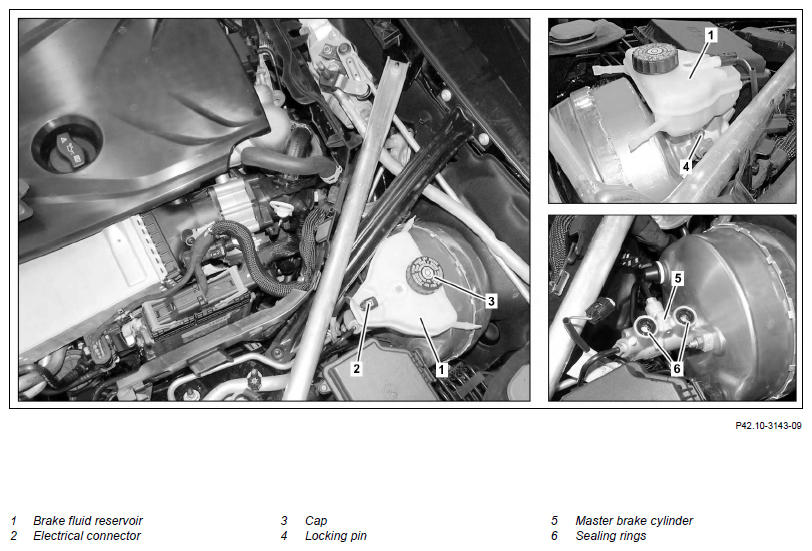

Fig 1 |
| 6 | Remove locking pin (4) | ||
| 7 | Pull brake fluid reservoir (1) out of master brake cylinder (5) and seal connections using suitable stop plugs | Collect brake fluid which runs out with an absorbent rag. Otherwise damage can occur to the vehicle paint. |
Fig 1 |
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Correct fluid level in brake fluid reservoir (1) | ||
| AP42.10-P-4210B | |||
| 10 | Check area around brake fluid reservoir (1) for leaktightness |
