Remove/Check/Install Rear Axle Brake Pads - AR42.10-P-1710LWO
Model 238
Shown on right side of vehicle
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Brake fluid notes | AH42.50-P-0001-01A | |
| Notice | Notes on repairs to brake system | AH42.00-P-0003-01A | |
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Remove | |||
| 1 | Detach brake caliper and secure free of tension to vehicle with lines still connected | Do not subject the brake hose and electrical line to tension and do not kink them. The brake hose and the electrical line can otherwise be damaged. |
AR42.10-P-0080LWO |

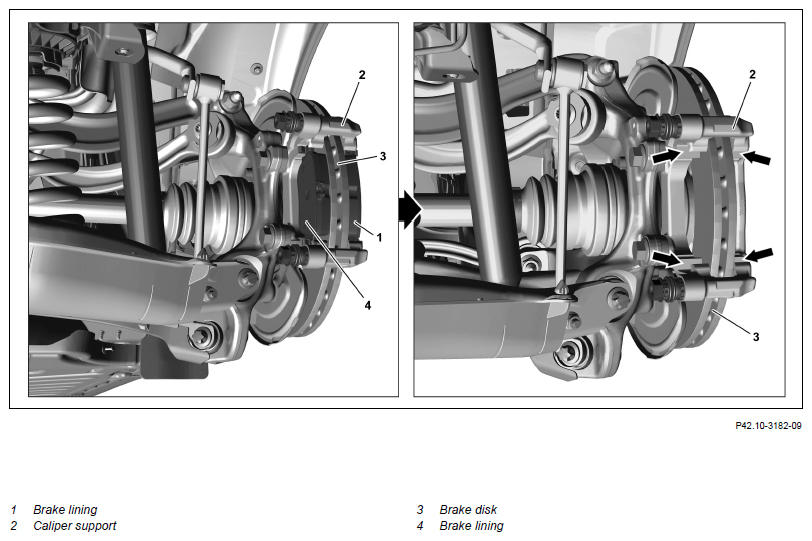

| 2 | Remove brakepads (1, 4) from brake caliper supports (2) | ||
| 3 | Pull brakepad wear sensor out of backing plate of brakepad (4) | When replacing brakepad (4) or rear right brakepad wear sensor. | |
| Check | |||
| 4 | Check brakepads (1, 4) for wear and condition | ||
| If a problem arises ↓ |
AP42.10-P-4252F | ||
| Replace brakepads (1, 4). |
|||
| Clean | |||
| 5 | Clean contact surfaces of brakepads (1, 4) on brake caliper support (2) (arrows) and on brake caliper | Do not use sharp-edged or pointed objects. Otherwise, the brake caliper, the dust boot on the brake piston or the brake caliper support (2) may be damaged. Assembly cleaner |
*BR00.45-Z-1028-04A |
| Install | |||
| 6 | Insert rear brakepad wear sensor onto backing plate of brakepad (4) | When replacing brakepad (4) or rear right brakepad wear sensor. | |
| 7 | Apply brake paste to brake caliper and to brake caliper support (2) | AR42.10-P-0163-01LW | |
| Lubricant paste | *BR00.45-Z-1130-06A | ||
| Brake paste, Varybond | *BR00.45-Z-1072-06A | ||
| 8 | Insert brake linings (1, 4) | ||
| 9 | Install brake caliper | AR42.10-P-0080LWO |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
| BR00.45-Z-1072-06A | Brake paste, Varybond | A 001 989 94 51 |
| BR00.45-Z-1130-06A | Lubricant paste | A 000 989 98 00 09 |
