Carrying Out Bleeding Operation - AR42.10-P-0010-02LWE

Model 213

Model 238

	Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
Topical note	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Topical note	Brake fluid notes		AH42.50-P-0001-01A
Topical note	Notes on repairs to brake system		AH42.00-P-0003-01A
	000 588 01 82 00 Filling unit		WS25.00-P-0016B

REAR AXLE BRAKE CALIPER

Number	Designation		Model 213	Model 238
BA42.10-P-1002-12W	Bleed screw to brake caliper	Nm	14	14

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 213 (except 213.061/261)	Model 213.061/261
BA42.10-P-1003-10X	Bleed screw at brake caliper	Nm	14	14

FRONT AXLE BRAKE CALIPER

Number	Designation		Model 238 (except 238.361/461)	Model 238.361/461
BA42.10-P-1003-10X	Bleed screw at brake caliper	Nm	14	14

Courtesy of MERCEDES-BENZ USA

Shown on model 213

Adjust bleeding pressure at filling unit to 2.0 bar.

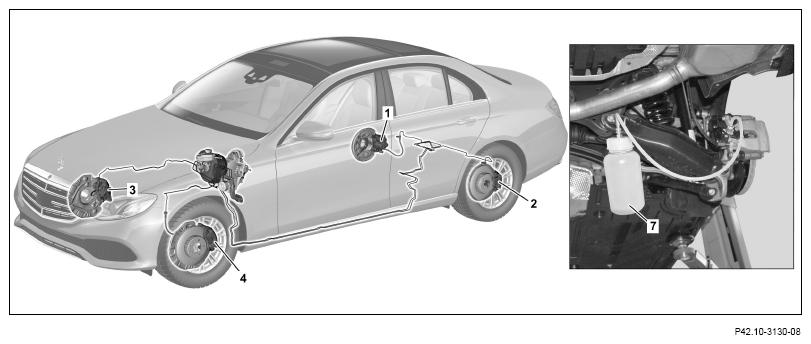

Remove caps for bleed screws on brake calipers (1, 2, 3, 4).
Model 213

with code B07 (Ceramic brake system)

Two bleed screws are located on the front brake calipers (3, 4).
Connect bleed hose of bleed bottle (7) to bleed screw of brake caliper (1).
Open bleed screw.
5
1. 5.1 To bleed the hydraulic system of the brake system after the hydraulic system has been opened for repair purposes.
  Fully depress brake pedal several times in succession until new brake fluid exits free of bubbles at the bleed screw.

  To bleeding the brake system correctly it is absolutely essential to pump the brake pedal throughout the entire bleeding process.

  Otherwise brake system malfunctions and a failure of the brake system can occur due to remaining residual air.

  Do not pump the brake pedal in a jerking manner but instead release it slowly.

  Otherwise air can be drawn in.

  The bleed screw can remain open throughout the entire pumping procedure. Required total quantity of brake fluid: Approx. 1.5 l.
2. 5.2 When replacing the brake fluid, if the hydraulic system for the brake system was not opened beforehand for repair purposes.
  Keep bleed screw open until the brake fluid flows out.

  Pumping of the brake pedal is not necessary.

  Required total quantity of brake fluid: Approx. 0.75 l.
Close bleed screw.
Disconnect bleed hose of bleed bottle (7) from bleed screw (1) of brake caliper.
Repeat operation steps 3 to 7 successively on the brake calipers (2, 3, 4).
Model 213

with code B07 (Ceramic brake system)

On the brake calipers (3, 4) open the vent screw that is located right next to the brake hose first. Then open the outer vent screw.
Fit caps for bleed screws on brake calipers (1, 2, 3, 4).
