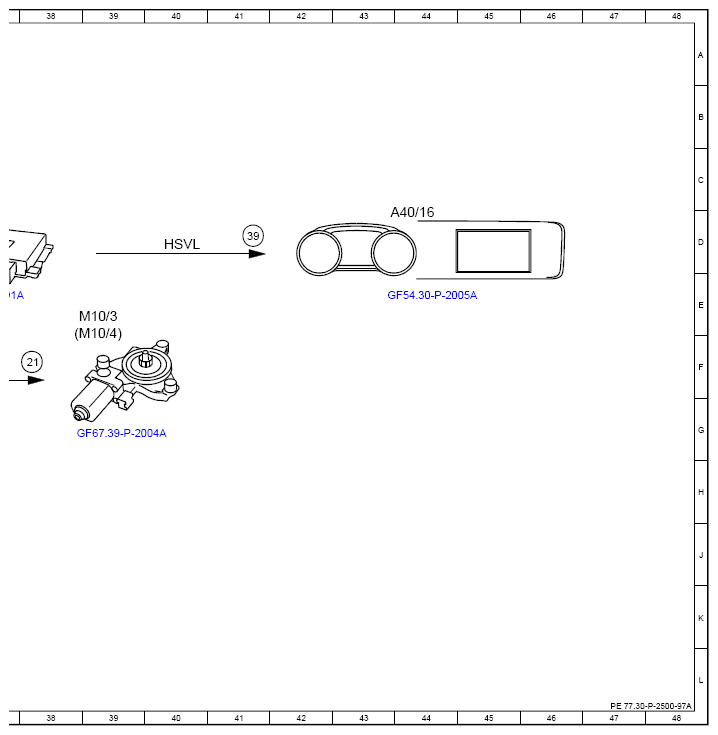

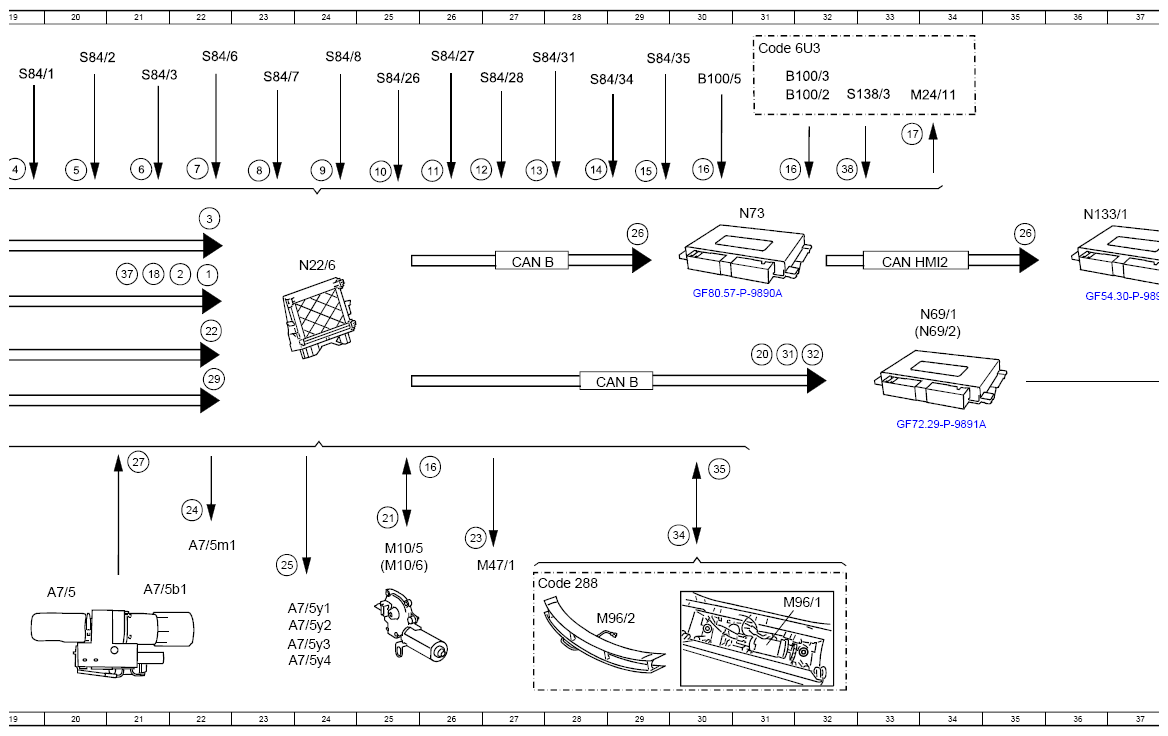

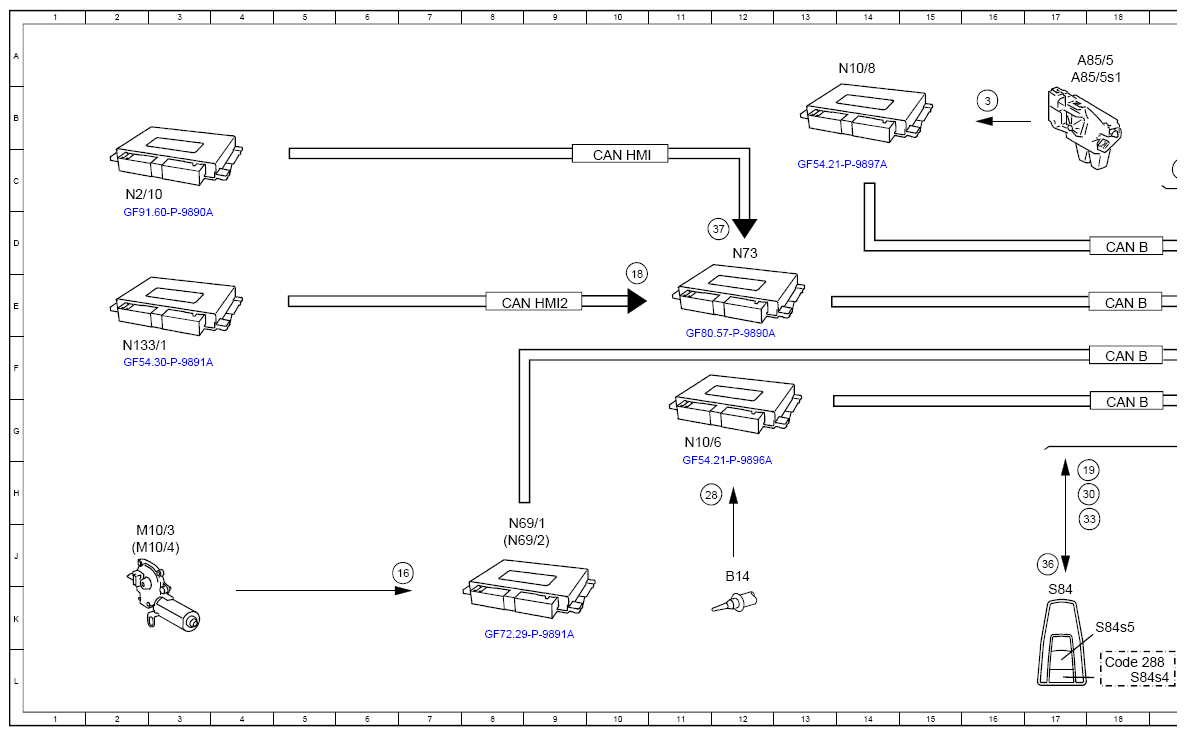

Function Schematic For Opening/Closing Soft Top - PE77.30-P-2500-97A
Model 238.4 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | terminal 15, status | 22D |
| 10 | Top left limit switch, top left, status | 25C |
| 11 | Limit switch tonneau cover locked left, status | 26C |
| 12 | Limit switch tonneau cover locked right, status | 26C |
| 13 | Top down limit switch, status | 27C |
| 14 | Top lock open limit switch, status | 28C |
| 15 | Top lock limit switch locked, status | 29C |
| 16 | Hall sensor, signal | 30C |
| 16 | Hall sensor, signal | 32C |
| 16 | Hall sensor, signal | 7J |
| 16 | Hall sensor, signal | 26G |
| 17 | Electric motor trunk partition, control | 33B |
| 18 | Speed, Signal | 10E |
| 18 | Speed, Signal | 21E |
| 19 | Top control switch, status | 18H |
| 2 | terminal 50, status | 22E |
| 20 | Short stroke position: approach, requirement | 31F |
| 21 | Window regulator motor, control | 38F |
| 21 | Window regulator motor, control | 25G |
| 22 | Short stroke position: approached, signal | 22E |
| 23 | Electric motor for convertible top lock, front, activation | 27H |
| 24 | Electric motor hydraulic unit convertible top control, activation | 27H |
| 25 | Solenoid valve, control | 24Y |
| 26 | Top messages instrument cluster, request | 29D |
| 26 | Top messages instrument cluster, request | 35D |
| 27 | Temperature sensor hydraulic unit convertible top control, signal | 21G |
| 28 | Outside temperature sensor, signal | 11H |
| 29 | Outside temperature, signal | 22F |
| 3 | Trunk Lid/Tailgate Lock Main Latch Switch Status | 22D |
| 3 | Trunk Lid/Tailgate Lock Main Latch Switch Status | 16B |
| 30 | Switch central control power windows, status | 17H |
| 31 | Convenience operation, status | 31F |
| 32 | Comfort control direction, signal | 32F |
| 33 | Wind deflector and wind deflector button, status | 18G |
| 34 | Servomotors, control | 30Y |
| 35 | Limit switch servomotor, status | 30H |
| 36 | Status LEDs button wind deflector and wind deflector, control | 17J |
| 37 | roll bar status | 21C |
| 37 | roll bar status | 12D |
| 38 | Trunk Partition Switch Status | 32C |
| 39 | Instrument cluster, message | 41D |
| 4 | Top switch locked left, status | 19C |
| 5 | Top switch locked right status | 20C |
| 6 | Up limit switch, status | 21C |
| 7 | Limit switch for fabric holding bar down locked left, status | 22C |
| 8 | Limit switch for fabric holding bar down locked right, status | 23C |
| 9 | Upper limit switch, status | 24C |
| A40/16 | Display group head unit/instrument cluster | 44D |
| A7/5 | Top control hydraulic unit | 20K |
| A7/5b1 | Temperature sensor hydraulic unit convertible top control | 21K |
| A7/5m1 | Electric motor hydraulic unit convertible top control | 22J |
| A7/5y1 | Solenoid valve (PCS1) | 24K |
| A7/5y2 | Solenoid valve (TCC) | 24K |
| A7/5y3 | Solenoid valve 3 | 24K |
| A7/5y4 | Solenoid valve (PCS2) | 24L |
| A85/5 | Trunk lid lock | 17A |
| A85/5s1 | Main latch switch trunk lid lock | 17A |
| B100/2 | Hall sensor trunk partition left | 32B |
| B100/3 | Hall sensor trunk partition right | 32A |
| B100/5 | Hall sensor trunk partition closed | 30A |
| B14 | Outside temperature sensor | 12J |
| CAN B | Interior CAN | 18G |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 18D |
| CAN B | Interior CAN | 29F |
| CAN B | Interior CAN | 27D |
| CAN HMI | User Interface CAN | 10C |
| CAN HMI2 | User Interface-CAN 2 | 8E |
| CAN HMI2 | User interface CAN 2 | 33D |
| Code 288 | Wind deflector for convertible | 18L |
| Code 288 | Wind deflector for convertible | 27K |
| Code 6U3 | Automatic trunk partition | 31A |
| HSVL | High-Speed-Video-Link | 40D |
| M10/3 | Window motor front door left | 2Y |
| M10/3 | Window motor front door left | 39E |
| M10/4 | Window motor front door right | 2Y |
| M10/4 | Window motor front door right | 39F |
| M10/5 | Rear left power window motor | 25Y |
| M10/6 | Rear right window motor | 25Y |
| M24/11 | Electric motor trunk divider | 34B |
| M47/1 | Electric motor for the top closure at the front | 27J |
| M96/1 | Wind deflector motor | 31K |
| M96/2 | Wind deflector actuator | 28K |
| N10/6 | Front SAM control unit | 11G |
| N10/8 | Rear SAM control unit | 14A |
| N133/1 | Instrument cluster control unit | 2F |
| N133/1 | Instrument cluster control unit | 36D |
| N2/10 | Supplemental Restraint System control unit | 2C |
| N22/6 | Rear control unit | 24D |
| N69/1 | Control unit front door left | 8J |
| N69/1 | Control unit front door left | 34E |
| N69/2 | Right front door control unit | 8J |
| N69/2 | Right front door control unit | 34E |
| N73 | Electronic ignition lock control unit | 12D |
| N73 | Electronic ignition lock control unit | 31D |
| S138/3 | Trunk Partition Switch | 33B |
| S84 | Top control switch | 17K |
| S84/1 | Top switch locked left | 19A |
| S84/2 | Limit switch convertible top locked right | 20A |
| S84/26 | Top left limit switch top compartment lid | 25A |
| S84/27 | Limit switch for convertible top compartment lid locked left | 26A |
| S84/28 | Limit switch for convertible top compartment lid locked right | 27A |
| S84/3 | Top up limit switch | 21A |
| S84/31 | Top down limit switch | 27A |
| S84/34 | Top lock open limit switch | 28A |
| S84/35 | Top lock limit switch locked | 29A |
| S84/6 | Limit switch for fabric holding bar down locked left | 22A |
| S84/7 | Limit switch fabric holding bar down locked right | 23A |
| S84/8 | Upper limit switch for fabric holder | 24A |
| S84s4 | Wind deflector and wind deflector button | 18L |
| S84s5 | Switch central control power windows | 18K |
