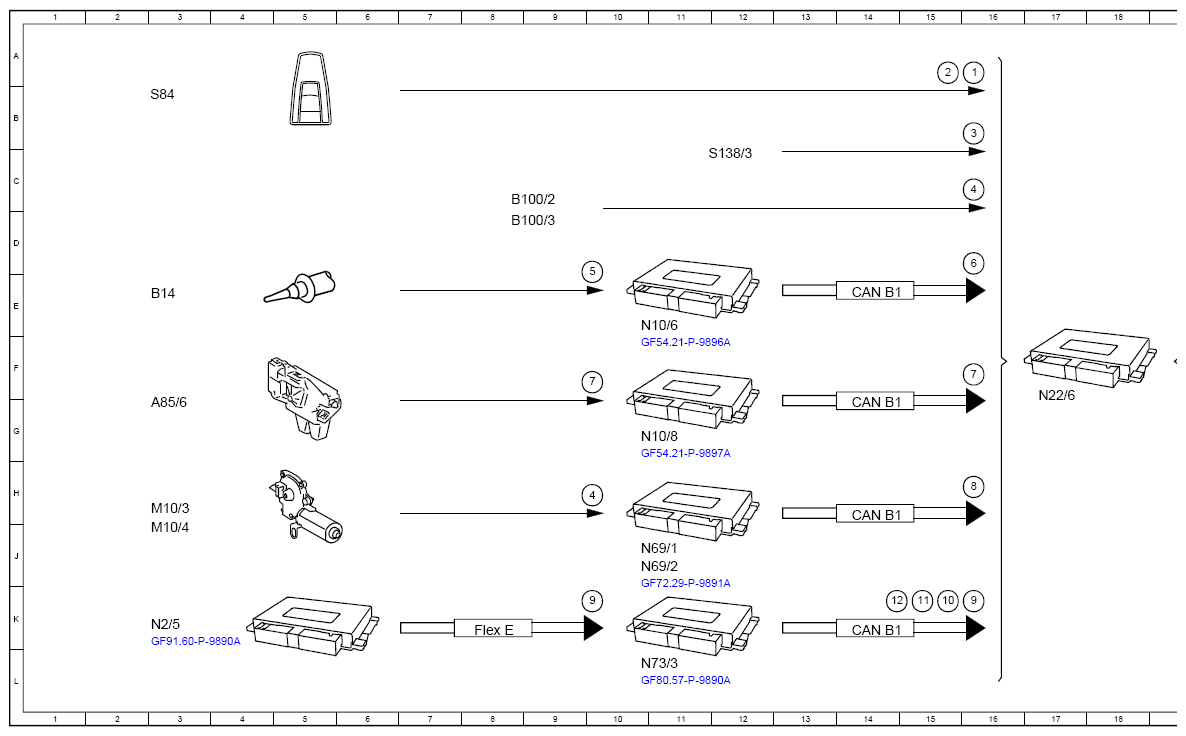

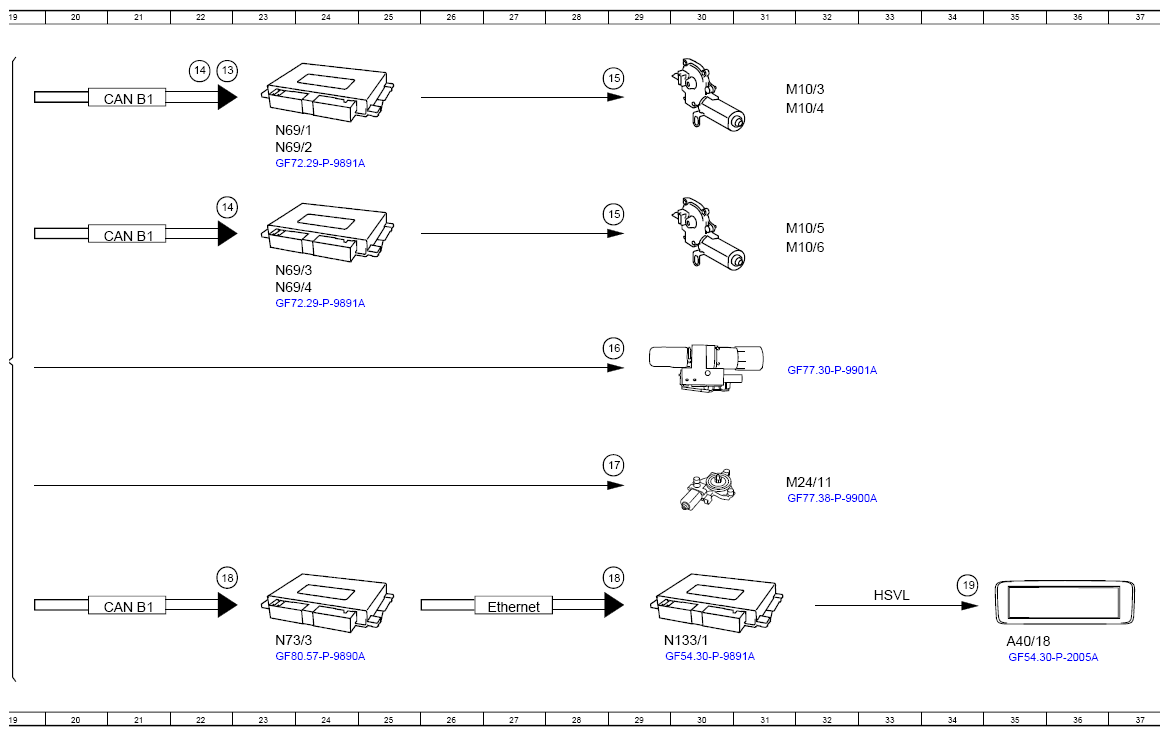

(Function Schematic For Opening/Closing Soft Top - PE77.30-P-2500-97B)
Model 232
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Soft top control switch, status | 16A |
| 10 | Vehicle speed, signal | 15K |
| 11 | Circuit 15, status | 15K |
| 12 | Circuit 50, status | 14K |
| 13 | Move to short stroke Position:, request | 22A |
| 14 | Convenience feature direction, signal | 22A |
| 14 | Convenience feature direction, signal | 22C |
| 15 | Power window motor, actuation | 29D |
| 15 | Power window motor, actuation | 29A |
| 16 | Soft top control hydraulic unit electric motor, actuation | 29F |
| 17 | Trunk partition electric motor, actuation | 29H |
| 18 | Soft top instrument cluster messages, request | 22J |
| 18 | Soft top instrument cluster messages, request | 29J |
| 19 | Image data, signal | 34J |
| 2 | Power window central operation switch, status | 15A |
| 3 | Trunk partition switch, status | 16B |
| 4 | Hall sensor, signal | 16C |
| 4 | Hall sensor, signal | 10H |
| 5 | Outside temperature sensor, signal | 10E |
| 6 | Outside temperature, signal | 16D |
| 7 | Trunk lid/liftgate lock main catch switch, status | 16F |
| 7 | Trunk lid/liftgate lock main catch switch, status | 10F |
| 8 | At short stroke Position:, signal | 16H |
| 9 | Roll bar, status | 16K |
| 9 | Roll bar, status | 10K |
| A40/18 | Instrument cluster display | 35K |
| A85/6 | Trunk lid/tailgate lock | 3G |
| B100/2 | Left trunk partition Hall sensor | 8C |
| B100/3 | Right trunk partition Hall sensor | 8D |
| B14 | Outside temperature sensor | 3E |
| CAN B1 | CAN 1 for vehicle interior | 14K |
| CAN B1 | CAN 1 for vehicle interior | 14H |
| CAN B1 | CAN 1 for vehicle interior | 14G |
| CAN B1 | CAN 1 for vehicle interior | 14E |
| CAN B1 | CAN 1 for vehicle interior | 21K |
| CAN B1 | CAN 1 for vehicle interior | 21D |
| CAN B1 | CAN 1 for vehicle interior | 21B |
| Ethernet | Ethernet | 27K |
| Flex E | Chassis FlexRay | 8K |
| HSVL | High-speed video link | 33K |
| M10/3 | Left front door power window motor | 3H |
| M10/3 | Left front door power window motor | 31B |
| M10/4 | Right front door power window motor | 3J |
| M10/4 | Right front door power window motor | 31B |
| M10/5 | Left rear door power window motor | 31D |
| M10/6 | Right rear door power window motor | 31D |
| M24/11 | Trunk partition electric motor | 31H |
| N10/6 | Front signal acquisition and actuation module control unit | 10E |
| N10/8 | Rear signal acquisition and actuation module control unit | 10G |
| N133/1 | Instrument cluster control unit | 29K |
| N2/5 | Supplemental restraint system control unit | 3K |
| N22/6 | Rear control unit | 17G |
| N69/1 | Left front door control unit | 10J |
| N69/1 | Left front door control unit | 23B |
| N69/2 | Right front door control unit | 10J |
| N69/2 | Right front door control unit | 23C |
| N69/3 | Left rear door control unit | 23E |
| N69/4 | Right rear door control unit | 23E |
| N73/3 | Electronic ignition switch control unit | 10L |
| N73/3 | Electronic ignition switch control unit | 23K |
| S138/3 | Trunk partition switch | 11C |
| S84 | Soft top control switch | 3B |
