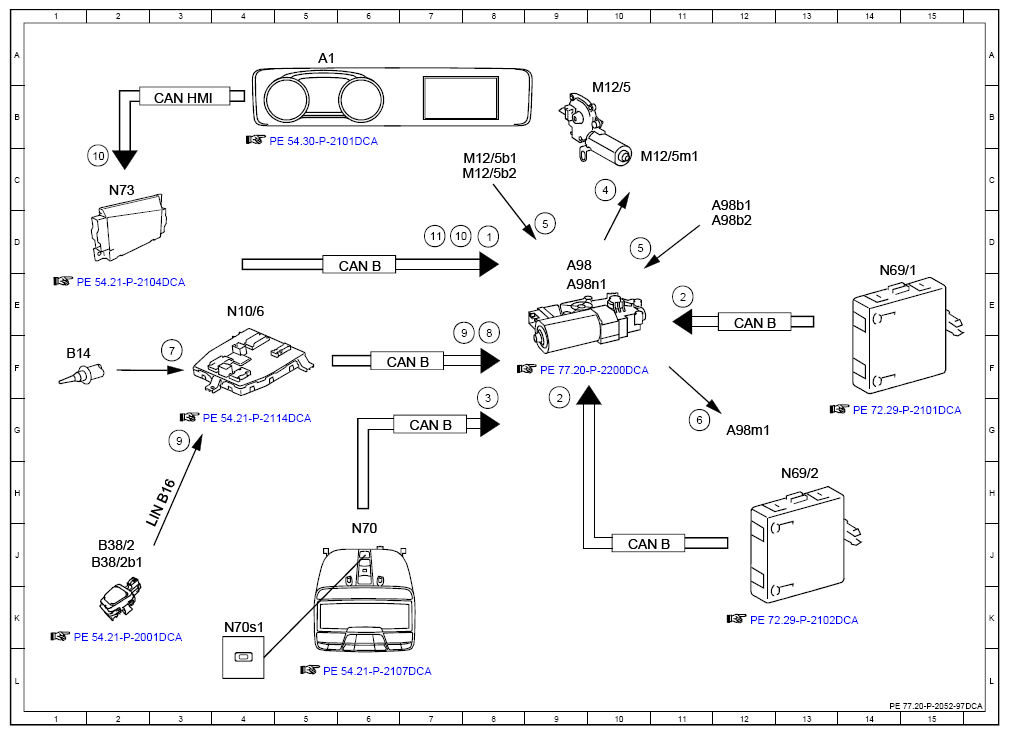

Function Schematic For Electric Panoramic Sliding Roof - PE77.20-P-2052-97DCA
Model 238 up to model year 2021 with code 413 (Panoramic sliding sunroof/glass roof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8D |
| 10 | Vehicle speed, signal | 2C |
| 10 | Vehicle speed, signal | 7D |
| 11 | Central locking, status | 7D |
| 2 | Door rotary tumbler switch, status | 11E |
| 2 | Door rotary tumbler switch, status | 9G |
| 3 | Roof system switch, status | 8G |
| 4 | Panoramic sliding sunroof roller sun blind motor, actuation | 10C |
| 5 | Hall sensors, signal | 9D |
| 5 | Hall sensors, signal | 10D |
| 6 | Panoramic sliding roof motor, actuation | 11G |
| 7 | Outside temperature sensor, signal | 3F |
| 8 | Outside temperature, signal | 8F |
| 9 | Rain closing, request | 3G |
| 9 | Rain closing, request | 8E |
| A1 | Instrument cluster | 5A |
| A98 | Panoramic sliding roof control module | 9D |
| A98b1 | Hall sensor 1, panoramic sliding roof | 11C |
| A98b2 | Hall sensor 2, panoramic sliding roof | 11D |
| A98m1 | Panoramic sliding roof motor | 12G |
| A98n1 | Panoramic sliding roof control unit | 9E |
| B14 | Outside temperature sensor | 1F |
| B38/2 | Rain/light sensor with additional functions | 2J |
| B38/2b1 | Rain sensor | 2J |
| CAN B | Interior CAN | 6F |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 6D |
| CAN B | Interior CAN | 10J |
| CAN B | Interior CAN | 7G |
| CAN HMI | User interface CAN | 3B |
| LIN B16 | Rain and light sensor LIN | 3H |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 10B |
| M12/5b1 | Hall sensor 1, panoramic sliding roof roller sun blind | 8C |
| M12/5b2 | Hall sensor 2, panoramic sliding roof roller sun blind | 8C |
| M12/5m1 | Panoramic sliding roof roller sun blind motor | 11C |
| N10/6 | Front SAM control unit | 4E |
| N69/1 | Left front door control unit | 14E |
| N69/2 | Right front door control unit | 13H |
| N70 | Overhead control panel control unit | 6J |
| N70s1 | Roof switch | 4K |
| N73 | Electronic ignition switch control unit | 2C |
