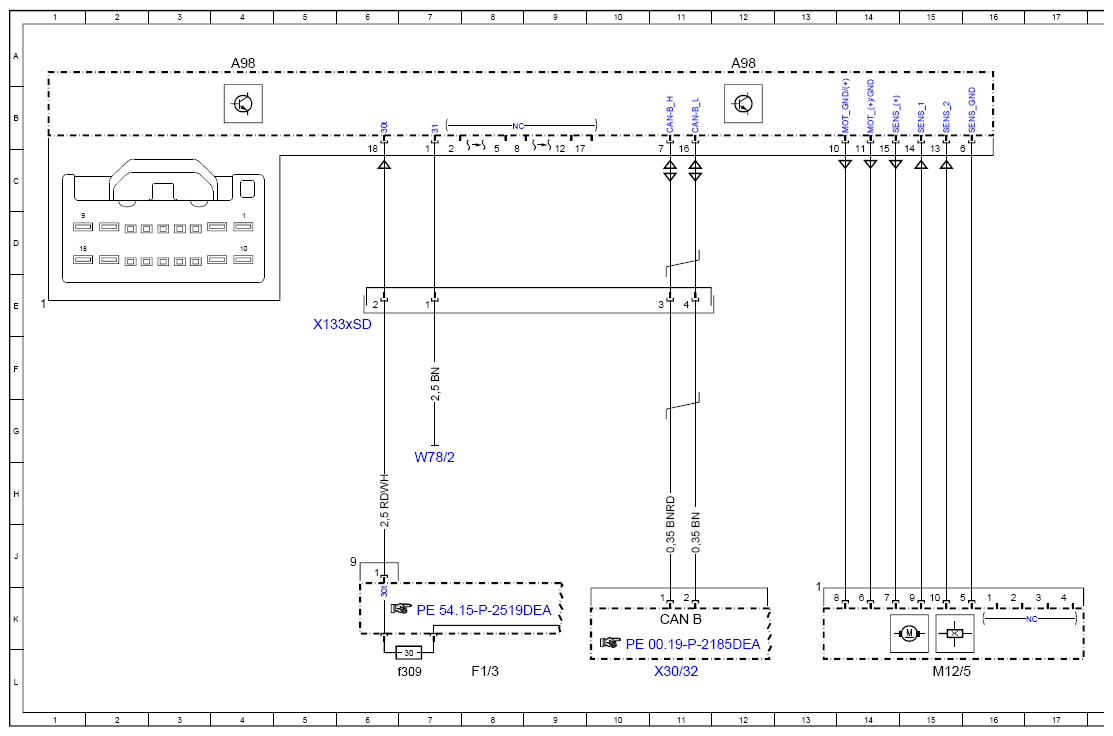

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97DEA
Model 238 as of model year 2021 with code 413 (Panoramic sliding sunroof/glass roof) Control moduleA98
| Code: | Designation: | Position: |
|---|---|---|

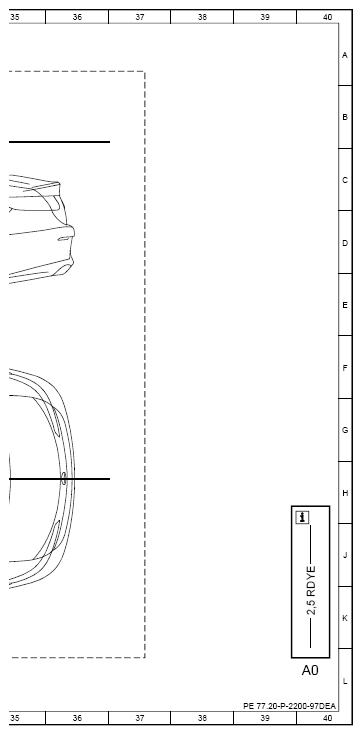

| A0 | Use of wiring diagrams | 40L |

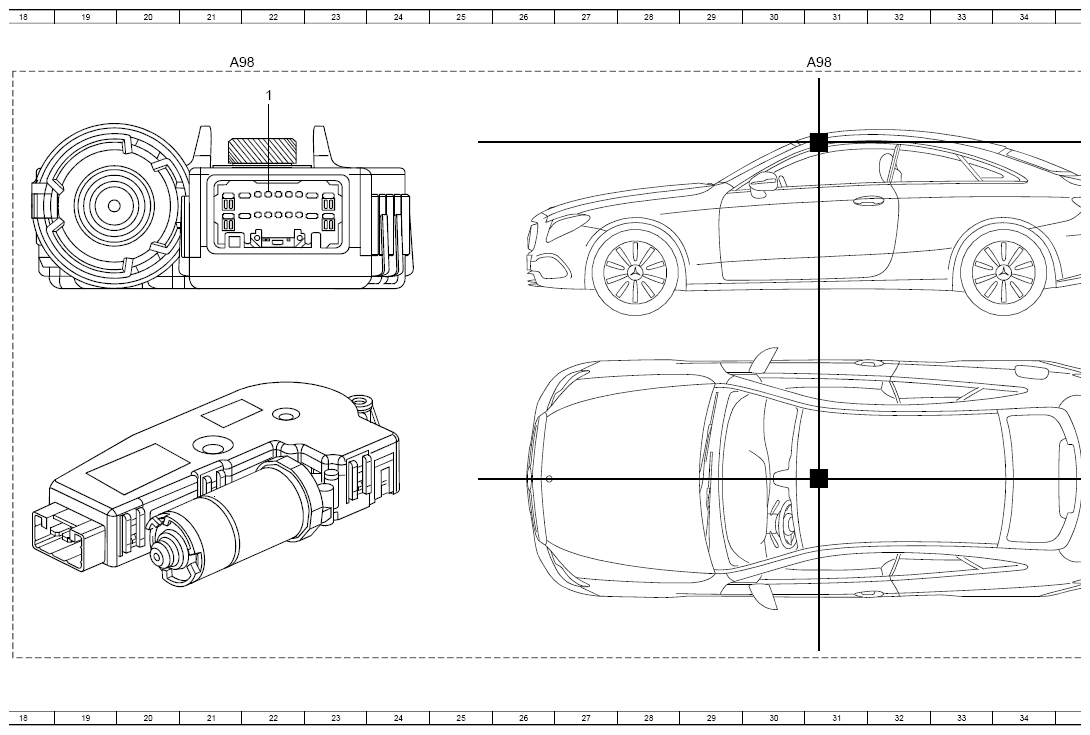

| A98 | Panoramic sliding sunroof control module | 4A |
| A98 | Panoramic sliding sunroof control module | 12A |
| A98 | Panoramic sliding sunroof control module | 21A |
| A98 | Panoramic sliding sunroof control module | 31A |
| CAN B | Interior CAN | 11K |
| F1/3 | Passenger-side A-pillar fuse box | 8L |
| F1/3f309 | Fuse 309 | 7L |
| M12/5 | Panoramic sliding roof roller sun blind drive unit | 15L |
| W78/2 | Roof ground point 2 | 7H |
| X133xSD | Roof/vehicle interior electrical connector | 6E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 11L |
