Remove/Install Trunk Partition Limit Switch - AR77.39-P-3699LWR
Model 238.4

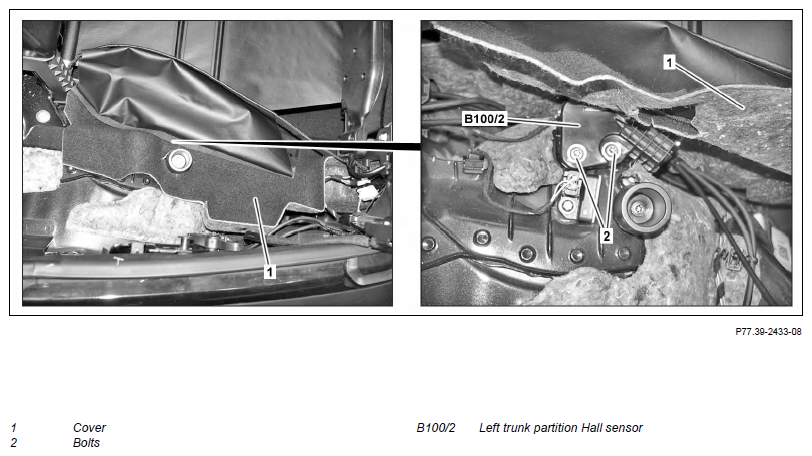

Fig 1: Trunk Partition Limit Switch/Hall sensor Components Location - Model 238.4 (Shown On Left Side)
Shown on left side of vehicle
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 2 | Detach trim (1) so that left trunk separator Hall sensor (B100/2) and right trunk separator Hall sensor (B100/3) can be accessed | ||
| 3 | Unscrew bolts (2) | *BA77.30-P-1001-01F | |

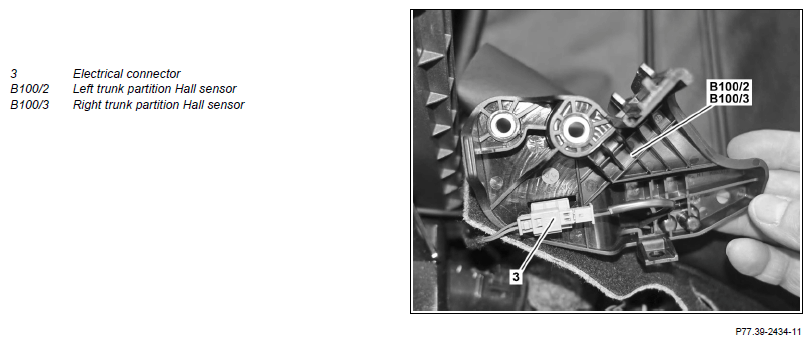

| 4 | Remove trunk separator Hall sensor (B100/2) and/or right trunk separator Hall sensor (B100/3) and invert | ||
| 5 | Disconnect electrical connection (3) | ||
| 6 | Install in the reverse order |
SOFT TOP
| Number | Designation | Model 238.4 | ||
|---|---|---|---|---|
| BA77.30-P-1001-01F | Screw, trunk separator Hall sensor for soft top to body | M6 | Nm | 10 |
